      Installation Guideline

      This section describes how to install openEuler using a CD-ROM. The installation process is the same for other installation modes except the boot option.

      Starting the Installation

      Booting from the CD/DVD-ROM Drive

      Load the ISO image of openEuler from the CD/DVD-ROM drive of the server and restart the server. The procedure is as follows:

      NOTE:
      Before the installation, ensure that the server boots from the CD/DVD-ROM drive preferentially. The following steps describe how to install the openEuler using the virtual CD/DVD-ROM drive on the baseboard management controller (BMC). Installing the openEuler from a physical drive is simple. After the installation starts, the procedure for the physical drive is the same as that of the virtual drive.

      1. On the toolbar, click the icon shown in the following figure.

        Figure 1 Drive icon

        An image dialog box is displayed, as shown in the following figure.

        Figure 2 Image dialog box

      2. Select Image File and then click Browse. The Open dialog box is displayed.

      3. Select the image file and click Open. In the image dialog box, click Connect. If Connect changes to Disconnect, the virtual CD/DVD-ROM drive is connected to the server.

      4. On the toolbar, click the restart icon shown in the following figure to restart the device.

        Figure 3 Restart icon

      Installation Wizard

      A boot menu is displayed after the system is booted using the boot medium. In addition to options for starting the installation program, some other options are available on the boot menu. During system installation, the Test this media & install openEuler 20.03 LTS mode is used by default. Press the arrow keys on the keyboard to change the selection, and press Enter when the desired option is highlighted.

      NOTE:

      • If you do not perform any operations within 1 minute, the system automatically selects the default option Test this media & install openEuler 20.03 LTS and enters the installation page.
      • During PM installation, if you cannot use the arrow keys to select boot options and the system does not respond after you press Enter, click on the BMC page and configure Key & Mouse Reset.

      Figure 4 Installation Wizard

      Installation wizard options are described as follows:

      • Install openEuler 20.03 LTS: Install openEuler on your server in GUI mode.

      • Test this media & install openEuler 20.03 LTS: Default option. Install openEuler on your server in GUI mode. The integrity of the installation medium is checked before the installation program is started.

      • Troubleshooting: Troubleshooting mode, which is used when the system cannot be installed properly. In troubleshooting mode, the following options are available:

        • Install openEuler 20.03-LTS in basic graphics mode: Basic graphics installation mode. In this mode, the video driver is not started before the system starts and runs.
        • Rescue the openEuler system: Rescue mode, which is used to restore the system. In rescue mode, the installation process is printed in the VNC or BMC, and the serial port is unavailable.

      On the installation wizard screen, press e to go to the parameter editing screen of the selected option, and press c to go to the command-line interface (CLI).

      Installation in GUI Mode

      On the installation wizard page, select Test this media & install openEuler 20.03 LTS to enter the GUI installation mode.

      Perform graphical installation operations using a keyboard.

      • Press Tab or Shift+Tab to move between GUI controls (such as buttons, area boxes, and check boxes).
      • Press the up or down arrow key to move a target in the list.
      • Press the left or right arrow key to move between the horizontal toolbar and watch bar.
      • Press the spacebar or Enter to select or delete highlighted options, expand or collapse a drop-down list.
      • Press Alt+a shortcut key (the shortcut key varies for different pages) to select the control where the shortcut key is located. The shortcut key can be highlighted (underlined) by holding down Alt.

      Configuring an Installation Program Language

      After the installation starts, the system will prompt the language that is used during the configuration installation process. English is configured by default, as shown in Figure 5. Configure another language as required.

      Figure 5 Selecting a language

      After configurations, click Continue. The main installation configuration page is displayed.

      If you want to exit the installation, click Exit. The message "Are you sure you want to exit the installation program?" is displayed. Click Yes in the dialog box to go back to the installation wizard page.

      Entering the Installation Page

      After the installation program starts, the main installation configuration page is displayed, as shown in Figure 6. On the page, you can configure the time, language, installation source, network, and storage device.

      Some configuration items are matched with safety symbols. A safety symbol will disappear after the item is configured. Start the installation only when all the safety symbols disappear from the page.

      If you want to exit the installation, click Exit. The message "Are you sure you want to exit the installation program?" is displayed. Click Yes in the dialog box to go back to the installation wizard page.

      Figure 6 Installation summary

      Setting the Keyboard Layout

      On the INSTALLATION SUMMARY page, click KEYBOARD. You can add or delete multiple keyboard layouts in the system.

      • On the left white box, click to select the keyboard layout and click the keyboard under the box.
      • To test the keyboard layout: On the left white box, click to select the keyboard layout, click the inside of the right text box, and enter the text to ensure that the keyboard layout can work properly.

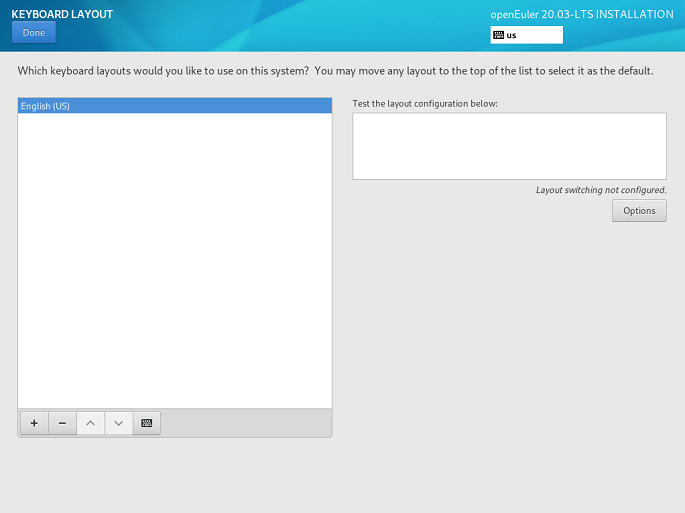

      Figure 7 Setting the keyboard layout

      After the setting is complete, click Done in the upper left corner to go back to the INSTALLATION SUMMARY page.

      Setting a System Language

      On the INSTALLATION SUMMARY page, click LANGUAGE SUPPORT to set the system language, as shown in Figure 8. Set another language as required, such as Chinese.

      NOTE:

      • If you select Chinese, the system does not display Chinese characters after you log in to the system using VNC, because VNC does not support Chinese characters. If you log in to the system in SSH mode, Chinese characters will be displayed.
      • If you select English, there will be no impact.

      Figure 8 Setting a system language

      After the setting is complete, click Done in the upper left corner to go back to the INSTALLATION SUMMARY page.

      Setting Date and Time

      On the INSTALLATION SUMMARY page, click TIME & DATE. On the TIME & DATE page, set the system time zone, date, and time.

      When setting the time zone, you can click a specific city on the map with the mouse, or select a region from the drop-down list of Region or a city from the drop-down list of City at the top of the page, as shown in Figure 9.

      If your city is not displayed on the map or in the drop-down list, select the nearest city in the same time zone.

      NOTE:

      • Before manually setting the time zone, disable the network time synchronization function in the upper right corner.
      • If you want to use the network time, ensure that the network can connect to the remote NTP server. For details about how to set the network, see Setting the Network and Host Name.

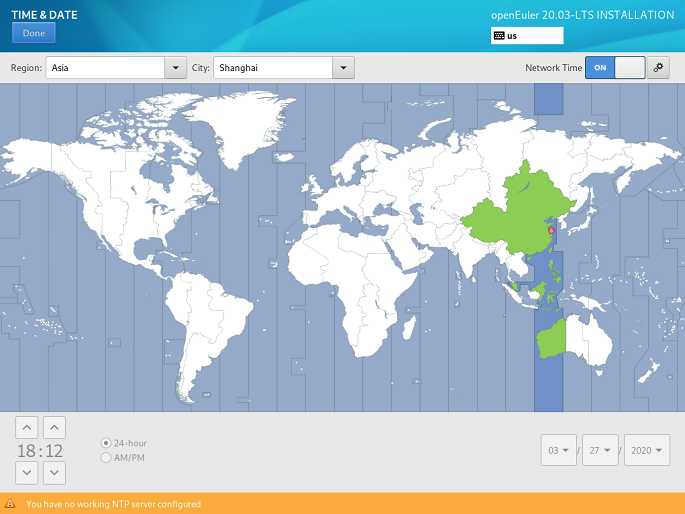

      Figure 9 Setting date and time

      After the setting is complete, click Done in the upper left corner to go back to the INSTALLATION SUMMARY page.

      Setting the Installation Source

      On the INSTALLATION SUMMARY page, click INSTALLATION SOURCE to locate the installation source.

      If you use a CD/DVD-ROM for installation, the installation program automatically detects and displays the installation source information. You can use the default settings. Figure 10 shows an example.

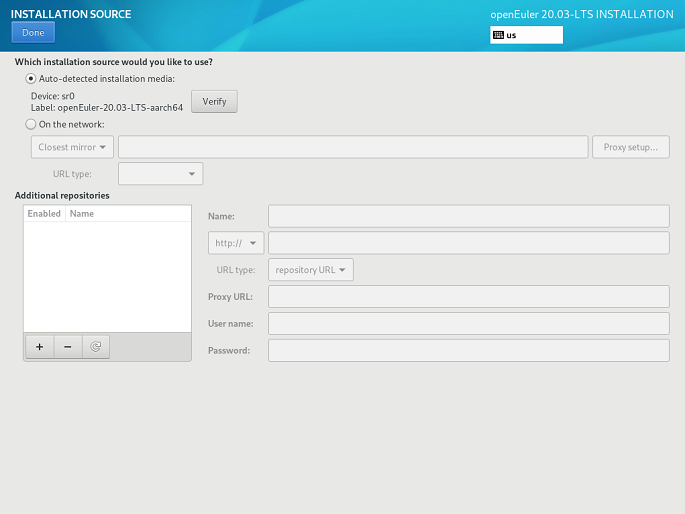

      Figure 10 Setting the installation source

      When you use the network for installation, if the HTTPS server uses a private certificate, press e on the installation wizard page to go to the parameter editing page and add the inst.noverifyssl parameter, as shown in Figure 11.

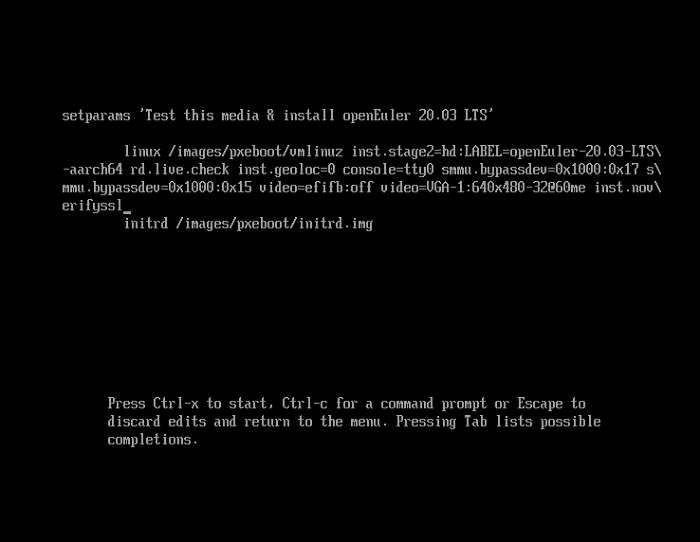

      Figure 11 Adding the inst.noverifyssl parameter

      After the setting is complete, click Done in the upper left corner to go back to the INSTALLATION SUMMARY page.

      NOTE:
      During the installation, if you have any questions about configuring the installation source, see An Exception Occurs During the Selection of the Installation Source.

      Selecting Installation Software

      On the INSTALLATION SUMMARY page, click SOFTWARE SELECTION to specify the software package to be installed.

      Based on the actual requirements, select Minimal Install on the left box and select an add-on in the Add-Ons for Selected Environment area on the right, as shown in Figure 12.

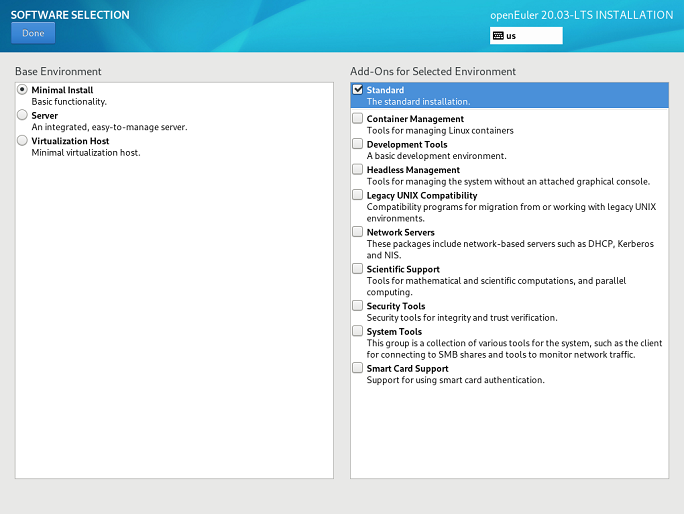

      Figure 12 Selecting installation software

      NOTE:

      • In Minimal Install mode, not all packages in the installation source will be installed. If the required package is not installed, you can mount the installation source to the local PC and configure a repo source, and use DNF to install the package.
      • If you select Virtual Host, the virtualization components QEMU, libvirt, and edk2 are installed by default. You can select whether to install the OVS component in the add-on area.

      After the setting is complete, click Done in the upper left corner to go back to the INSTALLATION SUMMARY page.

      Setting the Installation Destination

      On the INSTALLATION SUMMARY page, click INSTALLATION DESTINATION to select the OS installation disk and partition.

      You can view available local storage devices in Figure 13. You can also add an attached device or a network disk specified by clicking Add a disk.

      NOTICE:
      When selecting the device to be installed, you are advised not to use the NVMe SSD storage medium as the OS installation disk.

      Figure 13 Setting the installation destination

      Storage Configuration

      On the INSTALLATION DESTINATION page, configure storage for system partition. You can either manually configure partitions or select Automatic to automatically configure partitioning.

      NOTE:

      • During partitioning, to ensure system security and performance, you are advised to divide the device into the following partitions: /boot, /var, /var/log, /var/log/audit, /home, and /tmp.
      • If the system is configured with the swap partition, the swap partition is used when the physical memory of the system is insufficient. Although the swap partition can be used to expand the physical memory, if the swap partition is used due to insufficient memory, the system response slows and the system performance deteriorates. Therefore, you are not advised to configure the swap partition in the system with sufficient physical memory or the performance sensitive system.
      • If you need to split a logical volume group, select Custom to manually partition the logical volume group. On the MANUAL PARTITIONING page, click Modify in the Volume Group area to reconfigure the logical volume group.

      Automatic

      Select Automatic if the software is installed in a new storage device or the data in the storage device is not required.

      Customize

      If you need to manually partition the disk, click Customize and click Done in the upper left corner. The following page is displayed.

      Figure 14 MANUAL PARTITIONING page

      On the MANUAL PARTITIONING page, you can partition the disk in either of the following ways:

      • Automatic creation: Click Click here to create them automatically. The system automatically assigns four mount points according to the available storage space: /boot, /, /boot/efi, and swap.

      • Manual creation: Click to add a mount point. It is recommended that the expected capacity of each mount point not exceed the available space.

        NOTE:
        If the expected capacity of the mount point exceeds the available space, the system allocates the remaining available space to the mount point.

      After the setting is complete, click Done in the upper left corner to go back to the INSTALLATION SUMMARY page.

      Setting the Network and Host Name

      On the INSTALLATION SUMMARY page, select NETWORK & HOST NAME to configure the system network functions.

      The installation program automatically detects a local access interface. The detected interface is listed in the left box, and the interface details are displayed in the right-hand area, as shown in Figure 15. In the upper right corner, click the switchover button to enable or disable the network interface. You can also click Configure to configure the selected interface.

      In the lower left box, enter the host name. The host name can be the fully quantified domain name (FQDN) in the format of hostname.domainname or the brief host name in the format of hostname.

      Figure 15 Setting the network and host name

      After the setting is complete, click Done in the upper left corner to go back to the INSTALLATION SUMMARY page.

      Starting Installation

      On the installation page, after all the mandatory items are configured, the safety symbols will disappear. Then, you can click Begin Installation to install the system.

      Figure 16 Starting installation

      Configurations During Installation

      After the installation starts, the overall installation progress and the progress of writing the software package to the system are displayed.

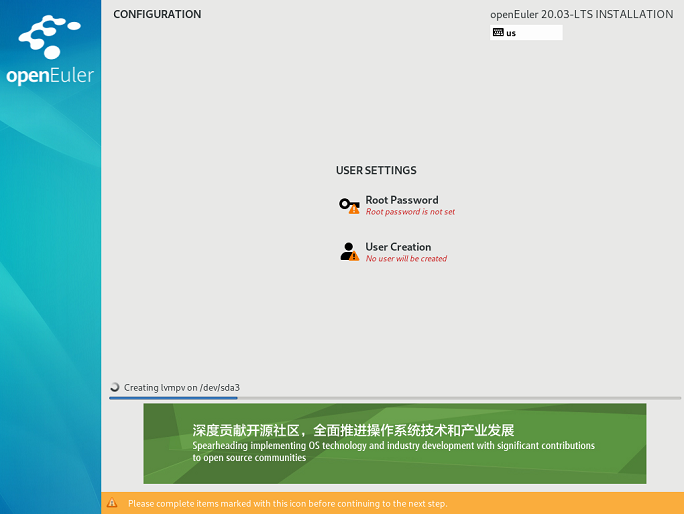

      Figure 17 Installation process

      During the process of installing software packages, you need to configure the root password and create users.

      Password Complexity

      The password of the root user or the password of the new user must meet the password complexity requirements. Otherwise, the password configuration or user creation will fail. The password complexity requirements are as follows:

      1. A password must contain at least eight characters.
      2. A password must contain at least three of the following types: uppercase letters, lowercase letters, digits, and special characters.
      3. A password must be different from the account name.
      4. A password cannot contain words in the dictionary.
        • Querying a dictionary

          In the installed openEuler environment, you can run the following command to export the dictionary library file dictionary.txt, and then check whether the password is in the dictionary.

          cracklib-unpacker /usr/share/cracklib/pw_dict > dictionary.txt

        • Modifying a dictionary

          1. Modify the exported dictionary library file, and then run the following command to update the dictionary library:

            # create-cracklib-dict dictionary.txt

          2. Run the following command to add another dictionary file custom.txt to the original dictionary library.

            # create-cracklib-dict dictionary.txt custom.txt


      Setting the Root User Password

      Click Root Password. In the displayed dialog box, as shown in Figure 18, enter a password and re-enter to confirm.

      NOTE:
      The root password is required to be configured at the same time of installing software packages. Otherwise, the installation will fail. A root account is used for performing critical system administration tasks. It is not recommended to use this account for daily work or system access.

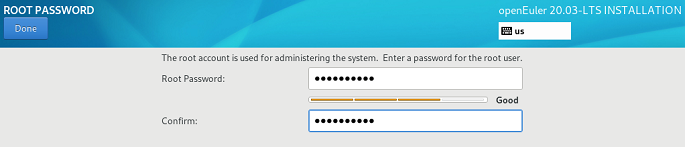

      Figure 18 Password of the root account

      After configuration, click Done in the left-upper corner to switch back to the installation process page.

      Creating a User

      Click User Creation. Figure 19 shows the page for creating a user. Enter a username and set a password. By clicking Advanced, you can also configure a home directory and a user group, as shown in Figure 20.

      Figure 19 Creating a user

      Figure 20 Advanced user configuration

      After configuration, click Done in the left-upper corner to switch back to the installation process page.

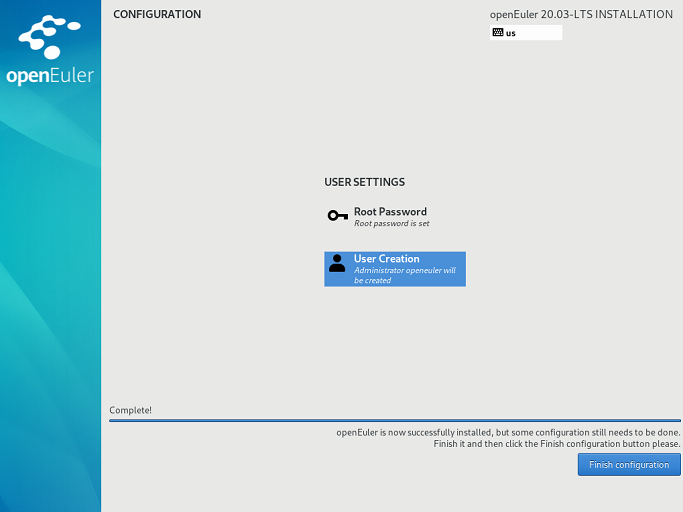

      Click Finish. The configuration of openEuler is complete.

      Completing the Installation

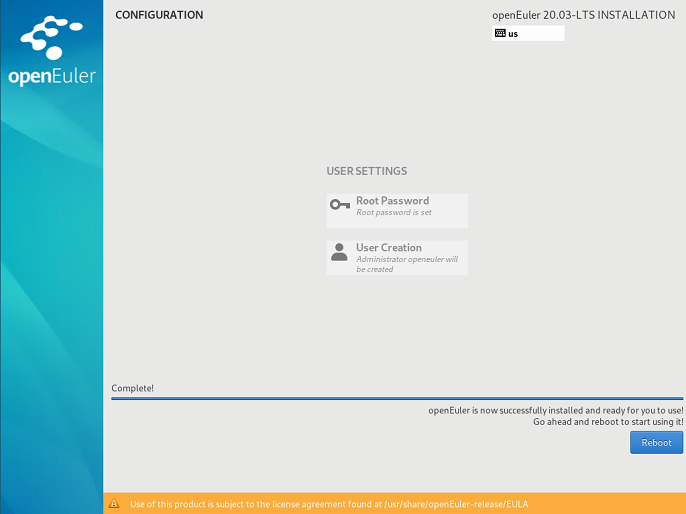

      openEuler has been installed, as shown in Figure 21. Click Reboot to restart the system.

      Figure 21 Completing the installation

      • If the physical DVD-ROM is used to install the OS and the DVD-ROM drive is not automatically ejected during the restart, manually remove the DVD-ROM. Then, the openEuler CLI login page is displayed.
      • If the virtual DVD-ROM drive is used to install the OS, change the server boot option to Hard Disk and restart the server. Then, the openEuler CLI login page is displayed.
