      Kubernetes+iSulad Environment Deployment

      Preparing Cluster Servers

      Prepare at least 3 machines running openEuler 22.03 LTS or later versions. The following table lists information about the machines.

      Host NameIP AddressOSRoleComponent
      lab1197.xxx.xxx.xxxopenEuler 22.03 LTS SP2Control nodeiSulad/Kubernetes
      lab2197.xxx.xxx.xxxopenEuler 22.03 LTS SP2Worker node 1iSulad/Kubernetes
      lab3197.xxx.xxx.xxxopenEuler 22.03 LTS SP2Worker node 2iSulad/Kubernetes

      Preparing Images and Software Packages

      The following table lists software packages and images used in the example. The versions are for reference only.

      SoftwareVersion
      iSulad2.0.17-2
      kubernetes-client1.20.2-9
      kubernetes-kubeadm1.20.2-9
      kubernetes-kubelet1.20.2-9
      ImageVersion
      k8s.gcr.io/kube-proxyv1.20.2
      k8s.gcr.io/kube-apiserverv1.20.2
      k8s.gcr.io/kube-controller-managerv1.20.2
      k8s.gcr.io/kube-schedulerv1.20.2
      k8s.gcr.io/etcd3.4.13-0
      k8s.gcr.io/coredns1.7.0
      k8s.gcr.io/pause3.2
      calico/nodev3.14.2
      calico/pod2daemon-flexvolv3.14.2
      calico/cniv3.14.2
      calico/kube-controllersv3.14.2

      If you perform the deployment in without an Internet connection, download the software packages, dependencies, and images in advance.

      Modifying the hosts File

      1. Change the host name of the machine, for example, lab1.

        hostnamectl set-hostname lab1
        sudo -i

      2. Configure host name resolution by modifying the /etc/hosts file on each machine.

        vim /etc/hosts

      3. Add the following content (IP address and host name) to the hosts file:

        197.xxx.xxx.xxx lab1
        197.xxx.xxx.xxx lab2
        197.xxx.xxx.xxx lab3


      Preparing the Environment

      1. Disable the firewall/

        systemctl stop firewalld
        systemctl disable firewalld

      2. Disable SELinux.

        setenforce 0

      3. Disable memory swapping.

        swapoff -a
        sed -ri 's/.*swap.*/#&/' /etc/fstab

      4. Configure the network and enable forwarding.

        $ cat > /etc/sysctl.d/kubernetes.conf <<EOF
        net.bridge.bridge-nf-call-iptables = 1
        net.ipv4.ip_forward = 1
        net.bridge.bridge-nf-call-ip6tables = 1
        vm.swappiness=0
        EOF

      5. Enable the rules.

        modprobe overlay
        modprobe br_netfilter
        sysctl -p /etc/sysctl.d/kubernetes.conf

      6. Configure the startup script.

        vim /etc/init.d/k8s.sh

        • Add the following content to the k8s.sh script:

          #!/bin/sh
          modprobe br_netfilter
          sysctl -w net.bridge.bridge-nf-call-ip6tables = 1
          sysctl -w net.bridge.bridge-nf-call-iptables = 1

        • Change the permissions aon the script.

          chmod +x /etc/init.d/k8s.sh

      7. Create the configuration file.

        $ vim br_netfilte.service

        [Unit]
        Description=To enable the core module br_netfilter when reboot
        After=default.target
        [Service]
        ExecStart=/etc/init.d/k8s.sh
        # The path can be customized.
        [Install]
        WantedBy=default.target

        • Start the service.

          systemctl daemon-reload
          systemctl enable br_netfilter.service --now

      8. Configure sysctl.

        sed -i "s/net.ipv4.ip_forward=0/net.ipv4.ip_forward=1/g" /etc/sysctl.conf
        sed -i 12a\vm.swappiness=0 /etc/sysctl.conf


      Installing kubeadm, kubectl, kubelet, and iSulad

      1. Install the software packages using Yum.
      yum install -y kubernetes-kubeadm
      yum install -y kubernetes-client
      yum install -y kubernetes-kubelet
      yum install -y iSulad

      1. Enable kubelet to start upon system startup.
      systemctl enable kubelet


      Modifying iSulad Configurations

      1. Open the /etc/isulad/daemon.json file.
      vi /etc/isulad/daemon.json

      1. Modify the file as follows:
      {
          "group": "isula",
          "default-runtime": "lcr",
          "graph": "/var/lib/isulad",
          "state": "/var/run/isulad",
          "engine": "lcr",
          "log-level": "ERROR",
          "pidfile": "/var/run/isulad.pid",
          "log-opts": {
              "log-file-mode": "0600",
              "log-path": "/var/lib/isulad",
              "max-file": "1",
              "max-size": "30KB"
          },
          "log-driver": "stdout",
          "container-log": {
              "driver": "json-file"
          },
          "hook-spec": "/etc/default/isulad/hooks/default.json",
          "start-timeout": "2m",
          "storage-driver": "overlay2",
          "storage-opts": [
              "overlay2.override_kernel_check=true"
          ],
          "registry-mirrors": [
                      "docker.io"
          ],
          "insecure-registries": [
                       "k8s.gcr.io",
                       "quay.io",
                       "oci.inhuawei.com",
                       "rnd-dockerhub.huawei.com",
                       "registry.aliyuncs.com",
                       "<IP address of the local image repository>"
          ],
          "pod-sandbox-image": "k8s.gcr.io/pause:3.2",
          "native.umask": "normal",
          "network-plugin": "cni",
          "cni-bin-dir": "/opt/cni/bin",
          "cni-conf-dir": "/etc/cni/net.d",
          "image-layer-check": false,
          "use-decrypted-key": true,
          "insecure-skip-verify-enforce": false,
          "cri-runtimes": {
              "kata": "io.containerd.kata.v2"
          }
      }

      1. Restart the isulad service.

        systemctl restart isulad


      Loading the isulad Images

      1. Check the required system images.

        kubeadm config images list

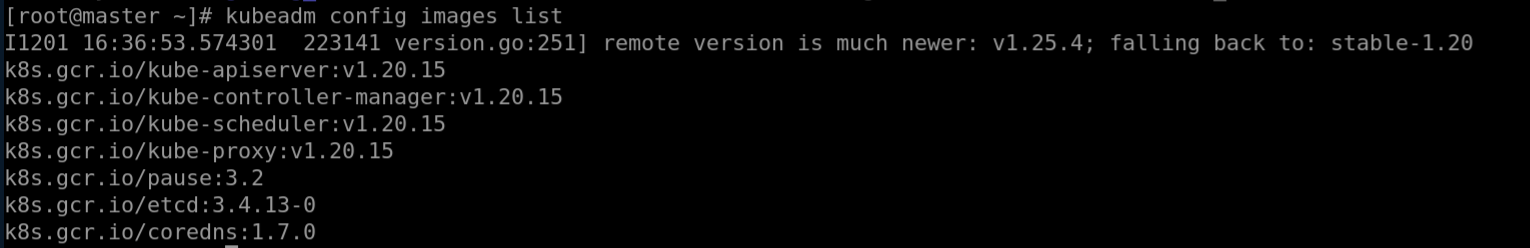

      Pay attention to the versions in the output, as shown in the figure.

      1. Pull the images using the isula command.

        Note: The versions in the following commands are for reference only. Use the versions in the preceding output.

        isula pull k8simage/kube-apiserver:v1.20.15
        isula pull k8smx/kube-controller-manager:v1.20.15
        isula pull k8smx/kube-scheduler:v1.20.15
        isula pull k8smx/kube-proxy:v1.20.15
        isula pull k8smx/pause:3.2
        isula pull k8smx/coredns:1.7.0
        isula pull k8smx/etcd:3.4.13-0

      2. Modify the tags of the pulled images.

        isula tag k8simage/kube-apiserver:v1.20.15 k8s.gcr.io/kube-apiserver:v1.20.15
        isula tag k8smx/kube-controller-manager:v1.20.15 k8s.gcr.io/kube-controller-manager:v1.20.15
        isula tag k8smx/kube-scheduler:v1.20.15 k8s.gcr.io/kube-scheduler:v1.20.15
        isula tag k8smx/kube-proxy:v1.20.15 k8s.gcr.io/kube-proxy:v1.20.15
        isula tag k8smx/pause:3.2 k8s.gcr.io/pause:3.2
        isula tag k8smx/coredns:1.7.0 k8s.gcr.io/coredns:1.7.0
        isula tag k8smx/etcd:3.4.13-0 k8s.gcr.io/etcd:3.4.13-0

      3. Remove the old images.

        isula rmi k8simage/kube-apiserver:v1.20.15
        isula rmi k8smx/kube-controller-manager:v1.20.15
        isula rmi k8smx/kube-scheduler:v1.20.15
        isula rmi k8smx/kube-proxy:v1.20.15
        isula rmi k8smx/pause:3.2
        isula rmi k8smx/coredns:1.7.0
        isula rmi k8smx/etcd:3.4.13-0

      4. View pulled images.

        isula images


      Installing crictl

      yum install -y cri-tools


      Initializing the Master Node

      Initialize the master node.

      kubeadm init --kubernetes-version v1.20.2 --cri-socket=/var/run/isulad.sock --pod-network-cidr=<IP address range of the pods>

      • --kubernetes-version indicates the current Kubernetes version.
      • --cri-socket specifies the engine, that is, isulad.
      • --pod-network-cidr specifies the IP address range of the pods.

      Enter the following commands as prompted:

      mkdir -p $HOME/.kube
      sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
      sudo chown $(id -u):$(id -g) $HOME/.kube/config


      After the initialization, copy the last two lines of the output and run the copied commands on the nodes to add them to the master cluster. The commands can also be generated using the following command:

      kubeadm token create --print-join-command


      Adding Nodes

      Paste the kubeadm join command generated on Master, add --cri-socket=/var/run/isulad.sock before --discovery-token-ca-cert-hash, and then run the command.

      kubeadm join <IP address> --token bgyis4.euwkjqb7jwuenwvs --cri-socket=/var/run/isulad.sock --discovery-token-ca-cert-hash sha256:3792f02e136042e2091b245ac71c1b9cdcb97990311f9300e91e1c339e1dfcf6


      Installing Calico Network Plugins

      1. Pull Calico images.

        Configure the Calico network plugins on the Master node and pull the required images on each node.

        isula pull calico/node:v3.14.2
        isula pull calico/cni:v3.14.2
        isula pull calico/kube-controllers:v3.14.2
        isula pull calico/pod2daemon-flexvol:v3.14.2

      2. Download the configuration file on Master.

        wget https://docs.projectcalico.org/v3.14/manifests/calico.yaml

      3. Modify calico.yaml.

        # vim calico.yaml

        # Modify the following parameters.

        - name: IP_AUTODERECTION_METHOD
        Value: ”can-reach=197.3.10.254”

        - name: CALICO_IPV4POOL_IPIP
        Value: ”CrossSubnet”


        • If the default CNI of the pod is Flannel, add the following content to flannel.yaml:

          --iface=enp4s0


      4. Create a pod.

        kubectl apply -f calico.yaml

        • If you want to delete the configuration file, run the following command:

          kubectl delete -f calico.yaml

      5. View pod information.

        kubectl get pod -A -o wide


      Checking the Master Node Information

      kubectl get nodes -o wide


      To reset a node, run the following command:

      kubeadm reset
