      Using Kickstart for Automatic Installation

      Introduction

      Overview

      You can use the kickstart tool to automatically install the openEuler OS in either of the following ways:

      • Semi-automatic installation: You only need to specify the location of the kickstart file. Kickstart automatically configures OS attributes such as keyboard, language, and partitions.
      • Automatic installation: The OS is automatically installed.

      Advantages and Disadvantages

      Table 1 lists the advantages and disadvantages of semi-automatic installation and full-automatic installation using kickstart. You can select an installation mode as required.

      Table 1 Advantages and disadvantages

      Installation Mode

      Advantage

      Disadvantage

      Semi-automatic installation

      Services such as TFTP, PXE, and DHCP do not need to be prepared.

      You need to manually specify the path of the kickstart file.

      Full-automatic installation

      The OS is installed automatically.

      Services, such as TFTP, DHCP, and PXE, need to be configured.

      Background

      Kickstart

      Kickstart is an unattended installation mode. The principle of kickstart is to record typical parameters that need to be manually entered during the installation and generate the configuration file ks.cfg. During the installation, the installation program searches the ks.cfg configuration file first for required parameters. If no matching parameters are found, you need to manually configure these parameters. If all required parameters are covered by the kickstart file, automatic installation can be achieved by only specifying the path of the kickstart file.

      Both full-automatic or semi-automatic installation can be achieved by kickstart.

      kickstart uses the open source software Pykickstart to parse ks.cfg files.

      PXE

      Pre-boot Execution Environment (PXE) works in client/server network mode. The PXE client can obtain an IP address from the DHCP server during the startup and implement client boot and installation through the network based on protocols such as trivial file transfer protocol (TFTP).

      TFTP

      TFTP is used to transfer simple and trivial files between clients and the server.

      Semi-automatic Installation Guide

      Environment Requirements

      The environment requirements for semi-automatic installation of openEuler OS using kickstart are as follows:

      • PM/VM (For details about how to create VMs, see the documents from corresponding vendors): includes the computer where kickstart is used for automatic installation and the computer where the kickstart tool is installed.
      • httpd: deploys the kickstart file and system installation file.
      • ISO: openEuler-{version}-{architecture}-dvd.iso. In this document, openEuler-22.03-LTS-SP2-aarch64-dvd.iso is used as an example.

      Procedure

      To use kickstart to perform semi-automatic installation of openEuler, perform the following steps:

      Environment Preparation

      NOTE: Before the installation, ensure that the firewall of the HTTP server is disabled. Run the following command to disable the firewall:

      iptables -F
      systemctl stop firewalld

      1. Install httpd and start the service.

        dnf install httpd -y
        systemctl start httpd
        systemctl enable httpd

      2. Run the following commands to prepare the kickstart file:

        $ mkdir /var/www/html/ks
        $ vim /var/www/html/ks/openEuler-ks.cfg # The file can be obtained by modifying the  **anaconda-ks.cfg**  file automatically generated from openEuler OS.
        ====================================
        ***Modify the following information as required.***
        #version=DEVEL
        ignoredisk --only-use=sda
        autopart --type=lvm
        # Partition clearing information
        clearpart --none --initlabel
        # Use graphical install
        graphical
        # Use CDROM installation media
        cdrom
        # Keyboard layouts
        keyboard --vckeymap=cn --xlayouts='cn'
        # System language
        lang zh_CN.UTF-8

        # Network information
        network  --bootproto=dhcp --device=enp4s0 --ipv6=auto --activate
        network  --hostname=openeuler.com
        # Root password
        rootpw --iscrypted $6$fQE83lxEZ48Or4zc$j7/PlUMHn29yTjCD4Fi44WTZL/RzVGxJ/7MGsZMl6QfE3KjIVT7M4UrhFXbafvRq2lUddAFcyWHd5WRmXfEK20
        # Run the Setup Agent on first boot
        firstboot --enable
        # Do not configure the X Window System
        skipx
        # System services
        services --disabled="chronyd"
        # System timezone
        timezone Asia/Shanghai --isUtc--nontp

        %packages
        @^minimal-environment
        @standard

        %end

        %post
        #enable kdump
        sed  -i "s/ ro / ro crashkernel=1024M,high /" /boot/efi/EFI/openEuler/grub.cfg
        %end
        =====================================


        NOTE: The method of generating the password ciphertext is as follows:

        # python3
        Python 3.7.0 (default, Apr  1 2019, 00:00:00)
        [GCC 7.3.0] on linux
        Type "help", "copyright", "credits" or "license" for more information.
        >>> import crypt
        >>> passwd = crypt.crypt("myPasswd")
        >>> print (passwd)
        $6$63c4tDmQGn5SDayV$mZoZC4pa9Jdt6/ALgaaDq6mIExiOO2EjzomB.Rf6V1BkEMJDcMddZeGdp17cMyc9l9ML9ldthytBEPVcnboR/0

      3. Mount the ISO image file to the CD-ROM drive of the computer where openEuler is to be installed.

        If you want to install openEuler through the NFS, specify the path (which is cdrom by default) of installation source in the kickstart file.

      Installing the System

      1. The installation selection dialog box is displayed.

        1. On the installation wizard page in Starting the Installation, select Install openEuler 22.03-LTS-SP2 and press e.

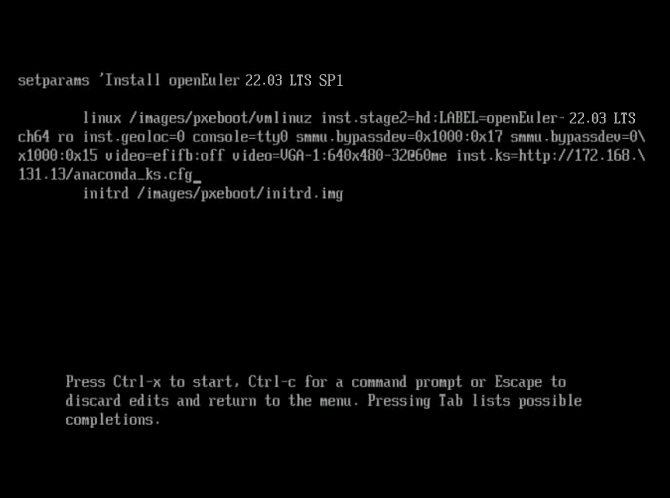

        2. Add **inst.ks=http://server_ip/ks/openEuler-ks.cfg** to the startup parameters.


        3. Press Ctrl+x to start the automatic installation.

      2. Verify that the installation is complete.

        After the installation is complete, the system automatically reboots. If the first boot option of the system is set to the CD_ROM, the installation page is displayed again. Shut down the computer and change startup option to start from the hard disk preferentially.

      Full-automatic Installation Guide

      Environment Requirements

      The environment requirements for full-automatic installation of openEuler using kickstart are as follows:

      • PM/VM (For details about how to create VMs, see the documents from corresponding vendors): includes the computer where kickstart is used for automatic installation and the computer where the kickstart tool is installed.
      • httpd: stores the kickstart file.
      • TFTP: provides vmlinuz and initrd files.
      • DHCPD/PXE: provides the DHCP service.
      • ISO: openEuler-{version}-{architecture}-dvd.iso. In this document, openEuler-22.03-LTS-SP2-aarch64-dvd.iso is used as an example.

      Procedure

      To use kickstart to perform full-automatic installation of openEuler, perform the following steps:

      Environment Preparation

      NOTE: Before the installation, ensure that the firewall of the HTTP server is disabled. Run the following command to disable the firewall:

      iptables -F

      1. Install httpd and start the service.

        dnf install httpd -y
        systemctl start httpd
        systemctl enable httpd

      2. Install and configure TFTP.

        $ dnf install tftp-server xinetd -y
        $ vim /etc/xinetd.d/tftp
        service tftp
        {
        socket_type = dgram
        protocol = udp
        wait = yes
        user = root
        server = /usr/sbin/in.tftpd
        server_args = -s /var/lib/tftpboot
        disable = no
        per_source = 11
        cps = 100 2
        flags = IPv4
        }
        $ systemctl start tftp
        $ systemctl enable tftp
        $ systemctl start xinetd
        $ systemctl status xinetd
        $ systemctl enable xinetd

      3. Prepare the installation source.

        mount openEuler-22.03-LTS-SP2-aarch64-dvd.iso /mnt
        cp -r /mnt/* /var/www/html/openEuler/

      4. Set and modify the kickstart configuration file openEuler-ks.cfg. Select the HTTP installation source by referring to 3.

        $ vim  /var/www/html/ks/openEuler-ks.cfg
        ====================================
        ***Modify the following information as required.***
        #version=DEVEL
        ignoredisk --only-use=sda
        autopart --type=lvm
        # Partition clearing information
        clearpart --none --initlabel
        # Use graphical install
        graphical
        # Keyboard layouts
        keyboard --vckeymap=cn --xlayouts='cn'
        # System language
        lang zh_CN.UTF-8
        #Use http installation source
        url  --url=//192.168.122.1/openEuler/
        %post
        #enable kdump
        sed  -i "s/ ro / ro crashkernel=1024M,high /" /boot/efi/EFI/openEuler/grub.cfg
        %end
        ...

      5. Modify the PXE configuration file grub.cfg as follows. (Note: Currently, openEuler does not support the cfg file in bls format. If the x86_64 architecture is used (UEFI mode), replace grubaa64.efi with grubx64.efi.)

        $ cp -r /mnt/images/pxeboot/* /var/lib/tftpboot/
        $ cp /mnt/EFI/BOOT/grubaa64.efi /var/lib/tftpboot/
        $ cp /mnt/EFI/BOOT/grub.cfg /var/lib/tftpboot/
        $ ls /var/lib/tftpboot/
        grubaa64.efi  grub.cfg  initrd.img  TRANS.TBL  vmlinuz
        $ vim /var/lib/tftpboot/grub.cfg
        set default="1"

        function load_video {
          if [ x$feature_all_video_module = xy ]; then
            insmod all_video
          else
            insmod efi_gop
            insmod efi_uga
            insmod ieee1275_fb
            insmod vbe
            insmod vga
            insmod video_bochs
            insmod video_cirrus
          fi
        }

        load_video
        set gfxpayload=keep
        insmod gzio
        insmod part_gpt
        insmod ext2

        set timeout=60


        ### BEGIN /etc/grub.d/10_linux ###
        menuentry 'Install openEuler 22.03-LTS-SP2' --class red --class gnu-linux --class gnu --class os {
                set root=(tftp,192.168.122.1)
                linux /vmlinuz ro inst.geoloc=0 console=ttyAMA0 console=tty0 rd.iscsi.waitnet=0 inst.ks=http://192.168.122.1/ks/openEuler-ks.cfg
                initrd /initrd.img
        }

      6. Configure DHCP, which can be replaced by DNSmasq. If the x86_64 architecture is used, replace grubaa64.efi with grubx64.efi in UEFI mode, or replace grubaa64.efi with pxelinux.0 in Legacy mode.

        $ dnf install dhcp -y
        $ vim /etc/dhcp/dhcpd.conf
        # DHCP Server Configuration file.
        #   see /usr/share/doc/dhcp-server/dhcpd.conf.example
        #   see dhcpd.conf(5) man page
        ddns-update-style interim;
        ignore client-updates;
        filename "grubaa64.efi";  # location of the pxelinux startup file;
        next-server 192.168.122.1;     # (IMPORTANT) IP address of the TFTP server;
        subnet 192.168.122.0 netmask 255.255.255.0 {
        option routers 192.168.111.1; # Gateway address
        option subnet-mask 255.255.255.0; # Subnet mask
        range dynamic-bootp 192.168.122.50 192.168.122.200; # Dynamic IP address range
        default-lease-time 21600;
        max-lease-time 43200;
        }
        $ systemctl start dhcpd
        $ systemctl enable dhcpd


      Installing the System

      1. On the Start boot option screen, press F2 to boot from the PXE and start automatic installation.

      2. The automatic installation window is displayed.

      3. Verify that the installation is complete.
