      K3s Deployment Guide

      Introduction to K3s

      K3s is a lightweight Kubernetes distribution that is optimized for edge computing and IoT scenarios. K3s provides the following enhanced features:

      • Packaged as a single binary file.
      • Uses an SQLite3-based lightweight storage backend as the default storage mechanism and supports etcd3, MySQL, and PostgreSQL.
      • Wrapped in a simple launcher that handles complex TLS and options.
      • Secure by default with reasonable defaults for lightweight environments.
      • Batteries included, providing simple but powerful functions such as local storage providers, service load balancers, Helm controllers, and Traefik Ingress controllers.
      • Encapsulates all operations of the Kubernetes control plane in a single binary file and process, capable of automating and managing complex cluster operations including certificate distribution.
      • Minimizes external dependencies and requires only kernel and cgroup mounting.

      Application Scenarios

      K3s is applicable to the following scenarios:

      • Edge computing
      • IoT
      • Continuous integration (CI)
      • Development
      • Arm
      • Embedded Kubernetes

      The resources required for running the K3s are relatively small. Therefore, K3s is also applicable to development and testing scenarios. In these scenarios, K3s facilitates function verification and problem reproduction by shortening cluster startup time and reducing resources consumed by the cluster.

      Deploying K3s

      Step 1 Making Preparations

      • Ensure that the host names of the server node and agent node are different.

      You can run the hostnamectl set-hostname "host name" command to change the host name.

      hostnamectl set-hostname agent

      • Install K3s on each node using Yum.

        The K3s official website provides binary executable files of different architectures and the install.sh script for offline installation. The openEuler community migrates the compile process of the binary file to the community and releases the compiled RPM package. You can run the yum command to download and install K3s.

        yum install k3s


      Step 2 Deploying the Server Node

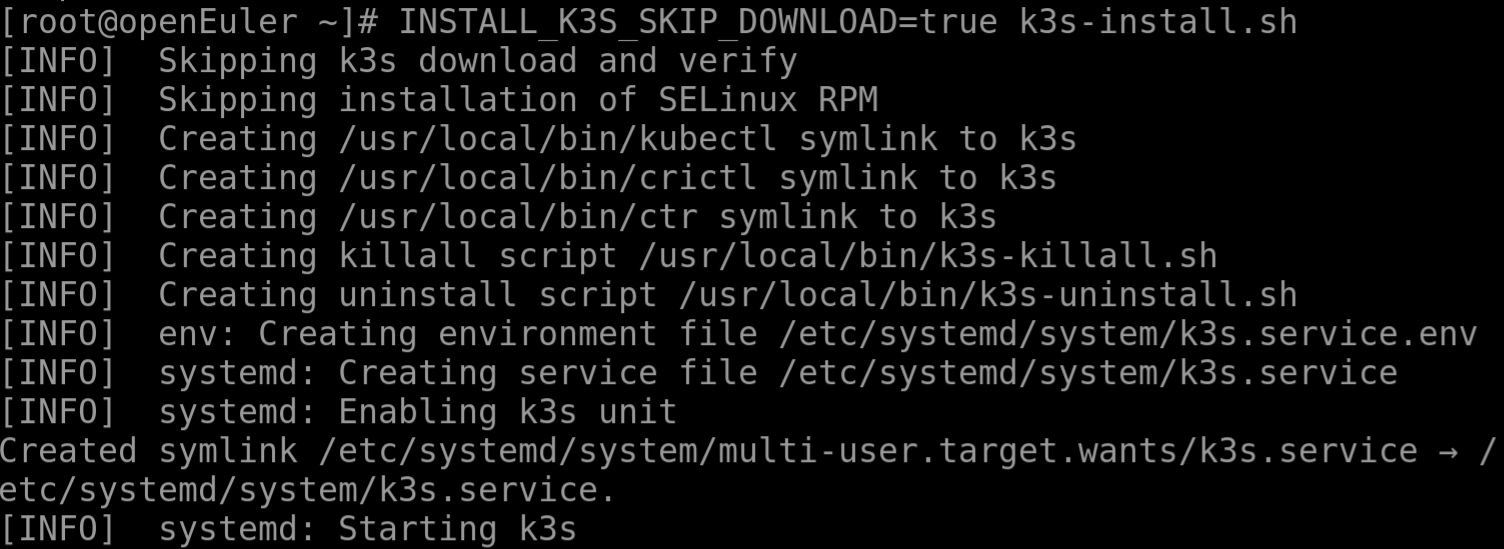

      To install K3s on a single server, run the following command on the server node:

      INSTALL_K3S_SKIP_DOWNLOAD=true k3s-install.sh


      1661825352724

      Step 3 Checking Server Deployment

      kubectl get nodes


      Step 4 Deploying the Agent Node

      Query the token value of the server node. The token is stored in the /var/lib/rancher/k3s/server/node-token file on the server node.

      Note:

      Only the second half of the token is used.

      1661825538264

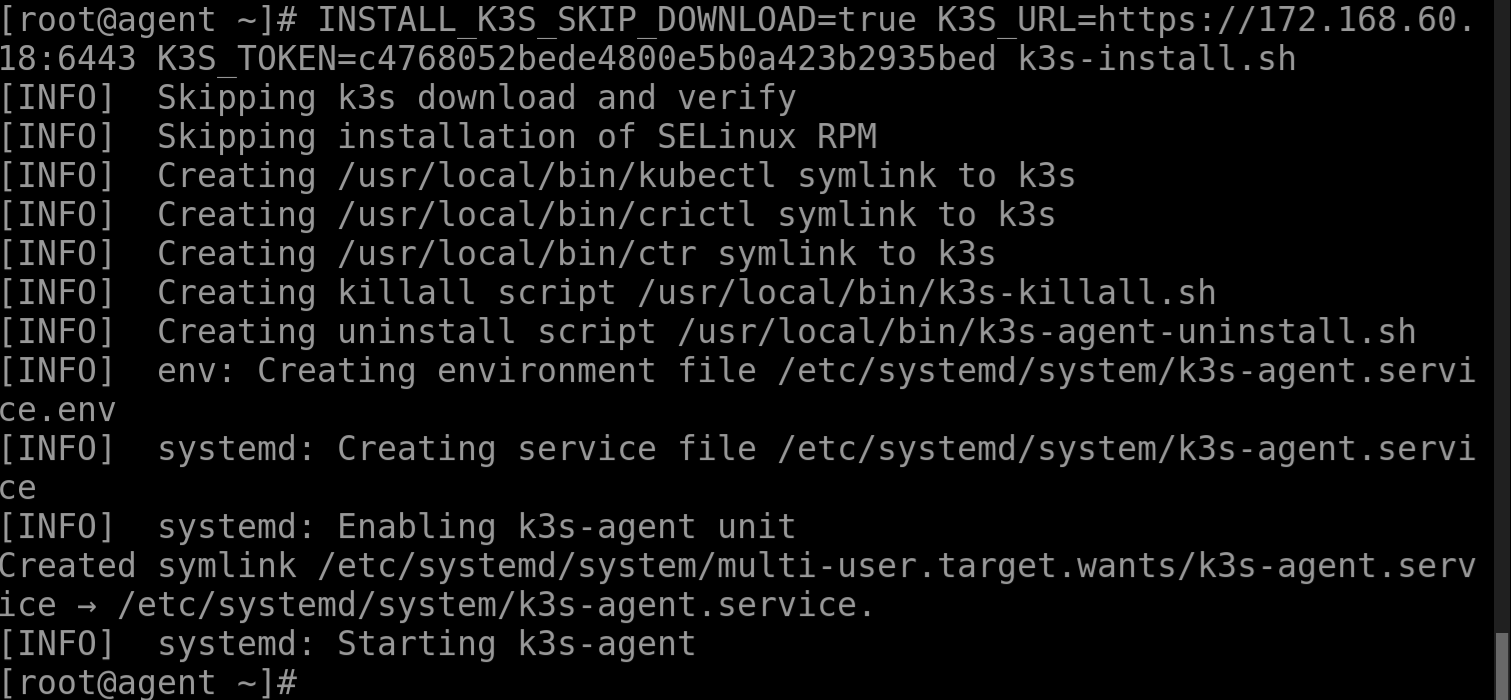

      Run the following command on each agent node to open required ports and add agents:

      firewall-cmd --add-port=6443/tcp --zone=public --permanent
      firewall-cmd --add-port=8472/udp --zone=public --permanent
      firewall-cmd --reload
      INSTALL_K3S_SKIP_DOWNLOAD=true K3S_URL=https://myserver:6443 K3S_TOKEN=mynodetoken k3s-install.sh


      Note:

      Replace myserver with the IP address of the server or a valid DNS, and replace mynodetoken with the token of the server node.

      1661829392357

      Step 5 Checking Agent Deployment

      After the installation is complete, run kubectl get nodes on the server node to check whether the agent node is successfully registered.

      A basic K3s cluster is set up.

      Deploying the First Nginx Service on K3s

      Step 1 Creating a Deployment

      In Kubernetes, a deployment is used to deploy applications. Create and edit the deployment.yml file as follows:

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: nginx-deployment
        labels:
          app: nginx
      spec:
        replicas: 1
        selector:
          matchLabels:
            app: nginx
        template:
          metadata:
            labels:
              app: nginx
          spec:
            containers:
            - name: nginx
              image: nginx:alpine
              ports:
                - containerPort: 80


      Configure deployment.yml and run the kubectl apply command to create a deployment.

      [root@k3s-server home]# kubectl apply -f deployment.yml


      apply-deployment

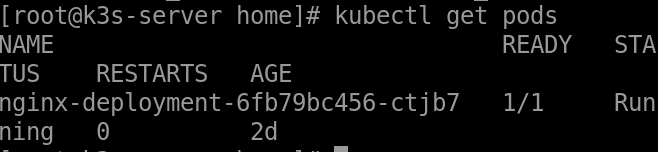

      After the deployment is created, check whether the pods are in the running state.

      [root@k3s-server home]# kubectl get pods


      get-pods

      Step 2 Creating a Service

      After the deployment is created, the Nginx service is only deployed. You need to enable the Nginx service to provide services externally. Create and edit the service.yml file as follows:

      apiVersion: v1
      kind: Service
      metadata:
        name: nginx-service
      spec:
        selector:
          app: nginx
        ports:
        - protocol: TCP
          port: 80
          targetPort: 80
          nodePort: 30080
        type: NodePort


      Configure the service.yml file and run the kubectl apply command to create a service.

      [root@k3s-server home]# kubectl apply -f service.yml


      apply-service

      Step 3 Viewing Service Information

      [root@k3s-server home]# kubectl describe service nginx-service


      describe-service

      Step 4 Accessing the Service

      Run the curl command on the intranet to access the server. The command output shows that the Nginx service has been enabled to provide services externally.

      curl-nginx

      An Nginx service is running in the cluster.

      More

      For details about how to use K3s, visit the K3s official website at https://rancher.com/docs/k3s/latest/en.
