LTS

    Innovation Version

      Installation and Deployment

      Software

      • OS: openEuler 22.03 LTS SP2

      Hardware

      • x86_64

      Preparing the Environment

      1. ROS2

      1. ros-humble

      1. Installing ros-humble

      1. Install ros-humble software package

        yum install openeuler-ros
        yum install ros-humble-ros-base ros-humble-xxx e.g. ros-humble-turtlesim

      2. Run the following command to check whether the installation is successful

        rpm -q ros-humble


      2. Test ros-humble

      Run turtlesim
      1. Run turtlesim

        source /opt/ros/humble/setup.bash
        ros2 run turtlesim turtlesim_node

      2. Open turtlesim terminal

        source /opt/ros/humble/setup.bash
        ros2 run turtlesim turtle_teleop_key

      3. Use the arrow keys to control the movement of the turtle ros-humble

      2. ros-foxy

      1. Installing ros-foxy-ros-base

      1. Download the software package

        wget http://121.36.3.168:82/home:/Chenjy3_22.03/openEuler_22.03_LTS_standard_x86_64/x86_64/ros-foxy-ros-base-0.9.2-2.oe2203.x86_64.rpm

      2. Install the rpm package

        rpm -ivh --nodeps --force ros-foxy-ros-base-0.9.2-2.oe2203.x86_64.rpm

      3. Dependence installation

        sh /opt/ros/foxy/install_dependence.sh

      4. Run the following command to check whether the installation is successful

        rpm -q ros-foxy-ros-base


      2. Test ros-foxy-ros-base

      Run turtlesim
      1. Run turtlesim

        source /opt/ros/foxy/setup.bash
        ros2 run turtlesim turtlesim_node

      2. Open turtlesim terminal

        source /opt/ros/foxy/setup.bash
        ros2 run turtlesim turtle_teleop_key

      3. Use the arrow keys to control the movement of the turtle

        ROS2-turtlesim

      2. ROS

      1. ros-noetic

      1. Installing ros-noetic-ros-comm

      1. Download the software package

        wget http://121.36.3.168:82/home:/davidhan:/branches:/openEuler:/22.03:/LTS:/SP1:/Epol/standard_x86_64/x86_64/ros-noetic-ros-comm-1.15.11-2.oe2203.x86_64.rpm

      2. Install the rpm package

        rpm -ivh --nodeps --force ros-noetic-ros-comm-1.15.11-2.oe2203.x86_64.rpm

      3. Dependence installation

        sh /opt/ros/noetic/install_dependence.sh

      4. Run the following command to check whether the installation is successful

        rpm -q ros-noetic-ros-comm


      2. Test ros-noetic-ros-comm

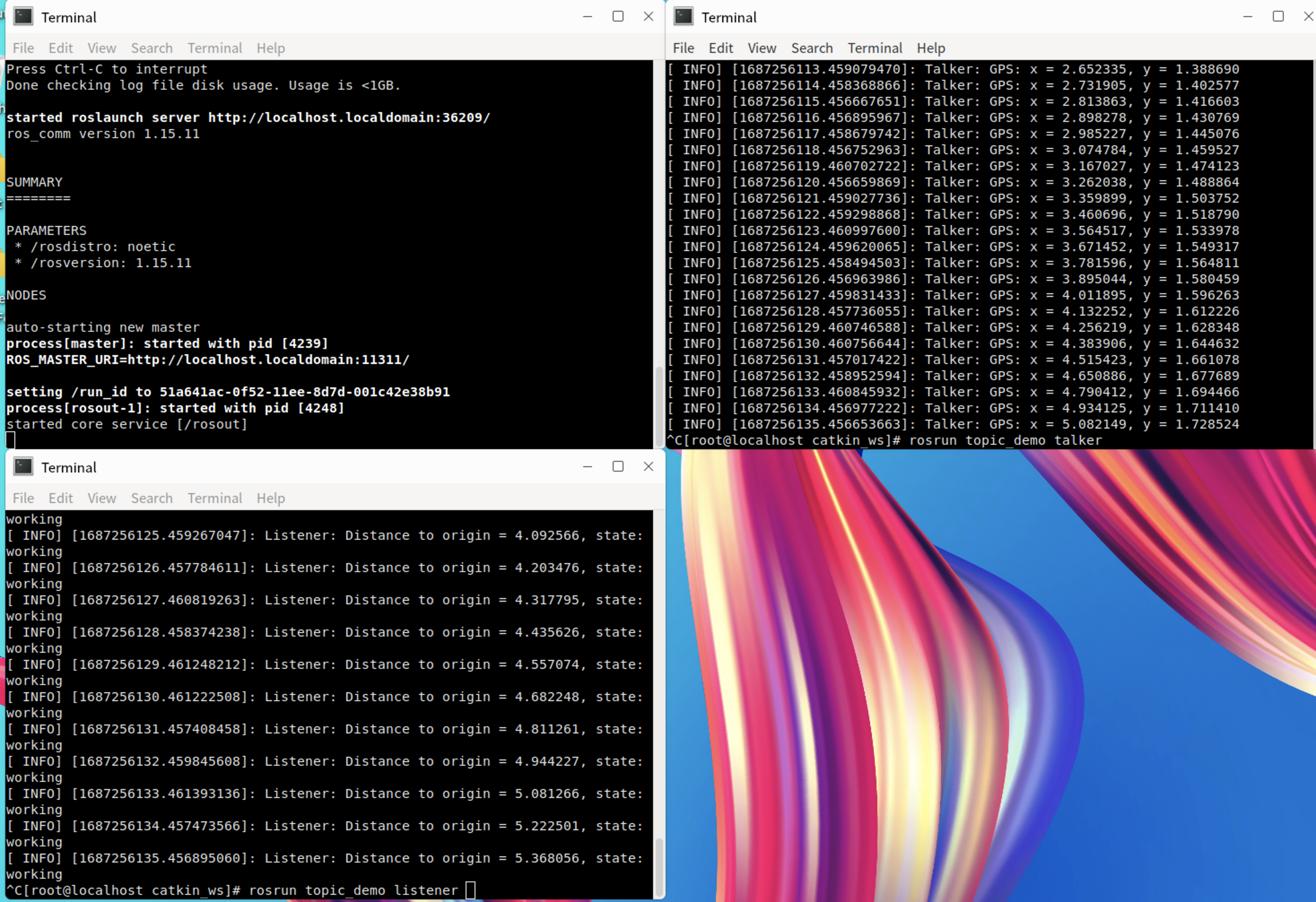

      Run topic_demo
      1. Create and compile workspace

        mkdir -p catkin_ws/src
        cd catkin_ws/src/
        source /opt/ros/noetic/setup.bash
        catkin_init_workspace
        git clone https://gitee.com/davidhan008/topic_demo.git
        cd ..
        catkin_make

      2. run roscore

        source /opt/ros/noetic/setup.bash
        roscore

      3. run topic_demo talker

        source /opt/ros/noetic/setup.bash
        cd catkin_ws
        source devel/setup.bash
        rosrun topic_demo talker

      4. run topic_demo listener

        source /opt/ros/noetic/setup.bash
        cd catkin_ws
        source devel/setup.bash
        rosrun topic_demo listener


        ROS2-turtlesim
