      Installing and Deploying HA

      This section describes how to install and deploy an HA cluster.

      Installation and Deployment

      • Prepare the environment: At least two physical machines or VMs with openEuler 22.03 LTS SP2 installed are required. (This section uses two physical machines or VMs as an example.) For details about how to install openEuler 22.03 LTS SP2, see the openEuler 22.03 LTS SP2 Installation Guide.

      Modifying the Host Name and the /etc/hosts File

      • Note: You need to perform the following operations on both hosts. The following takes one host as an example.

      Before using the HA software, ensure that all host names have been changed and written into the /etc/hosts file.

      • Run the following command to change the host name:
      hostnamectl set-hostname ha1

      • Edit the /etc/hosts file and write the following fields:
      172.30.30.65 ha1
      172.30.30.66 ha2


      Configuring the Yum Repository

      After the system is successfully installed, the Yum source is configured by default. The file location is stored in the /etc/yum.repos.d/openEuler.repo file. The HA software package uses the following sources:

      [OS]
      name=OS
      baseurl=http://repo.openeuler.org/openEuler-22.03-LTS-SP2/OS/$basearch/
      enabled=1
      gpgcheck=1
      gpgkey=http://repo.openeuler.org/openEuler-22.03-LTS-SP2/OS/$basearch/RPM-GPG-KEY-openEuler

      [everything]
      name=everything
      baseurl=http://repo.openeuler.org/openEuler-22.03-LTS-SP2/everything/$basearch/
      enabled=1
      gpgcheck=1
      gpgkey=http://repo.openeuler.org/openEuler-22.03-LTS-SP2/everything/$basearch/RPM-GPG-KEY-openEuler

      [EPOL]
      name=EPOL
      baseurl=http://repo.openeuler.org/openEuler-22.03-LTS-SP2/EPOL/$basearch/
      enabled=1
      gpgcheck=1
      gpgkey=http://repo.openeuler.org/openEuler-22.03-LTS-SP2/OS/$basearch/RPM-GPG-KEY-openEuler


      Installing the HA Software Package Components

      yum install -y corosync pacemaker pcs fence-agents fence-virt corosync-qdevice sbd drbd drbd-utils


      Setting the hacluster User Password

      passwd hacluster


      Modifying the /etc/corosync/corosync.conf File

      totem {
              version: 2
              cluster_name: hacluster
               crypto_cipher: none
              crypto_hash: none
      }
      logging {
              fileline: off
              to_stderr: yes
              to_logfile: yes
              logfile: /var/log/cluster/corosync.log
              to_syslog: yes
              debug: on
             logger_subsys {
                     subsys: QUORUM
                     debug: on
              }
      }
      quorum {
                 provider: corosync_votequorum
                 expected_votes: 2
                 two_node: 1
             }
      nodelist {
             node {
                     name: ha1
                     nodeid: 1
                     ring0_addr: 172.30.30.65
                     }
              node {
                     name: ha2
                     nodeid: 2
                     ring0_addr: 172.30.30.66
                     }
              }


      Managing the Services

      Disabling the Firewall

      systemctl stop firewalld


      Change the status of SELINUX in the /etc/selinux/config file to disabled.

      SELINUX=disabled


      Reboot the systen for the SELinux configuration to take effect.

      reboot


      Managing the pcs Service

      • Run the following command to start the pcs service:
      systemctl start pcsd

      • Run the following command to query the pcs service status:
      systemctl status pcsd


      The service is started successfully if the following information is displayed:

      Managing the Pacemaker Service

      • Run the following command to start the Pacemaker service:
      systemctl start pacemaker

      • Run the following command to query the Pacemaker service status:
      systemctl status pacemaker

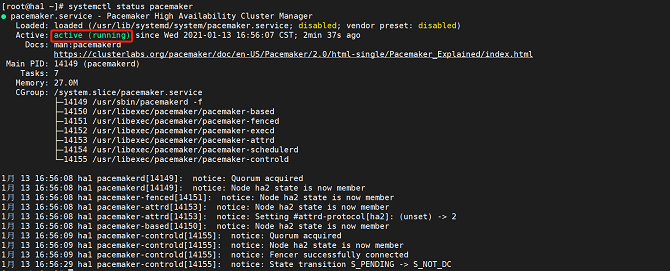

      The service is started successfully if the following information is displayed:

      Managing the Corosync Service

      • Run the following command to start the Corosync service:
      systemctl start corosync

      • Run the following command to query the Corosync service status:
      systemctl status corosync


      The service is started successfully if the following information is displayed:

      Performing Node Authentication

      • Note: Run this command on only one node.
      pcs host auth ha1 ha2


      Accessing the Front-End Management Platform

      After the preceding services are started, open the browser (Chrome or Firefox is recommended) and enter https://localhost:2224 in the navigation bar.

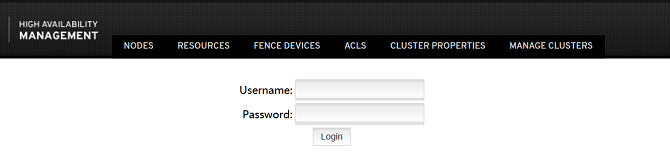

      • This page is the native management platform.

      For details about how to install the management platform newly developed by the community, see https://gitee.com/openeuler/ha-api/blob/master/docs/build.md.

      • The following is the management platform newly developed by the community.

      • The next chapter describes how to quickly use an HA cluster and add an instance. For details, see the HA Usage Example.
