      Trusted Computing

      Trusted Computing Basics

      What Is Trusted Computing

      The definition of being trusted varies with international organizations.

      1. Trusted Computing Group (TCG):

        An entity that is trusted always achieves the desired goal in an expected way.

      2. International Organization for Standardization (ISO) and International Electrotechnical Commission (IEC) (1999):

        The components, operations, or processes involved in computing are predictable under any conditions and are resistant to viruses and a certain degree of physical interference.

      3. IEEE Computer Society Technical Committee on Dependable Computing:

        Being trusted means that the services provided by the computer system can be proved to be reliable, and mainly refers to the reliability and availability of the system.

      In short, being trusted means that the system operates according to a pre-determined design and policy.

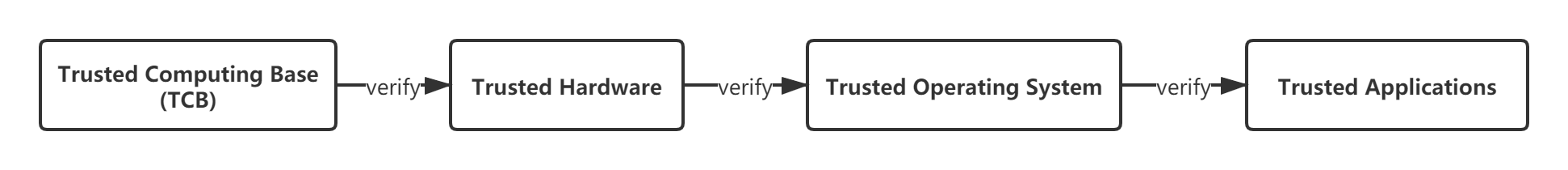

      A trusted computing system consists of a root of trust, a trusted hardware platform, operating system (OS), and application. The basic idea of the system is to create a trusted computing base (TCB) first, and then establish a trust chain that covers the hardware platform, OS, and application. In the trust chain, authentication is performed from the root to the next level, extending trust level by level and building a secure and trusted computing environment.

      Unlike the traditional security mechanism that eliminates viruses without solving the root of the problem, trusted computing adopts the whitelist mechanism to allow only authorized kernels, kernel modules, and applications to run on the system. The system will reject the execution of a program that is unknown or has been changed.

      Kernel Integrity Measurement Architecture (IMA)

      Overview

      IMA

      The integrity measurement architecture (IMA) is a subsystem in the kernel. The IMA can measure files accessed through execve(), mmap(), and open() systems based on user-defined policies. The measurement result can be used for local or remote attestation, or can be compared with an existing reference value to control the access to files.

      According to the Wiki definition, the function of the kernel integrity subsystem includes three parts:

      • Measure: Detects accidental or malicious modifications to files, either remotely or locally.
      • Appraise: Measures a file and compares it with a reference value stored in the extended attribute to control the integrity of the local file.
      • Audit: Writes the measurement result into system logs for auditing.

      Figuratively, IMA measurement is an observer that only records modification without interfering in it, and IMA appraisal is more like a strict security guard that rejects any unauthorized access to programs.

      EVM

      The extended verification module (EVM) is used to calculate a hash value based on the security extended attributes of a file in the system, including security.ima and security.selinux. Then this value is signed by the key stored in the TPM or other trusted environments. The signature value is stored in security.evm and cannot be tampered with. If the value is tampered with, the signature verification fails when the file is accessed again.

      In summary, the EVM is used to provide offline protection for security extended attributes by calculating the digest of the attributes and signing and storing them in security.evm.

      IMA Digest Lists

      IMA Digest Lists are an enhancement of the original kernel integrity protection mechanism provided by openEuler. It replaces the original IMA mechanism to protect file integrity.

      Digest lists are binary data files in a special format. Each digest list corresponds to an RPM package and records the hash values of protected files (executable files and dynamic library files) in the RPM package.

      After the startup parameters are correctly configured, the kernel maintains a hash table (invisible to the user space) and provides interfaces (digest_list_data and digest_list_data_del) that update the hash table using securityfs. The digest lists are signed by the private key when they are built. When uploaded to the kernel through the interface, the digest lists need to be verified by the public key in the kernel.

      When IMA appraisal is enabled, each time an executable file or dynamic library file is accessed, the hook in the kernel is invoked to calculate the hash values of the file content and extended attributes and search in the kernel hash table. If the calculated hash values match the one in the table, the file is allowed to be executed. Otherwise, the access is denied.

      1599719649188

      The IMA Digest Lists extension provided by the openEuler kernel provides higher security, performance, and usability than the native IMA mechanism of the kernel community, facilitating the implementation of the integrity protection mechanism in the production environment.

      • A complete trust chain for high security

        The native IMA mechanism requires that the file extended attribute be generated and marked in advance on the live network. When the file is accessed, the file extended attribute is used as a reference value, resulting in an incomplete trust chain.

        The IMA Digest Lists extension saves the reference digest value of the file in the kernel space. During the construction, the reference digest value of the file is carried in the released RPM package in the form of a digest list. When the RPM package is installed, the digest list is imported and the signature is verified, ensuring that the reference value comes from the software publisher and implementing a complete trust chain.

      • Superior performance

        The trusted platform module (TPM) chip is a low-speed chip, making the PCR extension operation a performance bottleneck in the IMA measurement scenario. To shatter this bottleneck, the Digest Lists extension reduces unnecessary PCR extension operations while ensuring security, providing 65% higher performance than the native IMA mechanism.

        In the IMA appraisal scenario, the Digest Lists extension performs signature verification in the startup phase to prevent signature verification from being performed each time the file is accessed. This helps deliver a 20% higher file access performance in the operation phase than that in the native IMA appraisal scenario.

      • Fast deployment and smooth upgrade

        When the native IMA mechanism is deployed for the first time or the software package is updated, you need to switch to the fix mode, manually mark the extended attributes of the file, and then restart the system to enter the enforcing mode. In this way, the installed program can be accessed normally.

        The Digest Lists extension can be used immediately after the installation is completed. In addition, the RPM package can be directly installed or upgraded in the enforcing mode without restarting the system or manually marking the extended attributes of the file. This minimizes user perception during the operation, allowing for quick deployment and smooth upgrade on the live network.

      Note: The IMA Digest Lists extension advances the signature verification of the native IMA to the startup phase. This causes the assumption that the memory in the kernel space cannot be tampered with. As a result, the IMA depends on other security mechanisms (secure startup of kernel module and dynamic memory measurement) to protect the integrity of the kernel memory.

      However, either the native IMA mechanism of the community or the IMA Digest Lists extension is only a link in the trust chain of trusted computing, and cannot ensure the system security alone. Security construction is always a systematic project that builds in-depth defense.

      Constraints

      1. The current IMA appraisal mode can only protect immutable files in the system, including executable files and dynamic library files.
      2. The IMA provides integrity measurement at the application layer. The security of the IMA depends on the reliability of the previous links.
      3. Currently, the IMA does not support the import of the third-party application digest lists.
      4. The startup log may contain Unable to open file: /etc/keys/x509_ima.der. This error is reported from the open source community and does not affect the use of the IMA digest lists feature.
      5. In the ARM version, audit errors may occur when the log mode is enabled for the IMA. This occurs because the modprobe loads the kernel module before the digest lists are imported, but does not affect the normal functions.

      Application Scenario

      IMA Measurement

      The purpose of IMA measurement is to detect unexpected or malicious modifications to system files. The measurement result can be used for local or remote attestation.

      If a TPM chip exists in the system, the measurement result is extended to a specified PCR register of the TPM chip. Due to the unidirectional PCR extension and the hardware security of the TPM chip, a user cannot modify the extended measurement result, thereby ensuring authenticity of the measurement result.

      The file scope and triggering conditions of IMA measurement can be configured by the user using the IMA policy.

      By default, IMA is disabled. However, the system searches for the ima-policy policy file in the /etc/ima/ path. If the file is found, the system measures the files in the system based on the policy during startup. If you do not want to manually compile the policy file, you can configure the ima_policy=tcb in the startup parameters using the default policy. For details about more policy parameters, see the section IMA Startup Parameters in Appendix.

      You can check the currently loaded IMA policy in the /sys/kernel/security/ima/policy file. The IMA measurement log is located in the /sys/kernel/security/ima/ascii_runtime_measurements file, as shown in the following figure:

      $ head /sys/kernel/security/ima/ascii_runtime_measurements
      10 ddee6004dc3bd4ee300406cd93181c5a2187b59b ima-ng sha1:9797edf8d0eed36b1cf92547816051c8af4e45ee boot_aggregate
      10 180ecafba6fadbece09b057bcd0d55d39f1a8a52 ima-ng sha1:db82919bf7d1849ae9aba01e28e9be012823cf3a /init
      10 ac792e08a7cf8de7656003125c7276968d84ea65 ima-ng sha1:f778e2082b08d21bbc59898f4775a75e8f2af4db /bin/bash
      10 0a0d9258c151356204aea2498bbca4be34d6bb05 ima-ng sha1:b0ab2e7ebd22c4d17d975de0d881f52dc14359a7 /lib64/ld-2.27.so
      10 0d6b1d90350778d58f1302d00e59493e11bc0011 ima-ng sha1:ce8204c948b9fe3ae67b94625ad620420c1dc838 /etc/ld.so.cache
      10 d69ac2c1d60d28b2da07c7f0cbd49e31e9cca277 ima-ng sha1:8526466068709356630490ff5196c95a186092b8 /lib64/libreadline.so.7.0
      10 ef3212c12d1fbb94de9534b0bbd9f0c8ea50a77b ima-ng sha1:f80ba92b8a6e390a80a7a3deef8eae921fc8ca4e /lib64/libc-2.27.so
      10 f805861177a99c61eabebe21003b3c831ccf288b ima-ng sha1:261a3cd5863de3f2421662ba5b455df09d941168 /lib64/libncurses.so.6.1
      10 52f680881893b28e6f0ce2b132d723a885333500 ima-ng sha1:b953a3fa385e64dfe9927de94c33318d3de56260 /lib64/libnss_files-2.27.so
      10 4da8ce3c51a7814d4e38be55a2a990a5ceec8b27 ima-ng sha1:99a9c095c7928ecca8c3a4bc44b06246fc5f49de /etc/passwd


      From left to right, the content of each record indicates:

      1. PCR: PCR register for extending measurement results (The default value is 10. This register is valid only when the TPM chip is installed in the system.)
      2. Template hash value: hash value that is finally used for extension, combining the file content hash and the length and value of the file path
      3. Template: template of the extended measurement value, for example, ima-ng
      4. File content hash value: hash value of the measured file content
      5. File path: path of the measured file
      6. The ko compression feature is enabled in this version. When loading a compressed ko file, if the appraise func=MODULE_CHECK policy needs to be enabled for IMA, set module.sig_enforce=1 in the boot parameters.

      IMA Appraisal

      The purpose of IMA appraisal is to control access to local files by comparing the reference value with the standard reference value.

      IMA uses the security extension attributes security.ima and security.evm to store the reference values of file integrity measurement.

      • security.ima: stores the hash value of the file content
      • security.evm: stores the hash value signature of a file extended attribute

      When a protected file is accessed, the hook in the kernel is triggered to verify the integrity of the extended attributes and content of the file.

      1. Use the public key in the kernel keyring to verify the signature value in the extended attribute of the security.evm file, and compare this signature value with the hash value of the extended attribute of the current file. If they match, the extended attribute of the file is complete (including security.ima).
      2. When the extended attribute of the file is complete, the system compares the extended attribute of the file security.ima with the digest value of the current file content. If they match, the system allows for the access to the file.

      Likewise, the file scope and trigger conditions for IMA appraisal can be configured by users using IMA policies.

      IMA Digest Lists

      Currently, the IMA Digest Lists extension supports the following three combinations of startup parameters:

      • IMA measurement mode:

        ima_policy=exec_tcb ima_digest_list_pcr=11

      • IMA appraisal log mode + IMA measurement mode:

        ima_template=ima-sig ima_policy="exec_tcb|appraise_exec_tcb|appraise_exec_immutable" initramtmpfs ima_hash=sha256 ima_appraise=log evm=allow_metadata_writes evm=x509 ima_digest_list_pcr=11 ima_appraise_digest_list=digest

      • IMA appraisal enforcing mode + IMA measurement mode:

        ima_template=ima-sig ima_policy="exec_tcb|appraise_exec_tcb|appraise_exec_immutable" initramtmpfs ima_hash=sha256 ima_appraise=enforce-evm evm=allow_metadata_writes evm=x509 ima_digest_list_pcr=11 ima_appraise_digest_list=digest


      Procedure

      Initial Deployment in the Native IMA Scenario

      When the system is started for the first time, you need to configure the following startup parameters:

      ima_appraise=fix ima_policy=appraise_tcb


      In the fix mode, the system can be started when no reference value is available. appraise_tcb corresponds to an IMA policy. For details, see IMA Startup Parameters in the Appendix.

      Next, you need to access all the files that need to be verified to add IMA extended attributes to them:

      time find / -fstype ext4 -type f -uid 0 -exec dd if='{}' of=/dev/null count=0 status=none \;


      This process takes some time. After the command is executed, you can see the marked reference value in the extended attributes of the protected file.

      $ getfattr -m - -d /sbin/init
      # file: sbin/init
      security.ima=0sAXr7Qmun5mkGDS286oZxCpdGEuKT
      security.selinux="system_u:object_r:init_exec_t"


      Configure the following startup parameters and restart the system:

      ima_appraise=enforce ima_policy=appraise_tcb


      Initial Deployment in the Digest Lists Scenario

      1. Set kernel parameters to enter the log mode.

        Add the following parameters to the /boot/efi/EFI/openEuler/grub.cfg file:

        ima_template=ima-sig ima_policy="exec_tcb|appraise_exec_tcb|appraise_exec_immutable" initramtmpfs ima_hash=sha256 ima_appraise=log evm=allow_metadata_writes evm=x509 ima_digest_list_pcr=11 ima_appraise_digest_list=digest


        Run the reboot command to restart the system and enter the log mode. In this mode, integrity check has been enabled, but the system can be started even if the check fails.

      2. Install the dependency package.

        Run the yum command to install digest-list-tools and ima-evm-utils. Ensure that the versions are not earlier than the following:

        $ yum install digest-list-tools ima-evm-utils
        $ rpm -qa | grep digest-list-tools
        digest-list-tools-0.3.93-1.oe1.x86_64
        $ rpm -qa | grep ima-evm-utils
        ima-evm-utils-1.2.1-9.oe1.x86_64

      3. If the plymouth package is installed, you need to add -a to the end of the cp command in line 147 in the /usr/libexec/plymouth/plymouth-populate-initrd script file:

            ...
            ddebug "Installing $_src"
         cp -a --sparse=always -pfL "$PLYMOUTH_SYSROOT$_src" "${initdir}/$target"
        }

      4. Run dracut to generate initrd again:

        dracut -f -e xattr


        Edit the /boot/efi/EFI/openEuler/grub.cfg file and change ima_appraise=log to ima_appraise=enforce-evm.

        ima_template=ima-sig ima_policy="exec_tcb|appraise_exec_tcb|appraise_exec_immutable" initramtmpfs ima_hash=sha256 ima_appraise=enforce-evm evm=allow_metadata_writes evm=x509 ima_digest_list_pcr=11 ima_appraise_digest_list=digest


        Run the reboot command to complete the initial deployment.

      Building Digest Lists on OBS

      Open Build Service (OBS) is a compilation system that was first used for building software packages in openSUSE and supports distributed compilation of multiple architectures.

      Before building a digest list, ensure that your project contains the following RPM packages from openEuler:

      • digest-list-tools
      • pesign-obs-integration
      • selinux-policy
      • rpm
      • openEuler-rpm-config

      Add Project Config in the deliverable project:

      Preinstall: pesign-obs-integration digest-list-tools selinux-policy-targeted
      Macros:
      %__brp_digest_list /usr/lib/rpm/openEuler/brp-digest-list %{buildroot}
      :Macros

      • The following content is added to Preinstall: digest-list-tools for generating the digest list; pesign-obs-integration for generating the digest list signature; selinux-policy-targeted, ensuring that the SELinux label in the environment is correct when the digest list is generated.
      • Define the macro %__brp_digest_list in Macros. The RPM runs this macro to generate a digest list for the compiled binary file in the build phase. This macro can be used as a switch to control whether the digest list is generated in the project.

      After the configuration is completed, OBS automatically performs full build. In normal cases, the following two files are added to the software package:

      • /etc/ima/digest_lists/0-metadata_list-compact-[package name]-[version number]
      • /etc/ima/digest_lists.tlv/0-metadata_list-compact_tlv-[package name]-[version number]

      Building Digest Lists on Koji

      Koji is a compilation system of the Fedora community. The openEuler community will support Koji in the future.

      FAQs

      1. Why does the system fail to be started, or commands fail to be executed, or services are abnormal after the system is started in enforcing mode?

        In enforcing mode, IMA controls file access. If the content or extended attributes of a file to be accessed are incomplete, the access will be denied. If key commands that affect system startup cannot be executed, the system cannot be started.

        Check whether the following problems exist:

        • Check whether the digest list is added to initrd.

          Check whether the dracut command is executed to add the digest list to the kernel during the initial deployment. If the digest list is not added to initrd, the digest list cannot be imported during startup. As a result, the startup fails.

        • Check whether the official RPM package is used.

          If a non-official openEuler RPM package is used, the RPM package may not carry the digest list, or the private key for signing the digest list does not match the public key for signature verification in the kernel. As a result, the digest list is not imported to the kernel.

        If the cause is not clear, enter the log mode and find the cause from the error log:

        dmesg | grep appraise

      2. Why access control is not performed on system files in enforcing mode?

        When the system does not perform access control on the file as expected, check whether the IMA policy in the startup parameters is correctly configured:

        $ cat /proc/cmdline
        ...ima_policy=exec_tcb|appraise_exec_tcb|appraise_exec_immutable...


        Run the following command to check whether the IMA policy in the current kernel has taken effect:

        cat /sys/kernel/security/ima/policy


        If the policy file is empty, it indicates that the policy fails to be set. In this case, the system does not perform access control.

      3. After the initial deployment is completed, do I need to manually run the dracut command to generate initrd after installing, upgrading, or uninstalling the software package?

        No. The digest_list.so plug-in provided by the RPM package can automatically update the digest list at the RPM package granularity, allowing users to be unaware of the digest list.

      Appendixes

      Description of the IMA securityfs Interface

      The native IMA provides the following securityfs interfaces:

      Note: The following interface paths are in the /sys/kernel/security/ directory.

      PathPermissionDescription
      ima/policy600IMA policy interface
      ima/ascii_runtime_measurement440IMA measurement result in ASCII code format
      ima/binary_runtime_measurement440IMA measurement result in binary format
      ima/runtime_measurement_count440Measurement result statistics
      ima/violations440Number of IMA measurement result conflicts
      evm660EVM mode, that is, the mode for verifying the integrity of extended attributes of files

      The values of /sys/kernel/security/evm are as follows:

      • 0: EVM uninitialized.

      • 1: Uses HMAC (symmetric encryption) to verify the integrity of extended attributes.

      • 2: Uses the public key signature (asymmetric encryption) to verify the integrity of extended attributes.

      • 6: Disables the integrity check of extended attributes (This mode is used for openEuler).

      The additional securityfs interfaces provided by the IMA Digest Lists extension are as follows:

      PathPermissionDescription
      ima/digests_count440Total number of digests (IMA+EVM) in the system hash table
      ima/digest_list_data200New interfaces in the digest list
      ima/digest_list_data_del200Interfaces deleted from the digest list

      IMA Policy Syntax

      Each IMA policy statement must start with an action represented by the keyword action and be followed by a filtering condition:

      • action: indicates the action of a policy. Only one action can be selected for a policy.

        Note: You can ignore the word action and directly write dont_measure instead of action=dont_measure.

      • func: indicates the type of the file to be measured or authenticated. It is often used together with mask. Only one func can be selected for a policy.

        • FILE_CHECK can be used only with MAY_EXEC, MAY_WRITE, and MAY_READ.
        • MODULE_CHECK, MMAP_CHECK, and BPRM_CHECK can be used only with MAY_EXEC.
        • A combination without the preceding matching relationships does not take effect.
      • mask: indicates the operation upon which files will be measured or appraised. Only one mask can be selected for a policy.

      • fsmagic: indicates the hexadecimal magic number of the file system type, which is defined in the /usr/include/linux/magic.h file.

        Note: By default, all file systems are measured unless you use the dont_measure/dont_appraise to mark a file system not to be measured.

      • fsuid: indicates the UUID of a system device. The value is a hexadecimal string of 16 characters.

      • objtype: indicates the file type. Only one file type can be selected for a policy.

        Note: objtype has a finer granularity than func. For example, obj_type=nova_log_t indicates the nova log file.

      • uid: indicates the user (represented by the user ID) who performs operations on the file. Only one uid can be selected for a policy.

      • fowner: indicates the owner (represented by the user ID) of the file. Only one fowner can be selected for a policy.

      The values and description of the keywords are as follows:

      KeywordValueDescription
      actionmeasureEnables IMA measurement
      dont_measureDisables IMA measurement
      appraiseEnables IMA appraisal
      dont_appraiseDisables IMA appraisal
      auditEnables audit
      funcFILE_CHECKFile to be opened
      MODULE_CHECKKernel module file to be loaded
      MMAP_CHECKDynamic library file to be mapped to the memory space of the process
      BRPM_CHECKFile to be executed (excluding script files opened by programs such as /bin/bash)
      POLICY_CHECKFile to be loaded as a supplement to the IMA policy
      FIRMWARE_CHECKFirmware to be loaded into memory
      DIGEST_LIST_CHECKDigest list file to be loaded into the kernel
      KEXEC_KERNEL_CHECKkexec kernel to be switched to
      maskMAY_EXECExecutes a file
      MAY_WRITEWrites data to a file This operation is not recommended because it is restricted by open source mechanisms such as echo and vim (the essence of modification is to create a temporary file and then rename it). The IMA measurement of MAY_WRITE is not triggered each time the file is modified.
      MAY_READReads a file
      MAY_APPENDExtends file attributes
      fsmagicfsmagic=xxxHexadecimal magic number of the file system type
      fsuuidfsuuid=xxxUUID of a system device. The value is a hexadecimal string of 16 characters.
      fownerfowner=xxxUser ID of the file owner
      uiduid=xxxID of the user who operates the file
      obj_typeobj_type=xxx_tFile type (based on the SELinux tag)
      pcrpcr=Selects the PCR used to extend the measurement values in the TPM. The default value is 10.
      appraise_typeimasigSignature-based IMA appraisal
      meta_immutableEvaluates the extended attributes of the file based on signatures (supporting the digest list).

      Note: PATH_CHECK is equivalent to FILE_CHECK, and FILE_MMAP is equivalent to MMAP_CHECK. They are not mentioned in this table.

      IMA Native Startup Parameters

      The following table lists the kernel startup parameters of the native IMA.

      ParameterValueDescription
      ima_appraiseoffDisables the IMA appraisal mode. The integrity check is not performed when the file is accessed and no new reference value is generated for the file.
      enforceEnables the IMA appraisal enforcing mode to perform the integrity check when the file is accessed. That is, the file digest value is calculated and compared with the reference value. If the comparison fails, the file access is rejected. In this case, the IMA generates a new reference value for the new file.
      fixEnables the IMA repair mode. In this mode, the reference value of a protected file can be updated.
      logEnables the IMA appraisal log mode to perform the integrity check when the file is accessed. However, commands can be executed even if the check fails, and only logs are recorded.
      ima_policytcbMeasures all file execution, dynamic library mapping, kernel module import, and device driver loading. The file read behavior of the root user is also measured.
      appraise_tcbEvaluates all files whose owner is the root user.
      secure_bootEvaluates the kernel module import, hardware driver loading, kexec kernel switchover, and IMA policies. The prerequisite is that these files have IMA signatures.
      ima_tcbNoneEquivalent to ima_policy=tcb.
      ima_appraise_tcbNoneEquivalent to ima_policy=appraise_tcb.
      ima_hashsha1/md5/...IMA digest algorithm. The default value is sha1.
      ima_templateimaIMA measurement extension template
      ima-ngIMA measurement extension template
      ima-sigIMA measurement extension template
      integrity_audit0Basic integrity audit information (default)
      1Additional integrity audit information

      Note: The ima_policy parameter can specify multiple values at the same time, for example, ima_policy=tcb|appraise_tcb. After the system is started, the IMA policy of the system is the sum of the policies for the two parameters.

      The IMA policy for the ima_policy=tcb startup parameter is as follows:

      # PROC_SUPER_MAGIC = 0x9fa0
      dont_measure fsmagic=0x9fa0
      # SYSFS_MAGIC = 0x62656572
      dont_measure fsmagic=0x62656572
      # DEBUGFS_MAGIC = 0x64626720
      dont_measure fsmagic=0x64626720
      # TMPFS_MAGIC = 0x01021994
      dont_measure fsmagic=0x1021994
      # DEVPTS_SUPER_MAGIC=0x1cd1
      dont_measure fsmagic=0x1cd1
      # BINFMTFS_MAGIC=0x42494e4d
      dont_measure fsmagic=0x42494e4d
      # SECURITYFS_MAGIC=0x73636673
      dont_measure fsmagic=0x73636673
      # SELINUX_MAGIC=0xf97cff8c
      dont_measure fsmagic=0xf97cff8c
      # SMACK_MAGIC=0x43415d53
      dont_measure fsmagic=0x43415d53
      # CGROUP_SUPER_MAGIC=0x27e0eb
      dont_measure fsmagic=0x27e0eb
      # CGROUP2_SUPER_MAGIC=0x63677270
      dont_measure fsmagic=0x63677270
      # NSFS_MAGIC=0x6e736673
      dont_measure fsmagic=0x6e736673
      measure func=MMAP_CHECK mask=MAY_EXEC
      measure func=BPRM_CHECK mask=MAY_EXEC
      measure func=FILE_CHECK mask=MAY_READ uid=0
      measure func=MODULE_CHECK
      measure func=FIRMWARE_CHECK


      The IMA policy for the ima_policy=tcb_appraise startup parameter is as follows:

      # PROC_SUPER_MAGIC = 0x9fa0
      dont_appraise fsmagic=0x9fa0
      # SYSFS_MAGIC = 0x62656572
      dont_appraise fsmagic=0x62656572
      # DEBUGFS_MAGIC = 0x64626720
      dont_appraise fsmagic=0x64626720
      # TMPFS_MAGIC = 0x01021994
      dont_appraise fsmagic=0x1021994
      # RAMFS_MAGIC
      dont_appraise fsmagic=0x858458f6
      # DEVPTS_SUPER_MAGIC=0x1cd1
      dont_appraise fsmagic=0x1cd1
      # BINFMTFS_MAGIC=0x42494e4d
      dont_appraise fsmagic=0x42494e4d
      # SECURITYFS_MAGIC=0x73636673
      dont_appraise fsmagic=0x73636673
      # SELINUX_MAGIC=0xf97cff8c
      dont_appraise fsmagic=0xf97cff8c
      # SMACK_MAGIC=0x43415d53
      dont_appraise fsmagic=0x43415d53
      # NSFS_MAGIC=0x6e736673
      dont_appraise fsmagic=0x6e736673
      # CGROUP_SUPER_MAGIC=0x27e0eb
      dont_appraise fsmagic=0x27e0eb
      # CGROUP2_SUPER_MAGIC=0x63677270
      dont_appraise fsmagic=0x63677270
      appraise fowner=0


      The IMA policy for the ima_policy=secure_boot startup parameter is as follows:

      appraise func=MODULE_CHECK appraise_type=imasig
      appraise func=FIRMWARE_CHECK appraise_type=imasig
      appraise func=KEXEC_KERNEL_CHECK appraise_type=imasig
      appraise func=POLICY_CHECK appraise_type=imasig


      IMA Digest List Startup Parameters

      The kernel startup parameters added to the IMA digest list feature are as follows:

      ParameterValueDescription
      integrity0Disables the IMA feature (by default)
      1Enables the IMA feature
      ima_appraiseoffDisables the IMA appraisal mode
      enforce-evmEnables the IMA appraisal forced mode to perform the integrity check when the file is accessed and control the access.
      ima_appraise_digest_listdigestWhen the EVM is disabled, the abstract list is used for IMA appraise. The abstract list protects both the content and extended attributes of the file.
      digest-nometadataIf the EVM digest value does not exist, the integrity check is performed only based on the IMA digest value (the file extended attribute is not protected).
      evmfixAllows for any modification to the extended attribute (even if the modification causes the failure to verify the integrity of the extended attribute).
      ignoreAllowed to modify the extended attribute only when it does not exist or is incorrect.
      ima_policyexec_tcbIMA measurement policy. For details, see the following policy description.
      appraise_exec_tcbIMA appraisal policy. For details, see the following policy description.
      appraise_exec_immutableIMA appraisal policy. For details, see the following policy description.
      ima_digest_list_pcr11Uses PCR 11 instead of PCR 10, and uses only the digest list for measurement.
      +11The PCR 10 measurement is reserved. When the TPM chip is available, the measurement result is written to the TPM chip.
      initramtmpfsNoneAdds the support for tmpfs.

      The IMA policy for the ima_policy=exec_tcb startup parameter is as follows:

      dont_measure fsmagic=0x9fa0
      dont_measure fsmagic=0x62656572
      dont_measure fsmagic=0x64626720
      dont_measure fsmagic=0x1cd1
      dont_measure fsmagic=0x42494e4d
      dont_measure fsmagic=0x73636673
      dont_measure fsmagic=0xf97cff8c
      dont_measure fsmagic=0x43415d53
      dont_measure fsmagic=0x27e0eb
      dont_measure fsmagic=0x63677270
      dont_measure fsmagic=0x6e736673
      measure func=MMAP_CHECK mask=MAY_EXEC
      measure func=BPRM_CHECK mask=MAY_EXEC
      measure func=MODULE_CHECK
      measure func=FIRMWARE_CHECK
      measure func=POLICY_CHECK
      measure func=DIGEST_LIST_CHECK
      measure parser


      The IMA policy for the ima_policy=appraise_exec_tcb startup parameter is as follows:

      appraise func=MODULE_CHECK appraise_type=imasig
      appraise func=FIRMWARE_CHECK appraise_type=imasig
      appraise func=KEXEC_KERNEL_CHECK appraise_type=imasig
      appraise func=POLICY_CHECK appraise_type=imasig
      appraise func=DIGEST_LIST_CHECK appraise_type=imasig
      dont_appraise fsmagic=0x9fa0
      dont_appraise fsmagic=0x62656572
      dont_appraise fsmagic=0x64626720
      dont_appraise fsmagic=0x858458f6
      dont_appraise fsmagic=0x1cd1
      dont_appraise fsmagic=0x42494e4d
      dont_appraise fsmagic=0x73636673
      dont_appraise fsmagic=0xf97cff8c
      dont_appraise fsmagic=0x43415d53
      dont_appraise fsmagic=0x6e736673
      dont_appraise fsmagic=0x27e0eb
      dont_appraise fsmagic=0x63677270


      The IMA policy for the ima_policy=appraise_exec_immutable startup parameter is as follows:

      appraise func=BPRM_CHECK appraise_type=imasig appraise_type=meta_immutable
      appraise func=MMAP_CHECK
      appraise parser appraise_type=imasig


      IMA Kernel Compilation Options

      The native IMA provides the following compilation options:

      Compilation OptionDescription
      CONFIG_INTEGRITYIMA/EVM compilation switch
      CONFIG_INTEGRITY_SIGNATUREEnables IMA signature verification
      CONFIG_INTEGRITY_ASYMMETRIC_KEYSEnables IMA asymmetric signature verification
      CONFIG_INTEGRITY_TRUSTED_KEYRINGEnables IMA/EVM key ring
      CONFIG_INTEGRITY_AUDITCompiles the IMA audit module
      CONFIG_IMAIMA compilation switch
      CONFIG_IMA_WRITE_POLICYAllows updating the IMA policy in the running phase
      CONFIG_IMA_MEASURE_PCR_IDXAllows specifying the PCR number of the IMA measurement
      CONFIG_IMA_LSM_RULESAllows configuring LSM rules
      CONFIG_IMA_APPRAISEIMA appraisal compilation switch
      IMA_APPRAISE_BOOTPARAMEnables IMA appraisal startup parameters
      CONFIG_EVMEVM compilation switch

      The additional compilation options provided by the IMA Digest Lists extension are as follows:

      Compilation OptionDescription
      CONFIG_DIGEST_LISTEnables the IMA Digest List feature

      IMA Performance Reference Data

      The following figure compares the performance when IMA is disabled, native IMA is enabled, and IMA digest list is enabled.


      IMA Root Certificate Configuration

      Currently, openEuler uses the RPM key to sign the IMA digest list. To ensure that the IMA function is available out of the box, openEuler imports the RPM root certificate (PGP certificate) to the kernel by default during kernel compilation. Currently, there are two PGP certificates, namely, the OBS certificate used in the earlier version and the openEuler certificate used in the switchover of openEuler 22.03 LTS SP3:

      # cat /proc/keys | grep PGP
      1909b4ad I------     1 perm 1f030000     0     0 asymmetri private OBS b25e7f66: PGP.rsa b25e7f66 []
      2f10cd36 I------     1 perm 1f030000     0     0 asymmetri openeuler <openeuler@compass-ci.com> fb37bc6f: PGP.rsa fb37bc6f []


      The current kernel does not support the import of the PGP sub-public key, and the switched openEuler certificate uses the sub-key signature. Therefore, the openEuler kernel preprocesses the certificate before compilation, extracts the sub-public key, and imports it to the kernel. For details, see the process_pgp_certs.sh script file in the code repository of the kernel software package: https://gitee.com/src-openeuler/kernel/blob/openEuler-22.03-LTS-SP3/process_pgp_certs.sh.

      If the user does not use the IMA digest list function or uses other keys to implement signature/verification, you can remove the related code and configure the kernel root certificate by yourself.

      Remote Attestation (Kunpeng Security Library)

      Introduction

      This project develops basic security software components running on Kunpeng processors. In the early stage, the project focuses on trusted computing fields such as remote attestation to empower security developers in the community.

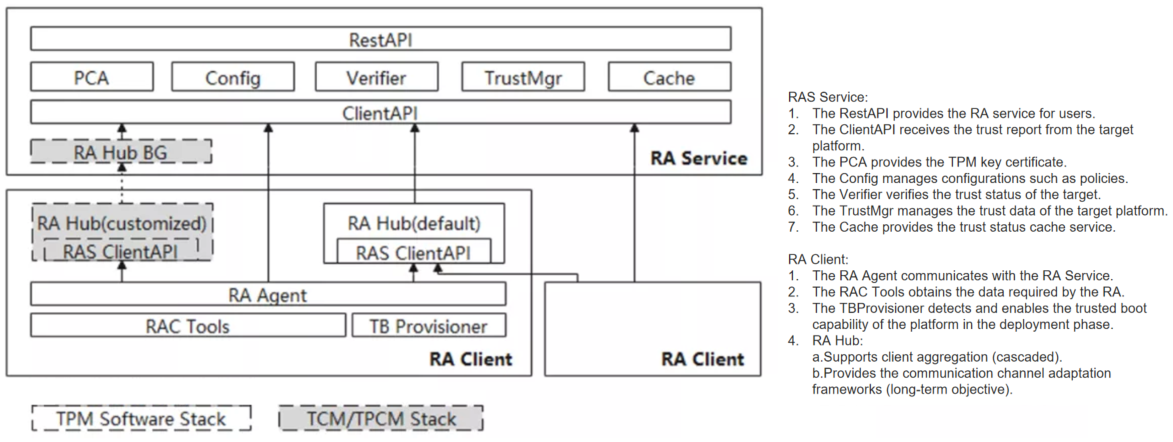

      Software Architecture

      On the platform without TEE enabled, this project can provide the platform remote attestation feature, and its software architecture is shown in the following figure:


      On the platform that has enabled TEE, this project can provide TEE remote attestation feature, and its software architecture is shown in the following figure:


      Installation and Configuration

      1. Run the following command to use the RPM package of the Yum installation program:

        yum install kunpengsecl-ras kunpengsecl-rac kunpengsecl-rahub kunpengsecl-qcaserver kunpengsecl-attester kunpengsecl-tas kunpengsecl-devel

      2. Prepare the database environment. Go to the /usr/share/attestation/ras directory and run the prepare-database-env.sh script to automatically configure the database environment.

      3. The configuration files required for program running are stored in three paths: current path ./config.yaml, home path ${HOME}/.config/attestation/ras(rac)(rahub)(qcaserver)(attester)(tas)/config.yaml, and system path /etc/attestation/ras(rac)(rahub)(qcaserver)(attester)(tas)/config.yaml.

      4. (Optional) To create a home directory configuration file, run the prepare-ras(rac)(hub)(qca)(attester)(tas)conf-env.sh script in /usr/share/attestation/ras(rac)(rahub)(qcaserver)(attester)(tas) after installing the RPM package.

      Options

      RAS Boot Options

      Run the ras command to start the RAS program. Note that you need to provide the ECDSA public key in the current directory and name it ecdsakey.pub. Options are as follows:

        -H  --https         HTTP/HTTPS mode switch. The default value is https(true), false=http.
        -h  --hport         RESTful API port listened by RAS in HTTPS mode.
        -p, --port string   Client API port listened by RAS.
        -r, --rest string   RESTful API port listened by RAS in HTTP mode.
        -T, --token         Generates a verification code for test and exits.
        -t, --test          Starts in test mode.
        -v, --verbose       Prints more detailed RAS runtime log information.
        -V, --version       Prints the RAS version and exits.


      Note:

      1.To use TEE remote attestation feature, you must pre-install the libqca.so and libteec.so library provided by the TEE team. 2.To not use TEE remote attestation feature, you must copy the libqca.so and libteec.so library in ${DESTDIR}/usr/share/attestation/qcaserver path to /usr/lib or /usr/lib64 path.

      RAC Boot Options

      Run the sudo raagent command to start the RAC program. Note that the sudo permission is required to enable the physical TPM module. Options are as follows:

        -s, --server string   Specifies the RAS service port to be connected.
        -t, --test            Starts in test mode.
        -v, --verbose         Prints more detailed RAC runtime log information.
        -V, --version         Prints the RAC version and exits.
        -i, --imalog          Specifies the path of the IMA file.
        -b, --bioslog         Specifies the path of the BIOS file.
        -T, --tatest          Starts in TA test mode.


      Note:

      1.To use TEE remote attestation feature, you must start RAC not in TA test mode. And place the uuid, whether to use TCB, mem_hash and img_hash of the TA to be attestated sequentially in the talist file under the RAC execution path. The format of the talist file is as follows:

      e08f7eca-e875-440e-9ab0-5f381136c600 false ccd5160c6461e19214c0d8787281a1e3c4048850352abe45ce86e12dd3df9fde 46d5019b0a7ffbb87ad71ea629ebd6f568140c95d7b452011acfa2f9daf61c7a


      2.To not use TEE remote attestation feature, you must start RAC in TA test mode. 3.If the physical TPM module cannot be enabled, RAC needs to be started in test mode. We have provided a set of platform benchmark files for RAC to read in test mode. Before starting RAC, you must copy the files in $(DESTDIR)/etc/attestation/default_test directory to directory in which you run RAC.

      QCA Boot Options

      Run the ${DESTDIR}/usr/bin/qcaserver command to start the QCA program. Note that to start QTA normally, the full path of qcaserver must be used, and the CA path parameter in QTA needs to be kept the same as the path. Options are as follows:

        -C, --scenario int    Sets the application scenario of the program, The default value is sce_no_as(0), 1=sce_as_no_daa, 2=sce_as_with_daa.
        -S, --server string   Specifies the open server address/port.


      ATTESTER Boot Options

      Run the attester command to start the ATTESTER program. Options are as follows:

        -B, --basevalue string   Sets the base value file read path
        -M, --mspolicy int       Sets the measurement strategy, which defaults to -1 and needs to be specified manually. 1=compare only img-hash values, 2=compare only hash values, and 3=compare both img-hash and hash values at the same time.
        -S, --server string      Specifies the address of the server to connect to.
        -U, --uuid int           Specifies the trusted apps to verify.
        -V, --version            Prints the program version and exit.
        -T, --test               Reads fixed nonce values to match currently hard-coded trusted reports.


      TAS Boot Options

      Run the tas command to start the TAS program. Options are as follows:

        -T, --token         Generates a verification code for test and exits.


      Note:

      1.To enable the TAS, you must configure the private key for TAS. Run the following command to modify the configuration file in the home directory:

      $ cd ${HOME}/.config/attestation/tas
      $ vim config.yaml
      # The values of the following DAA_GRP_KEY_SK_X and DAA_GRP_KEY_SK_Y are for testing purposes only.
      # Be sure to update their contents to ensure safety before normal use.
      tasconfig:
       port: 127.0.0.1:40008
       rest: 127.0.0.1:40009
       akskeycertfile: ./ascert.crt
       aksprivkeyfile: ./aspriv.key
       huaweiitcafile: ./Huawei IT Product CA.pem
       DAA_GRP_KEY_SK_X: 65a9bf91ac8832379ff04dd2c6def16d48a56be244f6e19274e97881a776543c65a9bf91ac8832379ff04dd2c6def16d48a56be244f6e19274e97881a776543c
       DAA_GRP_KEY_SK_Y: 126f74258bb0ceca2ae7522c51825f980549ec1ef24f81d189d17e38f1773b56126f74258bb0ceca2ae7522c51825f980549ec1ef24f81d189d17e38f1773b56


      Then enter tas to start TAS program.

      2.In an environment with TAS, in order to improve the efficiency of QCA's certificate configuration process, not every boot needs to access the TAS to generate the certificate, but through the localized storage of the certificate. That is, read the certification path configured in config.yaml on QCA side, check if a TAS-issued certificate has been saved locally through the func hasAKCert(s int) bool function. If the certificate is successfully read, there is no need to access TAS. If the certificate cannot be read, you need to access TAS and save the certificate returned by TAS locally.

      API Definition

      RAS APIs

      To facilitate the administrator to manage the target server, RAS and the user TA in the TEE deployed on the target server, the following APIs are designed for calling:

      APIMethod
      /GET
      /{id}GET, POST, DELETE
      /{from}/{to}GET
      /{id}/reportsGET
      /{id}/reports/{reportid}GET, DELETE
      /{id}/basevaluesGET
      /{id}/newbasevaluePOST
      /{id}/basevalues/{basevalueid}GET, POST, DELETE
      /{id}/ta/{tauuid}/statusGET
      /{id}/ta/{tauuid}/tabasevaluesGET
      /{id}/ta/{tauuid}/tabasevalues/{tabasevalueid}GET, POST, DELETE
      /{id}/ta/{tauuid}/newtabasevaluePOST
      /{id}/ta/{tauuid}/tareportsGET
      /{id}/ta/{tauuid}/tareports/{tareportid}GET, POST, DELETE
      /{id}/basevalues/{basevalueid}GET, DELETE
      /versionGET
      /configGET, POST
      /{id}/container/statusGET
      /{id}/device/statusGET

      The usage of the preceding APIs is described as follows:

      To query information about all servers, use /.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/


      To query detailed information about a target server, use the GET method of /{id}. {id} is the unique ID allocated by RAS to the target server.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/1


      To modify information about the target server, use the POST method of /{id}. $AUTHTOKEN is the identity verification code automatically generated by running the ras -T command.

      type clientInfo struct {
        Registered   *bool `json:"registered"`  // Registration status of the target server
        IsAutoUpdate *bool `json:"isautoupdate"`// Target server base value update policy
      }

      curl -X POST -H "Authorization: $AUTHTOKEN" -H "Content-Type: application/json" http://localhost:40002/1 -d '{"registered":false, "isautoupdate":false}'


      To delete a target server, use the DELETE method of /{id}.

      Note: This method does not delete all information about the target server. Instead, it sets the registration status of the target server to false.

      curl -X DELETE -H "Authorization: $AUTHTOKEN" -H "Content-Type: application/json" http://localhost:40002/1


      To query information about all servers in a specified range, use the GET method of /{from}/{to}.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/1/9


      To query all trust reports of the target server, use the GET method of /{id}/reports.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/1/reports


      To query details about a specified trust report of the target server, use the GET method of /{id}/reports/{reportid}. {reportid} indicates the unique ID assigned by RAS to the trust report of the target server.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/1/reports/1


      To delete a specified trust report of the target server, use the DELETE method of /{id}/reports/{reportid}.

      Note:

      This method will delete all information about the specified trusted report, and the report cannot be queried through the API.

      curl -X DELETE -H "Authorization: $AUTHTOKEN" -H "Content-Type: application/json" http://localhost:40002/1/reports/1


      To query all base values of the target server, use the GET method of /{id}/reports/{reportid}.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/1/basevalues


      To add a base value to the target server, use the POST method of /{id}/newbasevalue.

      type baseValueJson struct {
        BaseType   string `json:"basetype"`   // Base value type
        Uuid       string `json:"uuid"`       // ID of a container or device
        Name       string `json:"name"`       // Base value name
        Enabled    bool   `json:"enabled"`    // Whether the base value is available
        Pcr        string `json:"pcr"`        // PCR value
        Bios       string `json:"bios"`       // BIOS value
        Ima        string `json:"ima"`        // IMA value
        IsNewGroup bool   `json:"isnewgroup"` // Whether this is a group of new reference values
      }

      curl -X POST -H "Authorization: $AUTHTOKEN" -H "Content-Type: application/json" http://localhost:40002/1/newbasevalue -d '{"name":"test", "basetype":"host", "enabled":true, "pcr":"testpcr", "bios":"testbios", "ima":"testima", "isnewgroup":true}'


      To query details about a specified base value of a target server, use the get method of /{id}/basevalues/{basevalueid}. {basevalueid} indicates the unique ID allocated by RAS to the specified base value of the target server.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/1/basevalues/1


      To change the availability status of a specified base value of the target server, use the POST method of /{id}/basevalues/{basevalueid}.

      curl -X POST -H "Content-type: application/json" -H "Authorization: $AUTHTOKEN" http://localhost:40002/1/basevalues/1 -d '{"enabled":true}'


      To delete a specified base value of the target server, use the DELETE method of /{id}/basevalues/{basevalueid}.

      Note:

      This method will delete all the information about the specified base value, and the base value cannot be queried through the API.

      curl -X DELETE -H "Authorization: $AUTHTOKEN" -H "Content-Type: application/json" http://localhost:40002/1/basevalues/1


      To query the trusted status of a specific user TA on the target server, use the GET method of the "/{id}/ta/{tauuid}/status" interface. Where {id} is the unique identification number assigned by RAS to the target server, and {tauuid} is the identification number of the specific user TA.

      curl -X GET -H "Content-type: application/json" -H "Authorization: $AUTHTOKEN" http://localhost:40002/1/ta/test/status


      To query all the baseline value information of a specific user TA on the target server, use the GET method of the "/{id}/ta/{tauuid}/tabasevalues" interface.

      curl -X GET -H "Content-type: application/json" http://localhost:40002/1/ta/test/tabasevalues


      To query the details of a specified base value for a specific user TA on the target server, use the GET method of the "/{id}/ta/{tauuid}/tabasevalues/{tabasevalueid}" interface. where {tabasevalueid} is the unique identification number assigned by RAS to the specified base value of a specific user TA on the target server.

      curl -X GET -H "Content-type: application/json" http://localhost:40002/1/ta/test/tabasevalues/1


      To modify the available status of a specified base value for a specific user TA on the target server, use the POST method of the "/{id}/ta/{tauuid}/tabasevalues/{tabasevalueid}" interface.

      curl -X POST -H "Content-type: application/json" -H "Authorization: $AUTHTOKEN"  http://localhost:40002/1/ta/test/tabasevalues/1 --data '{"enabled":true}'


      To delete the specified base value of a specific user TA on the target server, use the DELETE method of the "/{id}/ta/{tauuid}/tabasevalues/{tabasevalueid}" interface.

      Note:

      This method will delete all information about the specified base value, and the base value cannot be queried through the API.

      curl -X DELETE -H "Content-type: application/json" -H "Authorization: $AUTHTOKEN" -k http://localhost:40002/1/ta/test/tabasevalues/1


      To add a baseline value to a specific user TA on the target server, use the POST method of the "/{id}/ta/{tauuid}/newtabasevalue" interface.

      type tabaseValueJson struct {
        Uuid      string `json:"uuid"`       // the identification number of the user TA
        Name      string `json:"name"`       // base value name
        Enabled   bool   `json:"enabled"`    // whether a baseline value is available
        Valueinfo string `json:"valueinfo"`  // mirror hash value and memory hash value
      }

      curl -X POST -H "Content-Type: application/json" -H "Authorization: $AUTHTOKEN" -k http://localhost:40002/1/ta/test/newtabasevalue -d '{"uuid":"test", "name":"testname", "enabled":true, "valueinfo":"test info"}'


      To query the target server for all trusted reports for a specific user TA, use the GET method of the "/{id}/ta/{tauuid}/tareports" interface.

      curl -X GET -H "Content-type: application/json" http://localhost:40002/1/ta/test/tareports


      To query the details of a specified trusted report for a specific user TA on the target server, use the GET method of the "/{id}/ta/{tauuid}/tareports/{tareportid}" interface. Where {tareportid} is the unique identification number assigned by RAS to the specified trusted report of a specific user TA on the target server.

      curl -X GET -H "Content-type: application/json" http://localhost:40002/1/ta/test/tareports/2


      To delete the specified trusted report of a specific user TA on the target server, use the DELETE method of the "/{id}/ta/{tauuid}/tareports/{tareportid}" interface.

      Note:

      This method will delete all information of the specified trusted report, and the report cannot be queried through the API.

      curl -X DELETE -H "Content-type: application/json" http://localhost:40002/1/ta/test/tareports/2


      To obtain the version information of the program, use the GET method of /version.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/version


      To query the configuration information about the target server, RAS, or database, use the GET method of /config.

      curl -X GET -H "Content-Type: application/json" http://localhost:40002/config


      To modify the configuration information about the target server, RAS, or database, use the POST method of /config.

      type cfgRecord struct {
        // Target server configuration
          HBDuration      string `json:"hbduration" form:"hbduration"`
          TrustDuration   string `json:"trustduration" form:"trustduration"`
          DigestAlgorithm string `json:"digestalgorithm" form:"digestalgorithm"`
        // RAS configuration
          MgrStrategy     string `json:"mgrstrategy" form:"mgrstrategy"`
          ExtractRules    string `json:"extractrules" form:"extractrules"`
          IsAllupdate     *bool  `json:"isallupdate" form:"isallupdate"`
          LogTestMode     *bool  `json:"logtestmode" form:"logtestmode"`
      }

      curl -X POST -H "Authorization: $AUTHTOKEN" -H "Content-Type: application/json" http://localhost:40002/config -d '{"hbduration":"5s","trustduration":"20s","DigestAlgorithm":"sha256"}'


      TAS APIs

      To facilitate the administrator's management of TAS for remote control, the following API is designed for calling:

      APIMethod
      /configGET, POST

      To query the configuration information, use the GET method of the /config interface.

      curl -X GET -H "Content-Type: application/json" http://localhost:40009/config


      To modify the configuration information, use the POST method of the /config interface.

      curl -X POST -H "Content-Type: application/json" -H "Authorization: $AUTHTOKEN" http://localhost:40009/config -d '{"basevalue":"testvalue"}'


      Note:

      Currently, only the base value in the configuration information of TAS is supported for querying and modifying.

      FAQs

      1. Why cannot RAS be started after it is installed?

        In the current RAS design logic, after the program is started, it needs to search for the ecdsakey.pub file in the current directory and read the file as the identity verification code for accessing the program. If the file does not exist in the current directory, an error is reported during RAS boot.

        Solution 1: Run the ras -T command to generate a test token. The ecdsakey.pub file is generated.
        Solution 2: After deploying the oauth2 authentication service, save the verification public key of the JWT token generator as ecdsakey.pub.

      2. Why cannot RAS be accessed through REST APIs after it is started?

        RAS is started in HTTPS mode by default. Therefore, you need to provide a valid certificate for RAS to access it. However, RAS started in HTTP mode does not require a certificate.

      3. Why does the issue of 'WARNING: failed to verify x509 cert' appear after RAS/ATTESTER is started?

        Because the CA certificate is missing.

        Solution: Copy the Huawei IT Product certificate named Huawei IT Product CA.pem under $(DESTDIR)/usr/bin directory to the running directory of RAS/ATTESTER.

      Trusted Platform Control Module

      Background

      Trusted computing has undergone continuous development and improvement in the past 40 years and has become an important branch of information security. Trusted computing technologies have developed rapidly in recent years and have solved the challenges in Trusted Computing 2.0—integration of trusted systems and existing systems, trusted management, and simplification of trusted application development. These technical breakthroughs form Trusted Computing 3.0, that is, trusted computing based on an active immune system. Compared with the passive plug-in architecture of the previous generation, Trusted Computing 3.0 proposes a new trusted system framework based on self-controlled cryptography algorithms, control chips, trusted software, trusted connections, policy management, and secure and trusted protection applications, implementing trust across the networks.

      The trusted platform control module (TPCM) is a base and core module that can be integrated into a trusted computing platform to establish and ensure a trust source. As one of the innovations in Trusted Computing 3.0 and the core of active immunity, TPCM implements active control over the entire platform.

      The TPCM-based Trusted Computing 3.0 architecture consists of the protection module and the computing module. On the one hand, based on the Trusted Cryptography Module (TPM), the TPCM main control firmware measures the reliability of the protection and computing modules, as well as their firmware. On the other hand, the Trusted Software Base (TSB) measures the reliability of system software and application software. In addition, the TPCM management platform verifies the reliability measurement and synchronizes and manages the trust policies.

      Feature Description

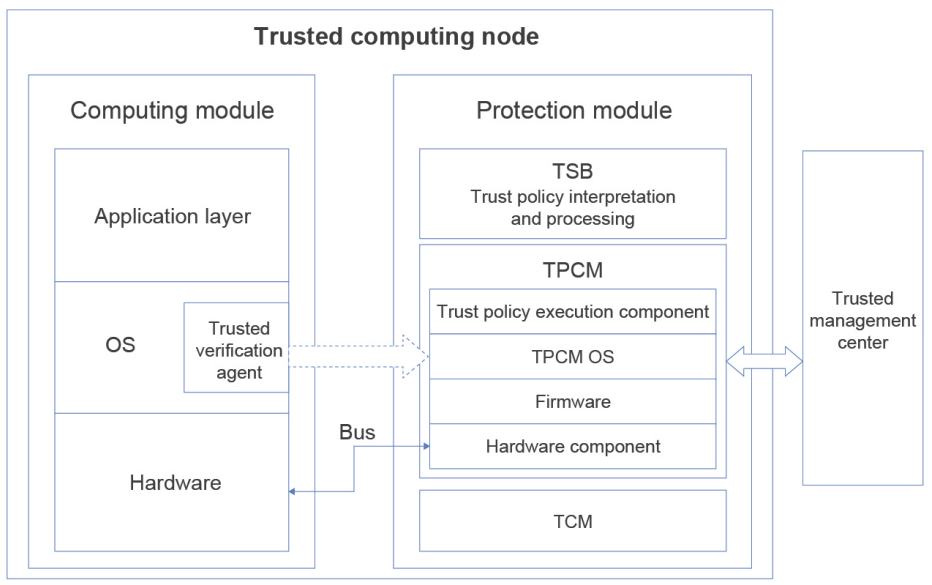

      The overall system design consists of the protection module, computing module, and trusted management center software, as shown in the following figure.

      • Trusted management center: This centralized management platform, provided by a third-party vendor, formulates, delivers, maintains, and stores protection policies and reference values for trusted computing nodes.

      • Protection module: This module operates independently of the computing module and provides trusted computing protection functions that feature active measurement and active control to implement security protection during computing. The protection module consists of the TPCM main control firmware, TCB, and TCM. As a key module for implementing trust protection in a trusted computing node, the TPCM can be implemented in multiple forms, such as cards, chips, and IP cores. It contains a CPU and memory, firmware, and software such as an OS and trusted function components. The TPCM operates alongside the computing module and works according to the built-in protection policy to monitor the trust of protected resources, such as hardware, firmware, and software of the computing module. The TPCM is the Root of Trust in a trusted computing node.

      • Computing module: This module includes hardware, an OS, and application layer software. The running of the OS can be divided into the boot phase and the running phase. In the boot phase, GRUB2 and shim of openEuler support the reliability measurement capability, which protects boot files such as shim, GRUB2, kernel, and initramfs. In the running phase, openEuler supports the deployment of the trusted verification agent (provided by third-party vendor HTTC). The agent sends data to the TPCM for trusted measurement and protection in the running phase.

      The TPCM interacts with other components as follows:

      1. The TPCM hardware, firmware, and software provide an operating environment for the TSB. The trusted function components of the TPCM provide support for the TSB to implement measurement, control, support, and decision-making based on the policy library interpretation requirements.
      2. The TPCM accesses the TCM for trusted cryptography functions to complete computing tasks such as trusted verification, measurement, and confidential storage, and provides services for TCM access.
      3. The TPCM connects to the trusted management center through the management interface to implement protection policy management and trusted report processing.
      4. The TPCM uses the built-in controller and I/O port to interact with the controller of the computing module through the bus to actively monitor the computing module.
      5. The built-in protection agent in the OS of the computing module obtains the code and data related to the preset protection object and provides them to the TPCM. The TPCM forwards the monitoring information to the TSB, and the TSB analyzes and processes the information according to the policy library.

      Constraints

      Supported server: TaiShan 200 server (model 2280)
      Supported BMC card: BC83SMMC

      Application Scenarios

      The TPCM enables a complete trust chain to ensure that the OS boots into a trusted computing environment.

      Bug Catching

      Buggy Content

      Bug Description

      Submit As Issue

      It's a little complicated....

      I'd like to ask someone.

      PR

      Just a small problem.

      I can fix it online!

      Bug Type
      Specifications and Common Mistakes

      ● Misspellings or punctuation mistakes;

      ● Incorrect links, empty cells, or wrong formats;

      ● Chinese characters in English context;

      ● Minor inconsistencies between the UI and descriptions;

      ● Low writing fluency that does not affect understanding;

      ● Incorrect version numbers, including software package names and version numbers on the UI.

      Usability

      ● Incorrect or missing key steps;

      ● Missing prerequisites or precautions;

      ● Ambiguous figures, tables, or texts;

      ● Unclear logic, such as missing classifications, items, and steps.

      Correctness

      ● Technical principles, function descriptions, or specifications inconsistent with those of the software;

      ● Incorrect schematic or architecture diagrams;

      ● Incorrect commands or command parameters;

      ● Incorrect code;

      ● Commands inconsistent with the functions;

      ● Wrong screenshots.

      Risk Warnings

      ● Lack of risk warnings for operations that may damage the system or important data.

      Content Compliance

      ● Contents that may violate applicable laws and regulations or geo-cultural context-sensitive words and expressions;

      ● Copyright infringement.

      How satisfied are you with this document

      Not satisfied at all
      Very satisfied
      Submit
      Click to create an issue. An issue template will be automatically generated based on your feedback.
      Bug Catching
      编组 3备份
