      GitLab Deployment

      Description

      GitLab deployment is required in Scenario 1 (openEuler native deployment CI/CD based on GitLab CI/CD). In Scenario 2 (openEuler native development cluster managed by GitLab CI/CD), skip this step.

      Preparing the Server

      Prepare a machine running openEuler 20.03 LTS or later versions.

      Starting GitLab

      Copy the required YAML files to the /home directory and start the related pod.

      Note: The YAML files related to GitLab can be obtained from the GitLab official site.

      Example YAML files are as follows. Modify them as required.

      gitlab-redis.yaml

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: redis
        namespace: default
        labels:
          name: redis
      spec:
        selector:
          matchLabels:
            name: redis
        template:
          metadata:
            name: redis
            labels:
              name: redis
          spec:
            containers:
            - name: redis
              image: 10.35.111.11:5000/redis:latest
              imagePullPolicy: IfNotPresent
              ports:
              - name: redis
                containerPort: 6379
              volumeMounts:
              - mountPath: /var/lib/redis
                name: data
              livenessProbe:
                exec:
                  command:
                  - redis-cli
                  - ping
                initialDelaySeconds: 30
                timeoutSeconds: 5
              readinessProbe:
                exec:
                  command:
                  - redis-cli
                  - ping
                initialDelaySeconds: 5
                timeoutSeconds: 1
            volumes:
            - name: data
              emptyDir: {}

      ---
      apiVersion: v1
      kind: Service
      metadata:
        name: redis
        namespace: default
        labels:
          name: redis
      spec:
        ports:
          - name: redis
            port: 6379
            targetPort: redis
        selector:
          name: redis


      gitlab-postgresql.yaml

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: postgresql
        namespace: default
        labels:
          name: postgresql
      spec:
        selector:
          matchLabels:
            name: postgresql
        template:
          metadata:
            name: postgresql
            labels:
              name: postgresql
          spec:
            containers:
            - name: postgresql
              image: 10.35.111.11:5000/postgres:13.6
              imagePullPolicy: IfNotPresent
              env:
              - name: POSTGRES_HOST_AUTH_METHOD
                value: trust
              - name: DB_USER
                value: gitlab
              - name: DB_PASS
                value: passw0rd
              - name: DB_NAME
                value: gitlab_production
              - name: DB_EXTENSION
                value: pg_trgm
              ports:
              - name: postgres
                containerPort: 5432
              volumeMounts:
              - mountPath: /var/lib/postgresql
                name: data
              livenessProbe:
                exec:
                  command:
                  - pg_isready
                  - -h
                  - localhost
                  - -U
                  - postgres
                initialDelaySeconds: 30
                timeoutSeconds: 5
              readinessProbe:
                exec:
                  command:
                  - pg_isready
                  - -h
                  - localhost
                  - -U
                  - postgres
                initialDelaySeconds: 5
                timeoutSeconds: 1
            volumes:
            - name: data
              emptyDir: {}

      ---
      apiVersion: v1
      kind: Service
      metadata:
        name: postgresql
        namespace: default
        labels:
          name: postgresql
      spec:
        ports:
          - name: postgres
            port: 5432
            targetPort: postgres
        selector:
          name: postgresql


      gitlab.yaml

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: gitlab
        namespace: default
        labels:
          name: gitlab
      spec:
        selector:
          matchLabels:
            name: gitlab
        template:
          metadata:
            name: gitlab
            labels:
              name: gitlab
          spec:
            containers:
            - name: gitlab
              image: 10.35.111.11:5000/yrzr/gitlab-ce-arm64v8:14.3.2-ce.0
              imagePullPolicy: IfNotPresent
              env:
              - name: TZ
                value: Asia/Shanghai
              - name: GITLAB_TIMEZONE
                value: Beijing
              - name: GITLAB_SECRETS_DB_KEY_BASE
                value: long-and-random-alpha-numeric-string
              - name: GITLAB_SECRETS_SECRET_KEY_BASE
                value: long-and-random-alpha-numeric-string
              - name: GITLAB_SECRETS_OTP_KEY_BASE
                value: long-and-random-alpha-numeric-string
              - name: GITLAB_ROOT_PASSWORD
                value: admin321
              - name: GITLAB_ROOT_EMAIL
                value: 517554016@qq.com
              - name: GITLAB_HOST
                value: git.qikqiak.com
              - name: GITLAB_PORT
                value: "80"
              - name: GITLAB_SSH_PORT
                value: "22"
              - name: GITLAB_NOTIFY_ON_BROKEN_BUILDS
                value: "true"
              - name: GITLAB_NOTIFY_PUSHER
                value: "false"
              - name: GITLAB_BACKUP_SCHEDULE
                value: daily
              - name: GITLAB_BACKUP_TIME
                value: 01:00
              - name: DB_TYPE
                value: postgres
              - name: DB_HOST
                value: postgresql
              - name: DB_PORT
                value: "5432"
              - name: DB_USER
                value: gitlab
              - name: DB_PASS
                value: passw0rd
              - name: DB_NAME
                value: gitlab_production
              - name: REDIS_HOST
                value: redis
              - name: REDIS_PORT
                value: "6379"
              ports:
              - name: http
                containerPort: 80
              - name: ssh
                containerPort: 22
              volumeMounts:
              - mountPath: /home/git/data
                name: data
              livenessProbe:
                httpGet:
                  path: /
                  port: 80
                initialDelaySeconds: 180
                timeoutSeconds: 5
              readinessProbe:
                httpGet:
                  path: /
                  port: 80
                initialDelaySeconds: 5
                timeoutSeconds: 1
            volumes:
            - name: data
              emptyDir: {}

      ---
      apiVersion: v1
      kind: Service
      metadata:
        name: gitlab
        namespace: default
        labels:
          name: gitlab
      spec:
        ports:
          - name: http
            port: 80
            targetPort: http
            nodePort: 30852
          - name: ssh
            port: 22
            nodePort: 32353
            targetPort: ssh
        selector:
          name: gitlab
        type: NodePort


      Start the containers.

      kubectl apply -f gitlab-redis.yaml
      kubectl apply -f gitlab-postgresql.yaml
      kubectl apply -f gitlab.yaml


      Check whether the GitLab pod is set up successfully.

      kubectl get pod -A -owide


      Logging in to GitLab

      Log in to the GitLab Web UI. The address is the IP address and the configured port.

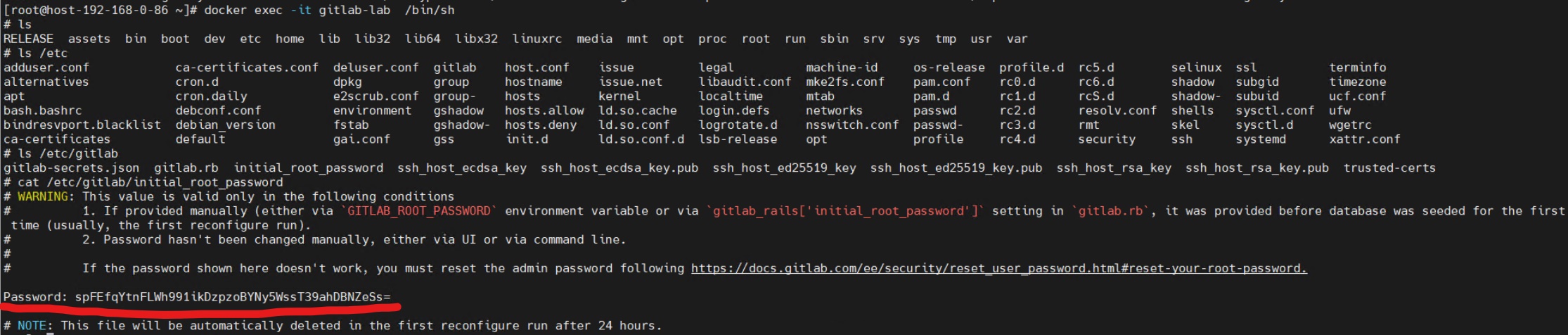

      The user name is root. The default password can be viewed in the password file in the container.

      kubectl exec -it gitlab-lab -n default /bin/sh
      cat /etc/gitlab/initial_root_password

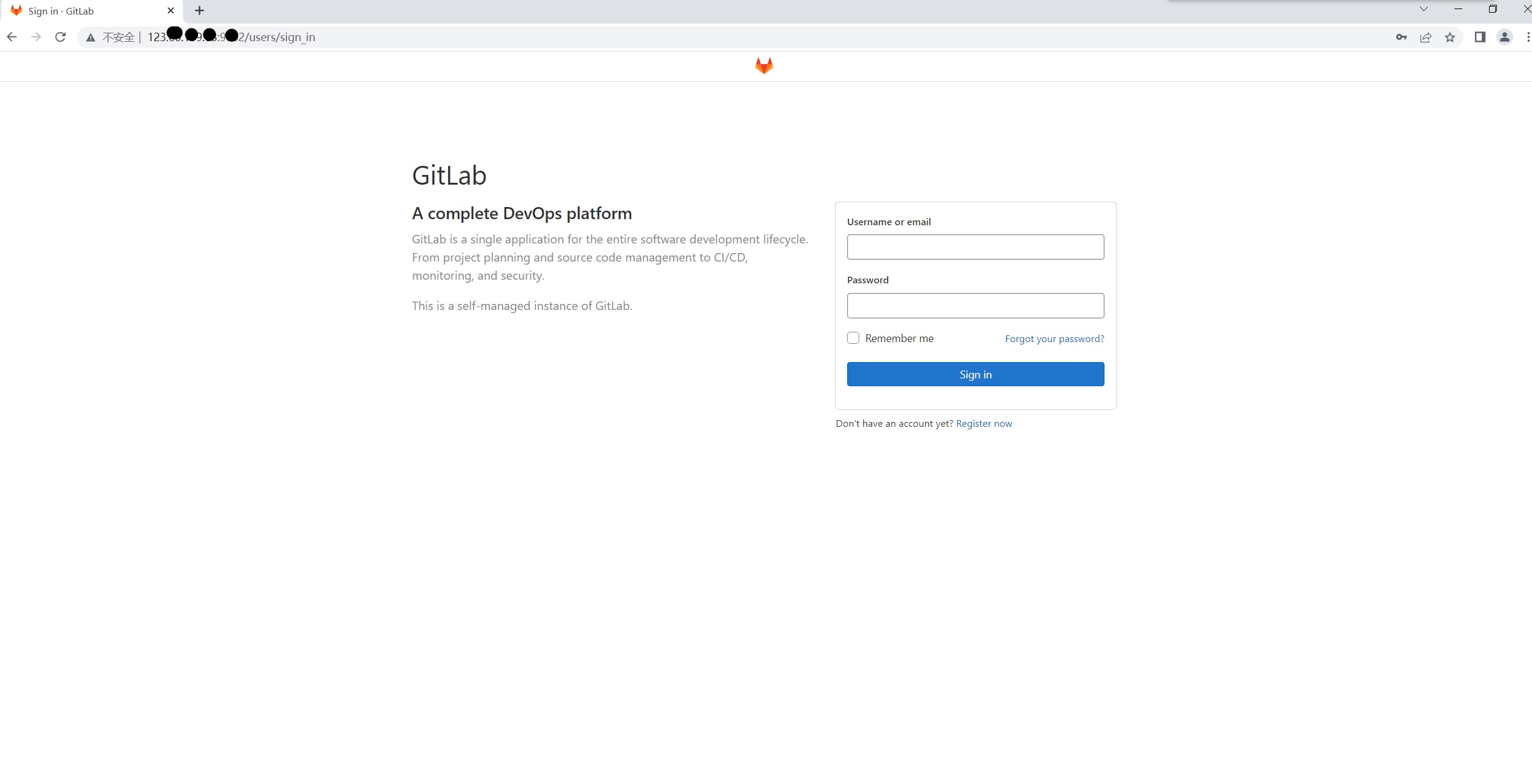

      • After you log in, this page is displayed:
