      GitLab Runner Deployment and Testing

      Images and Software

      The following table lists the images required during installation. The version numbers are for reference only.

      ImageVersion
      gitlab/gitlab-runneralpine-v14.4.0
      gitlab/gitlab-runner-helperx86_64-54944146

      If the Internet is unavailable in the environment, download the required images in advance. Download the images from the Docker Hub official website https://hub.docker.com.

      Using gitlab-runner.yaml to Start the Runner Container

      In the gitlab-runner.yaml file, change the image name. The following is an example of the .yaml file. Modify the file as required.

      vim gitlab-runner.yaml

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: gitlab-runner
        namespace: default
      spec:
        replicas: 1
        selector:
          matchLabels:
            name: gitlab-runner
        template:
          metadata:
            labels:
              name: gitlab-runner
          spec:
            containers:
            - args:
              - run
              image: gitlab/gitlab-runner:alpine-v14.4.0
              imagePullPolicy: IfNotPresent
              name: gitlab-runner
              volumeMounts:
              - mountPath: /etc/gitlab-runner
                name: config
                readOnly: false
              - mountPath: /etc/ssl/certs
                name: cacerts
                readOnly: true
            restartPolicy: Always
            volumes:
            - hostPath:
                path: /etc/gitlab-runner
              name: config
            - hostPath:
                path: /etc/ssl/key
              name: cacerts


      Start the container.

      # kubectl apply -f gitlab-runner.yaml
      # kubectl get pod -A -o wide



      Creating a Container Project That Uses User Certificates for Authentication in GitLab

      1. Click New project.

      2. Select Create blank project.

      3. Enter a name for the project.

      4. Choose Settings > CI/CD > Runners > Expand.

      5. Record the address and token for registering the Runner.

      6. Import certificate files.

        Check and generate certificate files admin.crt, admin.key, and ca.crt on the master node.

        • View certificate information.

          # cat /etc/kubernetes/admin.conf


          view-cert-config

        • Generate the encrypted admin.crt.

          # echo "${client-certificate-data}" | base64 -d > admin.crt

        • Generate the encrypted admin.key.

          # echo "${client-key-data}" | base64 -d > admin.key

        • Obtain the CA certificate on the manager node.

          # cp /etc/kubernetes/pki/ca.crt ./

      7. Import the three certificate files to the GitLab Runner container on the node where the Runner is running.

        Note: To import the certificate files, check the node where the GitLab Runner is running, copy the certificate files to the node, and run the isula cp command to import the certificate files.

        # isula cp admin.crt [Container ID]:Storage path
        # isula cp admin.key [Container ID]:Storage path
        # isula cp ca.crt [Container ID]:Storage path


        Note: The isula cp command can copy only one file at a time.

        import-cert

      Registering the GitLab Runner

      Perform registration in the GitLab Runner container. Currently, interactive registration is used. Obtain the registration information from GitLab. Choose GitLab > Group runners > Settings > CI/CD > Runners.

      register-gitlab-runner

      Upload the prepared gitlab-runner-helper image to the private image repository in advance, go to the GitLab Runner container, and modify the configuration file.

      # cd /etc/gitlab-runner
      # mkdir kubessl
      # cp /home/admin.crt /etc/gitlab-runner/kubessl
      # cp /home/ca.crt /etc/gitlab-runner/kubessl
      # cp /home/admin.key /etc/gitlab-runner/kubessl

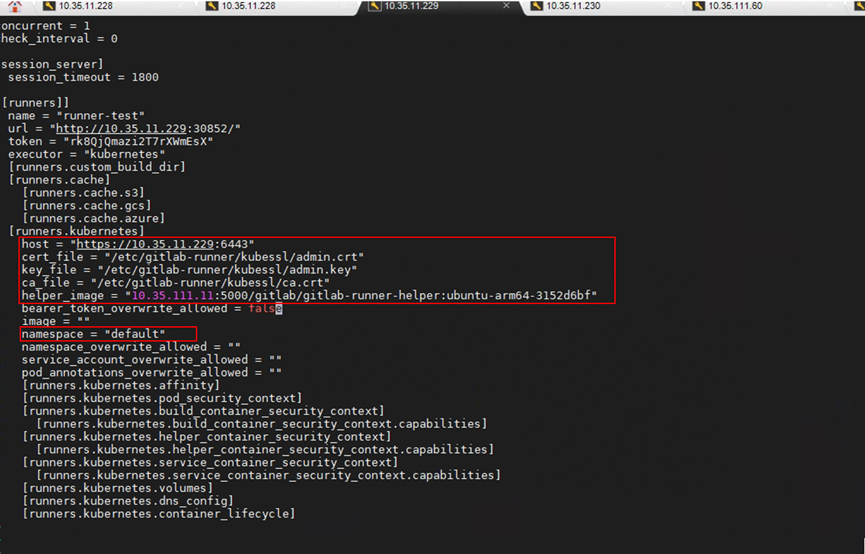

      # vim /etc/gitlab-runner/config.toml


      Adding the DNS Record of the GitLab Container to the Manager Node

      1. View the IP address of the GitLab container.

        # kubectl get pods –Aowide

      2. Add the IP address of the GitLab container to the Kubernetes DNS configuration file.

        # kubectl edit configmaps coredns -n kube-system


      dns

      1. Restart the CoreDNS service.

        # kubectl scale deployment coredns -n kube-system --replicas=0
        # kubectl scale deployment coredns -n kube-system --replicas=2


      GitLab Running Testing

      Return to the GitLab web IDE and choose CI/CD > Editor > Create new CI/CD pipeline.

      • Compile the YAML file as follows:

      yaml

      • Choose Pipelines and view the status.
