      This section describes how to get started with the HA cluster and add an instance. If you are not familiar with HA installation, see Installing and Deploying HA.

      Quick Start Guide

      • The following operations use the management platform newly developed by the community as an example.

      Login Page

      The user name is hacluster, and the password is the one set on the host by the user.

      Home Page

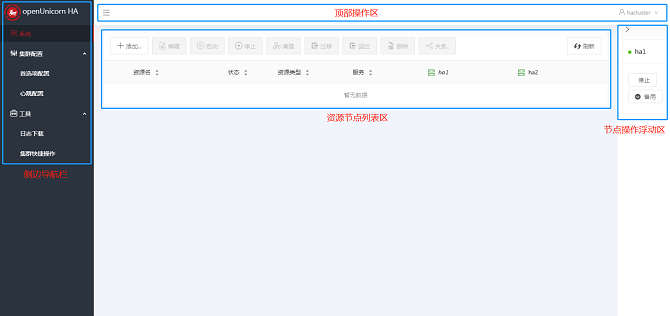

      After logging in to the system, the main page is displayed. The main page consists of the side navigation bar, the top operation area, the resource node list area, and the node operation floating area.

      The following describes the features and usage of the four areas in detail.

      The side navigation bar consists of two parts: the name and logo of the HA cluster software, and the system navigation. The system navigation consists of three parts: System, Cluster Configurations, and Tools. System is the default option and the corresponding item to the home page. It displays the information and operation entries of all resources in the system. Preference Settings and Heartbeat Configurations are under Cluster Configurations. Log Download and Quick Cluster Operation are under Tools. These two items are displayed in a pop-up box after you click them.

      Top Operation Area

      The current login user is displayed statically. When you hover the mouse cursor on the user icon, the operation menu items are displayed, including Refresh Settings and Log Out. After you click Refresh Settings, the Refresh Settings dialog box is displayed with the option. You can set the automatic refresh modes for the system. The options are Do not refresh automatically, Refresh every 5 seconds, and Refresh every 10 seconds. By default, Do not refresh automatically is selected. Clicking Log Out to log out and jump to the login page. After that, a re-login is required if you want to continue to access the system.

      Resource Node List Area

      The resource node list displays the resource information such as Resource Name, Status, Resource Type, Service, and Running Node of all resources in the system, and the node information such as all nodes in the system and the running status of the nodes. In addition, you can Add, Edit, Start, Stop, Clear, Migrate, Migrate Back, and Delete the resources, and set Relationships for the resources.

      Node Operation Floating Area

      By default, the node operation floating area is collapsed. When you click a node in the heading of the resource node list, the node operation area is displayed on the right, as shown in the preceding figure. This area consists of the collapse button, the node name, the stop button, and the standby button, and provides the stop and standby operations. Click the arrow in the upper left corner of the area to collapse the area.

      Preference Settings

      The following operations can be performed using command lines. The following is an example. For more command details, run the pcs --help command.

      pcs property set stonith-enabled=false
      pcs property set no-quorum-policy=ignore


      Run pcs property to view all settings.

      • Click Preference Settings in the navigation bar, the Preference Settings dialog box is displayed. Change the values of No Quorum Policy and Stonith Enabled from the default values to the values shown in the figure below. Then, click OK.

      Adding Resources

      Adding Common Resources

      Click Add Common Resource. The Create Resource dialog box is displayed. All mandatory configuration items of the resource are on the Basic page. After you select a Resource Type on the Basic page, other mandatory and optional configuration items of the resource are displayed. When you type in the resource configuration information, a gray text area is displayed on the right of the dialog box to describe the current configuration item. After all mandatory parameters are set, click OK to create a common resource or click Cancel to cancel the add operation. The optional configuration items on the Instance Attribute, Meta Attribute, or Operation Attribute page are optional. The resource creation process is not affected if they are not configured. You can modify them as required. Otherwise, the default values are used.

      The following uses the Apache as an example to describe how to add an Apache resource.

      pcs resource create httpd ocf:heartbeat:apache


      Check the resource running status:

      pcs status


      • Add the Apache resource:

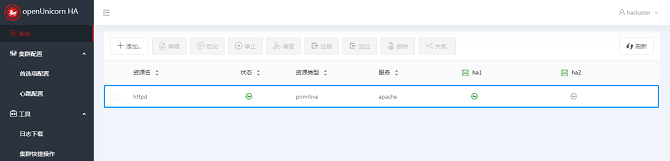

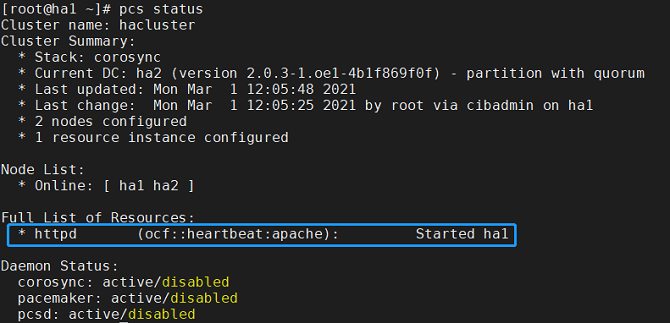

      • If the following information is displayed, the resource is successfully added:

      • The resource is successfully created and started, and runs on a node, for example, ha1. The Apache page is displayed.

      Adding Group Resources

      Adding group resources requires at least one common resource in the cluster. Click Add Group Resource. The Create Resource dialog box is displayed. All the parameters on the Basic tab page are mandatory. After setting the parameters, click OK to add the resource or click Cancel to cancel the add operation.

      • Note: Group resources are started in the sequence of child resources. Therefore, you need to select child resources in sequence.

      If the following information is displayed, the resource is successfully added:

      Adding Clone Resources

      Click Add Clone Resource. The Create Resource dialog box is displayed. On the Basic page, enter the object to be cloned. The resource name is automatically generated. After entering the object name, click OK to add the resource, or click Cancel to cancel the add operation.

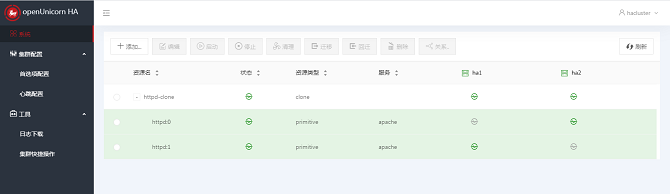

      If the following information is displayed, the resource is successfully added:

      Editing Resources

      • Starting a resource: Select a target resource from the resource node list. The target resource must not be running. Start the resource.
      • Stopping a resource: Select a target resource from the resource node list. The target resource must be running. Stop the resource.
      • Clearing a resource: Select a target resource from the resource node list. Clear the resource.
      • Migrating a resource: Select a target resource from the resource node list. The resource must be a common resource or a group resource in the running status. Migrate the resource to migrate it to a specified node.
      • Migrating back a resource: Select a target resource from the resource node list. The resource must be a migrated resource. Migrate back the resource to clear the migration settings of the resource and migrate the resource back to the original node. After you click Migrate Back, the status change of the resource item in the list is the same as that when the resource is started.
      • Deleting a resource: Select a target resource from the resource node list. Delete the resource.

      Setting Resource Relationships

      Resource relationships are used to set restrictions for the target resources. There are three types of resource restrictions: resource location, resource collaboration, and resource order.

      • Resource location: sets the running level of the nodes in the cluster for the resource to determine the node where the resource runs during startup or switchover. The running levels are Primary Node and Standby 1 in descending order.
      • Resource collaboration: indicates whether the target resource and other resources in the cluster run on the same node. Same Node indicates that this resource must run on the same node as the target resource. Mutually Exclusive indicates that this resource cannot run on the same node as the target resource.
      • Resource order: Set the order in which the target resource and other resources in the cluster are started. Front Resource indicates that this resource must be started before the target resource. Follow-up Resource indicates that this resource can be started only after the target resource is started.

      HA MySQL Configuration Example

      • Configure three common resources separately, then add them as a group resource.

      Configuring the Virtual IP Address

      On the home page, choose Add > Add Common Resource and set the parameters as follows:

      • The resource is successfully created and started and runs on a node, for example, ha1. The resource can be pinged and connected, and allows various operations after login. The resource is switched to ha2 and can be accessed normally.
      • If the following information is displayed, the resource is successfully added:

      Configuring NFS Storage

      • Configure another host as the NFS server.

      Install the software packages:

      yum install -y nfs-utils rpcbind


      Run the following command to disable the firewall:

      systemctl stop firewalld && systemctl disable firewalld


      Modify the /etc/selinux/config file to change the status of SELINUX to disabled.

      # SELINUX=disabled


      Start the services:

      systemctl start rpcbind && systemctl enable rpcbind
      systemctl start nfs-server && systemctl enable nfs-server


      Create a shared directory on the server:

      mkdir -p /test


      Modify the NFS configuration file:

      vim /etc/exports
      /test *(rw,no_root_squash)


      Reload the service:

      systemctl reload nfs


      Install the software packages on the client. Install MySQL first to mount the NFS to the path of the MySQL data.

      yum install -y nfs-utils mariadb-server


      On the home page, choose Add > Add Common Resource and configure the NFS resource as follows:

      • The resource is successfully created and started and runs on a node, for example, ha1. The NFS is mounted to the /var/lib/mysql directory. The resource is switched to ha2. The NFS is unmounted from ha1 and automatically mounted to ha2.
      • If the following information is displayed, the resource is successfully added:

      Configuring MySQL

      On the home page, choose Add > Add Common Resource and configure the MySQL resource as follows:

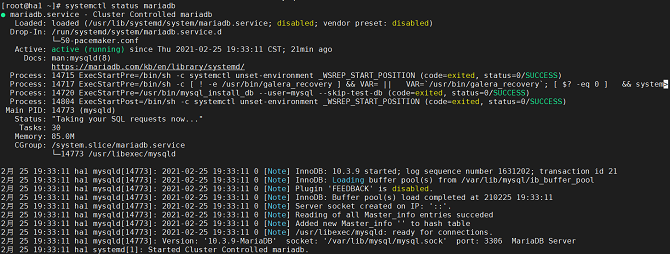

      • If the following information is displayed, the resource is successfully added:

      Adding the Preceding Resources as a Group Resource

      • Add the three resources in the resource startup sequence.

      On the home page, choose Add > Add Group Resource and configure the group resource as follows:

      • The group resource is successfully created and started. If the command output is the same as that of the preceding common resources, the group resource is successfully added.

      • Use ha1 as the standby node and migrate the group resource to the ha2 node. The system is running properly.

      Quorum Device Configuration

      Select a new machine as the quorum device. The current software package does not support the service test using systemct. Use pcs to start and stop the service. The procedure is as follows:

      Installing Quorum Software

      • Install corosync-qdevice on a cluster node.
      [root@node1:~]# yum install corosync-qdevice
      [root@node2:~]# yum install corosync-qdevice

      • Install pcs and corosync-qnetd on the quorum device host.
      [root@qdevice:~]# yum install pcs corosync-qnetd

      • Start the pcsd service on the quorum device host and enable the pcsd service to start upon system startup.
      [root@qdevice:~]# systemctl start pcsd.service
      [root@qdevice:~]# systemctl enable pcsd.service


      Modifying the Host Name and the /etc/hosts File

      Note: Perform the following operations on all the three hosts. The following uses one host as an example.

      Before using the quorum function, change the host name, write all host names to the /etc/hosts file, and set the password for the hacluster user.

      • Change the host name.
      hostnamectl set-hostname node1

      • Write the IP addresses and host names to the /etc/hosts file.
      10.1.167.105 ha1
      10.1.167.105 ha2
      10.1.167.106 qdevice

      • Set the password for the hacluster user.
      passwd hacluster


      Configuring the Quorum Device and Adding It to the Cluster

      The following describes how to configure the quorum device and add it to the cluster.

      • The qdevice node is used as the quorum device.
      • The model of the quorum device is net.
      • The cluster nodes are node1 and node2.

      Configuring the Quorum Device

      On the node that will be used to host the quorum device, run the following command to configure the quorum device. This command sets the model of the quorum device to net and configures the device to start during boot.

      [root@qdevice:~]# pcs qdevice setup model net --enable --start
      Quorum device 'net' initialized
      quorum device enabled
      Starting quorum device...
      quorum device started


      After configuring the quorum device, view its status. The current status indicates that the corosync-qnetd daemon is running and no client is connected to it. Run the --full command to display the detailed output.

      [root@qdevice:~]# pcs qdevice status net --full
      QNetd address: *:5403
      TLS: Supported (client certificate required)
      Connected clients: 0
      Connected clusters: 0
      Maximum send/receive size: 32768/32768 bytes


      Disabling the Firewall

      systemctl stop firewalld && systemctl disable firewalld

      • Change SELINUX to disabled in the /etc/selinux/config file.
      SELINUX=disabled


      Authenticate Identities

      Authenticate users on the node hosting the quorum device from a hacluster node in the cluster. This allows the pcs cluster to be connected to the qdevice on the pcs host, but does not allow the qdevice on the pcs host to be connected to the pcs cluster.

      [root@node1:~] # pcs host auth qdevice
      Username: hacluster
      Password:
      qdevice: Authorized


      Adding the Quorum Device to the Cluster

      Before adding the quorum device, run the pcs quorum config command to view the current configuration of the quorum device for later comparison.

      [root@node1:~]# pcs quorum config
      Options:


      Run the pcs quorum status command to check the current status of the quorum device. The command output indicates that the cluster does not use the quorum device and the member status of each qdevice node is NR (unregistered).

      [root@node1:~]# pcs quorum status
      Quorum information
      ------------------
      Date:             Wed Jun 29 13:15:36 2016
      Quorum provider:  corosync_votequorum
      Nodes:            2
      Node ID:          1
      Ring ID:          1/8272
      Quorate:          Yes

      Votequorum information
      ----------------------
      Expected votes:   2
      Highest expected: 2
      Total votes:      2
      Quorum:           1
      Flags:            2Node Quorate

      Membership information
      ----------------------
          Nodeid      Votes    Qdevice Name
               1          1         NR node1 (local)
               2          1         NR node2


      Add the created quorum device to the cluster. Note that multiple quorum devices cannot be used in a cluster at the same time. However, a quorum device can be used by multiple clusters at the same time. This example configures the quorum device to use the ffsplit algorithm.

      [root@node1:~]# pcs quorum device add model net host=qdevice algorithm=ffsplit
      Setting up qdevice certificates on nodes...
      node2: Succeeded
      node1: Succeeded
      Enabling corosync-qdevice...
      node1: corosync-qdevice enabled
      node2: corosync-qdevice enabled
      Sending updated corosync.conf to nodes...
      node1: Succeeded
      node2: Succeeded
      Corosync configuration reloaded
      Starting corosync-qdevice...
      node1: corosync-qdevice started
      node2: corosync-qdevice started


      Checking the Configuration Status of the Quorum Device

      Check the configuration changes in the cluster. Run the pcs quorum config command to view information about the configured quorum device.

      [root@node1:~]# pcs quorum config
      Options:
      Device:
        Model: net
          algorithm: ffsplit
          host: qdevice


      The pcs quorum status command displays the quorum running status, indicating that the quorum device is in use. The meanings of the member status values of each cluster node are as follows:

      • A/NA: Whether the quorum device is alive, indicating whether there is heartbeat between qdevice and corosync. This should always indicate that the quorum device is active.
      • V/NV: V is set when the quorum device votes for a node. In this example, both nodes are set to V because they can communicate with each other. If the cluster is split into two single-node clusters, one node is set to V and the other is set to NV.
      • MW/NMW: The internal quorum device flag is set (MW) or not set (NMW). By default, the flag is not set and the value is NMW.
      [root@node1:~]# pcs quorum status
      Quorum information
      ------------------
      Date:             Wed Jun 29 13:17:02 2016
      Quorum provider:  corosync_votequorum
      Nodes:            2
      Node ID:          1
      Ring ID:          1/8272
      Quorate:          Yes

      Votequorum information
      ----------------------
      Expected votes:   3
      Highest expected: 3
      Total votes:      3
      Quorum:           2
      Flags:            Quorate Qdevice

      Membership information
      ----------------------
          Nodeid      Votes    Qdevice Name
               1          1    A,V,NMW node1 (local)
               2          1    A,V,NMW node2
               0          1            Qdevice


      Run the pcs quorum device status command to view the running status of the quorum device.

      [root@node1:~]# pcs quorum device status
      Qdevice information
      -------------------
      Model:                  Net
      Node ID:                1
      Configured node list:
          0   Node ID = 1
          1   Node ID = 2
      Membership node list:   1, 2

      Qdevice-net information
      ----------------------
      Cluster name:           mycluster
      QNetd host:             qdevice:5403
      Algorithm:              ffsplit
      Tie-breaker:            Node with lowest node ID
      State:                  Connected


      On the quorum device, run the following command to display the status of the corosync-qnetd daemon:

      [root@qdevice:~]# pcs qdevice status net --full
      QNetd address:                  *:5403
      TLS:                            Supported (client certificate required)
      Connected clients:              2
      Connected clusters:             1
      Maximum send/receive size:      32768/32768 bytes
      Cluster "mycluster":
          Algorithm:          ffsplit
          Tie-breaker:        Node with lowest node ID
          Node ID 2:
              Client address:         ::ffff:192.168.122.122:50028
              HB interval:            8000ms
              Configured node list:   1, 2
              Ring ID:                1.2050
              Membership node list:   1, 2
              TLS active:             Yes (client certificate verified)
              Vote:                   ACK (ACK)
          Node ID 1:
              Client address:         ::ffff:192.168.122.121:48786
              HB interval:            8000ms
              Configured node list:   1, 2
              Ring ID:                1.2050
              Membership node list:   1, 2
              TLS active:             Yes (client certificate verified)
              Vote:                   ACK (ACK)


      Managing Quorum Device Services

      pcs provides the capability of managing quorum device services on the local host (corosync-qnetd). See the following example commands. Note that these commands affect only the corosync-qnetd service.

      [root@qdevice:~]# pcs qdevice start net
      [root@qdevice:~]# pcs qdevice stop net
      [root@qdevice:~]# pcs qdevice enable net
      [root@qdevice:~]# pcs qdevice disable net
      [root@qdevice:~]# pcs qdevice kill net


      When you run the pcs qdevice stop net command, the value of State changes from Connected to Connect failed. When you run the pcs qdevice start net command again, the value of State changes to Connected.

      Managing the Quorum Device in the Cluster

      You can use the pcs commands to change quorum device settings, disable the quorum device, and delete the quorum device from the cluster.

      Changing Quorum Device Settings

      Note: To change the net option of quorum device model in the host, run the pcs quorum device remove and pcs quorum device add commands to correctly configure the settings unless the old and new hosts are the same.

      • Change the quorum device algorithm to lms.
      [root@node1:~]# pcs quorum device update model algorithm=lms
      Sending updated corosync.conf to nodes...
      node1: Succeeded
      node2: Succeeded
      Corosync configuration reloaded
      Reloading qdevice configuration on nodes...
      node1: corosync-qdevice stopped
      node2: corosync-qdevice stopped
      node1: corosync-qdevice started
      node2: corosync-qdevice started


      Deleting the Quorum Device

      • Delete the quorum device configured on the cluster node.
      [root@node1:~]# pcs quorum device remove
      Sending updated corosync.conf to nodes...
      node1: Succeeded
      node2: Succeeded
      Corosync configuration reloaded
      Disabling corosync-qdevice...
      node1: corosync-qdevice disabled
      node2: corosync-qdevice disabled
      Stopping corosync-qdevice...
      node1: corosync-qdevice stopped
      node2: corosync-qdevice stopped
      Removing qdevice certificates from nodes...
      node1: Succeeded
      node2: Succeeded


      After the quorum device is deleted, check the quorum device status. The following error message is displayed:

      [root@node1:~]# pcs quorum device status
      Error: Unable to get quorum status: corosync-qdevice-tool: Can't connect to QDevice socket (is QDevice running?): No such file or directory


      Destroying the Quorum Device

      • Disable and stop the quorum device on the quorum device host and delete all its configuration files.
      [root@qdevice:~]# pcs qdevice destroy net
      Stopping quorum device...
      quorum device stopped
      quorum device disabled
      Quorum device 'net' configuration files removed


      Bug Catching

      Buggy Content

      Bug Description

      Submit As Issue

      It's a little complicated....

      I'd like to ask someone.

      PR

      Just a small problem.

      I can fix it online!

      Bug Type
      Specifications and Common Mistakes

      ● Misspellings or punctuation mistakes;

      ● Incorrect links, empty cells, or wrong formats;

      ● Chinese characters in English context;

      ● Minor inconsistencies between the UI and descriptions;

      ● Low writing fluency that does not affect understanding;

      ● Incorrect version numbers, including software package names and version numbers on the UI.

      Usability

      ● Incorrect or missing key steps;

      ● Missing prerequisites or precautions;

      ● Ambiguous figures, tables, or texts;

      ● Unclear logic, such as missing classifications, items, and steps.

      Correctness

      ● Technical principles, function descriptions, or specifications inconsistent with those of the software;

      ● Incorrect schematic or architecture diagrams;

      ● Incorrect commands or command parameters;

      ● Incorrect code;

      ● Commands inconsistent with the functions;

      ● Wrong screenshots.

      Risk Warnings

      ● Lack of risk warnings for operations that may damage the system or important data.

      Content Compliance

      ● Contents that may violate applicable laws and regulations or geo-cultural context-sensitive words and expressions;

      ● Copyright infringement.

      How satisfied are you with this document

      Not satisfied at all
      Very satisfied
      Submit
      Click to create an issue. An issue template will be automatically generated based on your feedback.
      Bug Catching
      编组 3备份
