      Installation and Deployment

      This chapter describes how to install and deploy A-Tune.

      Software and Hardware Requirements

      Hardware Requirement

      • Huawei Kunpeng 920 processor

      Software Requirement

      • OS: openEuler 22.09

      Environment Preparation

      For details about installing an openEuler OS, see the openEuler 22.09 Installation Guide.

      A-Tune Installation

      This section describes the installation modes and methods of the A-Tune.

      Installation Modes

      A-Tune can be installed in single-node, distributed, and cluster modes.

      • Single-node mode

        The client and server are installed on the same system.

      • Distributed mode

        The client and server are installed on different systems.

      • Cluster mode A cluster consists of a client and more than one servers.

      The installation modes are as follows:

      Installation Procedure

      To install the A-Tune, perform the following steps:

      1. Mount an openEuler ISO image.

        mount openEuler-22.09-aarch64-dvd.iso /mnt


        Use the everything ISO image.

      2. Configure the local Yum source.

        vim /etc/yum.repos.d/local.repo


        The configured contents are as follows:

        [local]
        name=local
        baseurl=file:///mnt
        gpgcheck=1
        enabled=1

      3. Import the GPG public key of the RPM digital signature to the system.

        rpm --import /mnt/RPM-GPG-KEY-openEuler

      4. Install an A-Tune server.

        NOTE: In this step, both the server and client software packages are installed. For the single-node deployment, skip Step 5.

        yum install atune -y
        yum install atune-engine -y

      5. For a distributed mode, install an A-Tune client on associated server.

        yum install atune-client -y

      6. Check whether the installation is successful.

        $ rpm -qa | grep atune
        atune-client-xxx
        atune-db-xxx
        atune-xxx
        atune-engine-xxx


        If the preceding information is displayed, the installation is successful.

      A-Tune Deployment

      This section describes how to deploy A-Tune.

      Overview

      The configuration items in the A-Tune configuration file /etc/atuned/atuned.cnf are described as follows:

      • A-Tune service startup configuration (modify the parameter values as required).

        • protocol: Protocol used by the gRPC service. The value can be unix or tcp. unix indicates the local socket communication mode, and tcp indicates the socket listening port mode. The default value is unix.
        • address: Listening IP address of the gRPC service. The default value is unix socket. If the gRPC service is deployed in distributed mode, change the value to the listening IP address.
        • port: Listening port of the gRPC server. The value ranges from 0 to 65535. If protocol is set to unix, you do not need to set this parameter.
        • connect: IP address list of the nodes where the A-Tune is located when the A-Tune is deployed in a cluster. IP addresses are separated by commas (,).
        • rest_host: Listening address of the REST service. The default value is localhost.
        • rest_port: Listening port of the REST service. The value ranges from 0 to 65535. The default value is 8383.
        • engine_host: IP address for connecting to the A-Tune engine service of the system.
        • engine_port: Port for connecting to the A-Tune engine service of the system.
        • sample_num: Number of samples collected when the system executes the analysis process. The default value is 20.
        • interval: Interval for collecting samples when the system executes the analysis process. The default value is 5s.
        • grpc_tls: Indicates whether to enable SSL/TLS certificate verification for the gRPC service. By default, this function is disabled. After grpc_tls is enabled, you need to set the following environment variables before running the atune-adm command to communicate with the server:
          • export ATUNE_TLS=yes
          • export ATUNED_CACERT=
          • export ATUNED_CLIENTCERT=
          • export ATUNED_CLIENTKEY=
          • export ATUNED_SERVERCN=server
        • tlsservercafile: Path of the gPRC server's CA certificate.
        • tlsservercertfile: Path of the gPRC server certificate.
        • tlsserverkeyfile: Path of the gPRC server key.
        • rest_tls: Indicates whether to enable SSL/TLS certificate verification for the REST service. This function is enabled by default.
        • tlsrestcacertfile: Path of the server's CA certificate of the REST service.
        • tlsrestservercertfile: Path of the server certificate of the REST service.
        • tlsrestserverkeyfile: Indicates the key path of the REST service.
        • engine_tls: Indicates whether to enable SSL/TLS certificate verification for the A-Tune engine service. This function is enabled by default..
        • tlsenginecacertfile: Path of the client CA certificate of the A-Tune engine service.
        • tlsengineclientcertfile: Client certificate path of the A-Tune engine service.
        • tlsengineclientkeyfile: Client key path of the A-Tune engine service.
      • System information

        System is the parameter information required for system optimization. You must modify the parameter information according to the actual situation.

        • disk: Disk information to be collected during the analysis process or specified disk during disk optimization.
        • network: NIC information to be collected during the analysis process or specified NIC during NIC optimization.
        • user: User name used for ulimit optimization. Currently, only the user root is supported.
      • Log information

        Change the log level as required. The default log level is info. Log information is recorded in the /var/log/messages file.

      • Monitor information

        Hardware information that is collected by default when the system is started.

      • Tuning information

        Tuning is the parameter information required for offline tuning.

        • noise: Evaluation value of Gaussian noise.
        • sel_feature: Indicates whether to enable the function of generating the importance ranking of offline tuning parameters. By default, this function is disabled.

      Example

      #################################### server ###############################
       # atuned config
       [server]
       # the protocol grpc server running on
       # ranges: unix or tcp
       protocol = unix

       # the address that the grpc server to bind to
       # default is unix socket /var/run/atuned/atuned.sock
       # ranges: /var/run/atuned/atuned.sock or ip address
       address = /var/run/atuned/atuned.sock

       # the atune nodes in cluster mode, separated by commas
       # it is valid when protocol is tcp
       # connect = ip01,ip02,ip03

       # the atuned grpc listening port
       # the port can be set between 0 to 65535 which not be used
       # port = 60001

       # the rest service listening port, default is 8383
       # the port can be set between 0 to 65535 which not be used
       rest_host = localhost
       rest_port = 8383

       # the tuning optimizer host and port, start by engine.service
       # if engine_host is same as rest_host, two ports cannot be same
       # the port can be set between 0 to 65535 which not be used
       engine_host = localhost
       engine_port = 3838

       # when run analysis command, the numbers of collected data.
       # default is 20
       sample_num = 20

       # interval for collecting data, default is 5s
       interval = 5

       # enable gRPC authentication SSL/TLS
       # default is false
       # grpc_tls = false
       # tlsservercafile = /etc/atuned/grpc_certs/ca.crt
       # tlsservercertfile = /etc/atuned/grpc_certs/server.crt
       # tlsserverkeyfile = /etc/atuned/grpc_certs/server.key

       # enable rest server authentication SSL/TLS
       # default is true
       rest_tls = true
       tlsrestcacertfile = /etc/atuned/rest_certs/ca.crt
       tlsrestservercertfile = /etc/atuned/rest_certs/server.crt
       tlsrestserverkeyfile = /etc/atuned/rest_certs/server.key

       # enable engine server authentication SSL/TLS
       # default is true
       engine_tls = true
       tlsenginecacertfile = /etc/atuned/engine_certs/ca.crt
       tlsengineclientcertfile = /etc/atuned/engine_certs/client.crt
       tlsengineclientkeyfile = /etc/atuned/engine_certs/client.key


       #################################### log ###############################
       [log]
       # either "debug", "info", "warn", "error", "critical", default is "info"
       level = info

       #################################### monitor ###############################
       [monitor]
       # with the module and format of the MPI, the format is {module}_{purpose}
       # the module is Either "mem", "net", "cpu", "storage"
       # the purpose is "topo"
       module = mem_topo, cpu_topo

       #################################### system ###############################
       # you can add arbitrary key-value here, just like key = value
       # you can use the key in the profile
       [system]
       # the disk to be analysis
       disk = sda

       # the network to be analysis
       network = enp189s0f0

       user = root

       #################################### tuning ###############################
       # tuning configs
       [tuning]
       noise = 0.000000001
       sel_feature = false


      The configuration items in the configuration file /etc/atuned/engine.cnf of the A-Tune engine are described as follows:

      • Startup configuration of the A-Tune engine service (modify the parameter values as required).

        • engine_host: Listening address of the A-Tune engine service. The default value is localhost.
        • engine_port: Listening port of the A-Tune engine service. The value ranges from 0 to 65535. The default value is 3838.
        • engine_tls: Indicates whether to enable SSL/TLS certificate verification for the A-Tune engine service. This function is enabled by default.
        • tlsenginecacertfile: Path of the server CA certificate of the A-Tune engine service.
        • tlsengineservercertfile: Path of the server certificate of the A-Tune engine service.
        • tlsengineserverkeyfile: Server key path of the A-Tune engine service.
      • Log information

        Change the log level as required. The default log level is info. Log information is recorded in the /var/log/messages file.

      Example

      #################################### engine ###############################
       [server]
       # the tuning optimizer host and port, start by engine.service
       # if engine_host is same as rest_host, two ports cannot be same
       # the port can be set between 0 to 65535 which not be used
       engine_host = localhost
       engine_port = 3838

       # enable engine server authentication SSL/TLS
       # default is true
       engine_tls = true
       tlsenginecacertfile = /etc/atuned/engine_certs/ca.crt
       tlsengineservercertfile = /etc/atuned/engine_certs/server.crt
       tlsengineserverkeyfile = /etc/atuned/engine_certs/server.key

       #################################### log ###############################
       [log]
       # either "debug", "info", "warn", "error", "critical", default is "info"
       level = info


      Starting A-Tune

      After A-Tune is installed, you need to configure the A-Tune service before starting it.

      • Start the atuned service.

        systemctl start atuned

      • Query the atuned service status.

        systemctl status atuned

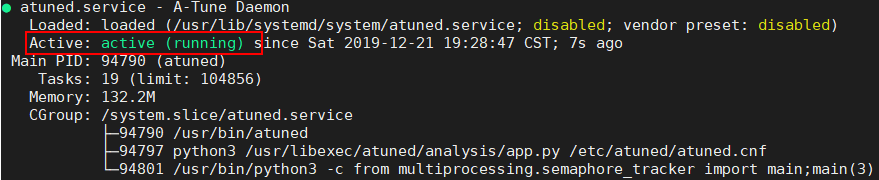

        If the following command output is displayed, the service is started successfully:

      Starting A-Tune Engine

      To use AI functions, you need to start the A-Tune engine service.

      • Start the atune-engine service.

        systemctl start atune-engine

      • Query the atune-engine service status.

        systemctl status atune-engine

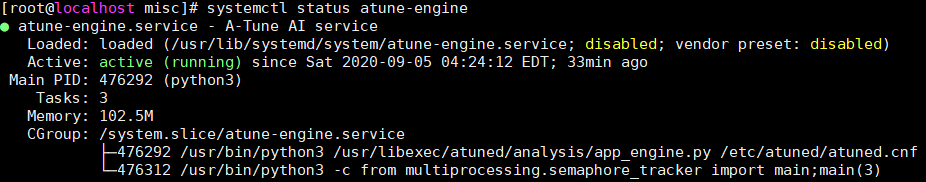

        If the following command output is displayed, the service is started successfully:

      Distributed Deployment

      Purpose of Distributed Deployment

      A-Tune supports distributed deployment to implement distributed architecture and on-demand deployment. The components of A-Tune can be deployed separately. Lightweight component deployment has little impact on services and avoids installing too many dependencies to reduce the system load.

      This document describes only a common deployment mode: deploying the client and server on the same node and deploying the engine module on another node. For details about other deployment modes, contact A-Tune developers.

      Deployment relationship

      Configuration File

      In distributed deployment mode, you need to configure the write the IP address and port number of the engine in the configuration file so that other components can access the engine component through the IP address.

      1. Modify the /etc/atuned/atuned.cnf file on the server node.

        • Change the values of engine_host and engine_port in line 34 to the IP address and port number of the engine node. For the deployment in the preceding figure, the values are engine_host = 192.168.0.1 engine_port = 3838.
        • Change the values of rest_tls and engine_tls in lines 49 and 55 to false. Otherwise, you need to apply for and configure certificates. You do not need to configure SSL certificates in the test environment. However, you need to configure SSL certificates in the production environment to prevent security risks.
      2. Modify the**/etc/atuned/engine.cnf** file on the engine node.

        • Change the values of engine_host and engine_port in lines 17 and 18 to the IP address and port number of the engine node. For the deployment in the preceding figure, the value are engine_host = 192.168.0.1 engine_port = 3838.
        • Change the value of engine_tls in line 22 to false.
      3. After modifying the configuration file, restart the service for the modification to take effect.

        • Run the systemctl restart atuned command on the server node.
        • Run the systemctl restart atune-engine command on the engine node.
      4. (Optional) Run the tuning command in the A-Tune/examples/tuning/compress folder.

        • For details, see A-Tune/examples/tuning/compress/README.
        • Run the atune-adm tuning --project compress --detail compress_client.yaml command.
        • This step is to check whether the distributed deployment is successful.

      Precautions

      1. This document does not describe how to configure the authentication certificates. You can set rest_tls or engine_tls in the atuned.cnf and engine.cnf files to false if necessary.
      2. After modifying the configuration file, restart the service. Otherwise, the modification does not take effect.
      3. Do not enable the proxy when using A-Tune.
      4. The disk and network items of the [system] section in the atuned.cnf file need to be modified. For details about how to modify the items, see the A-Tune User Guide.

      Example

      atuned.cnf

      # ......

      # the tuning optimizer host and port, start by engine.service
      # if engine_host is same as rest_host, two ports cannot be same
      # the port can be set between 0 to 65535 which not be used
      engine_host = 192.168.0.1
      engine_port = 3838

      # ......


      engine.cnf

      [server]
      # the tuning optimizer host and port, start by engine.service
      # if engine_host is same as rest_host, two ports cannot be same
      # the port can be set between 0 to 65535 which not be used
      engine_host = 192.168.0.1
      engine_port = 3838


      Cluster Deployment

      Purpose of Cluster Deployment

      To support fast tuning in multi-node scenarios, A-Tune supports dynamic tuning of parameter settings on multiple nodes at the same time. In this way, you do not need to tune each node separately, improving tuning efficiency. Cluster deployment mode consists of one master node and several agent nodes. The client and server are deployed on the master node to receive commands and interact with the engine. Other nodes receive instructions from the master node and configure the parameters of the current node.

      Deployment relationship

      In the preceding figure, the client and server are deployed on the node whose IP address is 192.168.0.0. Project files are stored on this node. Other nodes do not contain project files. The master node communicates with the agent nodes through TCP. Therefore, you need to modify the configuration file.

      Modifications to atuned.cnf

      1. Set the value of protocol to tcp.
      2. Set the value of address to the IP address of the current node.
      3. Set the value of connect to the IP addresses of all nodes. The first IP address is the IP address of the master node, and the subsequent IP addresses are the IP addresses of agent nodes. Use commas (,) to separate the IP addresses.
      4. During debugging, you can set rest_tls and engine_tls to false.
      5. Perform the same modification on the atuned.cnf files of all the master and agent nodes.

      Precautions

      1. The values of engine_host and engine_port must be consistent in the engine.cnf file and the atuned.cnf file on the server.
      2. This document does not describe how to configure the authentication certificates. You can set rest_tls or engine_tls in the atuned.cnf and engine.cnf files to false if necessary.
      3. After modifying the configuration file, restart the service. Otherwise, the modification does not take effect.
      4. Do not enable the proxy when using A-Tune.

      Example

      atuned.cnf

      # ......

      [server]
      # the protocol grpc server running on
      # ranges: unix or tcp
      protocol = tcp

      # the address that the grpc server to bind to
      # default is unix socket /var/run/atuned/atuned.sock
      # ranges: /var/run/atuned/atuned.sock or ip address
      address = 192.168.0.0

      # the atune nodes in cluster mode, separated by commas
      # it is valid when protocol is tcp
      connect = 192.168.0.0,192.168.0.1,192.168.0.2,192.168.0.3

      # the atuned grpc listening port
      # the port can be set between 0 to 65535 which not be used
      port = 60001

      # the rest service listening port, default is 8383
      # the port can be set between 0 to 65535 which not be used
      rest_host = localhost
      rest_port = 8383

      # the tuning optimizer host and port, start by engine.service
      # if engine_host is same as rest_host, two ports cannot be same
      # the port can be set between 0 to 65535 which not be used
      engine_host = 192.168.1.1
      engine_port = 3838

      # ......


      engine.cnf

      [server]
      # the tuning optimizer host and port, start by engine.service
      # if engine_host is same as rest_host, two ports cannot be same
      # the port can be set between 0 to 65535 which not be used
      engine_host = 192.168.1.1
      engine_port = 3838


      Note: For details about the engine.cnf file, see the configuration file for distributed deployment.

      Bug Catching

      Buggy Content

      Bug Description

      Submit As Issue

      It's a little complicated....

      I'd like to ask someone.

      PR

      Just a small problem.

      I can fix it online!

      Bug Type
      Specifications and Common Mistakes

      ● Misspellings or punctuation mistakes;

      ● Incorrect links, empty cells, or wrong formats;

      ● Chinese characters in English context;

      ● Minor inconsistencies between the UI and descriptions;

      ● Low writing fluency that does not affect understanding;

      ● Incorrect version numbers, including software package names and version numbers on the UI.

      Usability

      ● Incorrect or missing key steps;

      ● Missing prerequisites or precautions;

      ● Ambiguous figures, tables, or texts;

      ● Unclear logic, such as missing classifications, items, and steps.

      Correctness

      ● Technical principles, function descriptions, or specifications inconsistent with those of the software;

      ● Incorrect schematic or architecture diagrams;

      ● Incorrect commands or command parameters;

      ● Incorrect code;

      ● Commands inconsistent with the functions;

      ● Wrong screenshots.

      Risk Warnings

      ● Lack of risk warnings for operations that may damage the system or important data.

      Content Compliance

      ● Contents that may violate applicable laws and regulations or geo-cultural context-sensitive words and expressions;

      ● Copyright infringement.

      How satisfied are you with this document

      Not satisfied at all
      Very satisfied
      Submit
      Click to create an issue. An issue template will be automatically generated based on your feedback.
      Bug Catching
      编组 3备份
