sysmonitor

Introduction

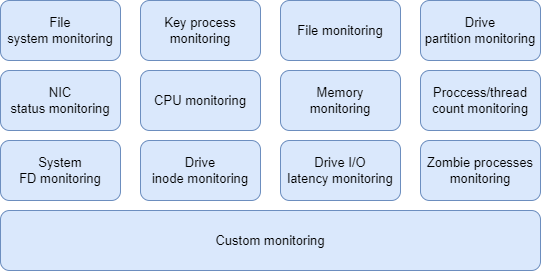

The system monitor (sysmonitor) daemon monitors exceptions that occur during OS running and records the exceptions in the system log file /var/log/sysmonitor.log. sysmonitor runs as a service. You can run the systemctl start|stop|restart|reload sysmonitor command to start, stop, restart, and reload the service. You are advised to deploy sysmonitor to locate system exceptions.

Precautions

• sysmonitor cannot run concurrently.
• Ensure that all configuration files are valid. Otherwise, the monitoring service may be abnormal.
• The root privilege is required for sysmonitor service operations, configuration file modification, and log query. The root user has the highest permission in the system. When performing operations as the root user, follow the operation guide to avoid system management and security risks caused by improper operations.

Configuration Overview

Configuration file /etc/sysconfig/sysmonitor of sysmonitor defines the monitoring period of each monitoring item and specifies whether to enable monitoring. Spaces are not allowed between the configuration item, equal sign (=), and configuration value, for example, PROCESS_MONITOR="on".

Configuration description

• After modifying the /etc/sysconfig/sysmonitor configuration file, restart the sysmonitor service for the configurations to take effect.
• If an item is not configured in the configuration file, it is enabled by default.
• After the internal thread self-healing function is enabled, if a sub-thread of the monitoring item is suspended and the number of checks in a period exceeds the configured value, the sysmonitor service is restarted for restoration. The configuration is reloaded. The configured key process monitoring and customized monitoring are restarted. If this function affects user experience, you can disable it.

Command Reference

• Start sysmonitor.

systemctl start sysmonitor

• Stop sysmonitor.

systemctl stop sysmonitor

• Restart sysmonitor.

systemctl restart sysmonitor

• Reload sysmonitor for the modified configurations to take effect.

systemctl reload sysmonitor

Monitoring Logs

By default, logs is split and dumped to prevent the sysmonitor.log file from getting to large. Logs are dumped to a drive directory. In this way, a certain number of logs can be retained.

The configuration file is /etc/rsyslog.d/sysmonitor.conf. Because this rsyslog configuration file is added, after sysmonitor is installed for the first time, you need to restart the rsyslog service to make the sysmonitor log configuration take effect.

$template sysmonitorformat,"%TIMESTAMP:::date-rfc3339%|%syslogseverity-text%|%msg%\n"

$outchannel sysmonitor, /var/log/sysmonitor.log, 2097152, /usr/libexec/sysmonitor/sysmonitor_log_dump.sh
if ($programname == 'sysmonitor' and $syslogseverity <= 6) then {
:omfile:$sysmonitor;sysmonitorformat
stop
}

if ($msg contains 'Time has been changed') then {
:omfile:$sysmonitor;sysmonitorformat
stop
}

if ($programname == 'sysmonitor' and $syslogseverity > 6) then {
/dev/null
stop
}

ext3/ext4 Filesystem Monitoring

Introduction

A fault in the filesystem may trigger I/O operation errors, which further cause OS faults. File system fault detection can detect the faults in real time so that system administrators or users can rectify them in a timely manner.

Configuration File Description

None

Exception Logs

For a file system to which the errors=remount-ro mounting option is added, if the ext3 or ext4 file system is faulty, the following exception information is recorded in the sysmonitor.log file:

info|sysmonitor[127]: loop0 filesystem error. Remount filesystem read-only.

In other exception scenarios, if the ext3 or ext4 file system is faulty, the following exception information is recorded in the sysmonitor.log file:

info|sysmonitor[127]: fs_monitor_ext3_4: loop0 filesystem error. flag is 1879113728.

Key Processing Monitoring

Introduction

Key processes in the system are periodically monitored. When a key process exits abnormally, sysmonitor automatically attempts to recover the key process. If the recovery fails, alarms can be reported. The system administrator can be promptly notified of the abnormal process exit event and whether the process is restarted. Fault locating personnel can locate the time when the process exits abnormally from logs.

Configuration File Description

The configuration file directory is /etc/sysmonitor/process. Each process or module corresponds to a configuration file.

USER=root
NAME=irqbalance
RECOVER_COMMAND=systemctl restart irqbalance
MONITOR_COMMAND=systemctl status irqbalance
STOP_COMMAND=systemctl stop irqbalance

The configuration items are as follows:

• After modifying the configuration file for monitoring key processes, run systemctl reload sysmonitor. The new configuration takes effect after a monitoring period.
• The recovery command and monitoring command must not block. Otherwise, the monitoring thread of the key process becomes abnormal.
• When the recovery command is executed for more than 90 seconds, the stopping command is executed to stop the process.
• If the recovery command is empty or not configured, the monitoring command does not attempt to recover the key process when detecting that the key process is abnormal.
• If a key process is abnormal and fails to be started for three consecutive times, the process is started based on the period specified by PROCESS_RECALL_PERIOD in the global configuration file.
• If the monitored process is not a daemon process, MONITOR_COMMAND is mandatory.
• If the configured key service does not exist in the current system, the monitoring does not take effect and the corresponding information is printed in the log. If a fatal error occurs in other configuration items, the default configuration is used and no error is reported.
• The permission on the configuration file is 600. You are advised to set the monitoring item to the service type of systemd (for example, MONITOR_COMMAND=systemctl status irqbalance). If a process is monitored, ensure that the NAME field is an absolute path.
• The restart, reload, and stop of sysmonitor do not affect the monitored processes or services.
• If USE_CMD_ALARM is set to on, you must ensure the validiy of ALARM_COMMAND and ALARM_RECOVER_COMMAND. If ALARM_COMMAND or ALARM_RECOVER_COMMAND is empty or not configured, no alarm is reported.
• The security of user-defined commands, such as the monitoring, recovery, stopping, alarm reporting, and alarm recovery commands, is ensured by users. Commands are executed by the user root. You are advised to set the script command permission to be used only by the user root to prevent privilege escalation for common users.
• If the length of the monitoring command cannot be greater than 200 characters. Otherwise, the process monitoring fails to be added.
• When the recovery command is set to a systemd service restart command (for example, RECOVER_COMMAND=systemctl restart irqbalance), check whether the recovery command conflicts with the open source systemd service recovery mechanism. Otherwise, the behavior of key processes may be affected after exceptions occur.
• The processes started by the sysmonitor service are in the same cgroup as the sysmonitor service, and resources cannot be restricted separately. Therefore, you are advised to use the open source systemd mechanism to recover the processes.

Exception Logs

• RECOVER_COMMAND configured

  If a process or module exception is detected, the following exception information is recorded in the /var/log/sysmonitor.log file:

  info|sysmonitor[127]: irqbalance is abnormal, check cmd return 1, use "systemctl restart irqbalance" to recover


  If the process or module recovers, the following information is recorded in the /var/log/sysmonitor.log file:

  info|sysmonitor[127]: irqbalance is recovered


• RECOVER_COMMAND not configured

  If a process or module exception is detected, the following exception information is recorded in the /var/log/sysmonitor.log file:

  info|sysmonitor[127]: irqbalance is abnormal, check cmd return 1, recover cmd is null, will not recover


  If the process or module recovers, the following information is recorded in the /var/log/sysmonitor.log file:

  info|sysmonitor[127]: irqbalance is recovered


File Monitoring

Introduction

If key system files are deleted accidentally, the system may run abnormally or even break down. Through file monitoring, you can learn about the deletion of key files or the addition of malicious files in the system in a timely manner, so that administrators and users can learn and rectify faults in a timely manner.

Configuration File Description

The configuration file is /etc/sysmonitor/file. Each monitoring configuration item occupies a line. A monitoring configuration item contains the file (directory) and event to be monitored. The file (directory) to be monitored is an absolute path. The file (directory) to be monitored and the event to be monitored are separated by one or more spaces.

The file monitoring configuration items can be added to the /etc/sysmonitor/file.d directory. The configuration method is the same as that of the /etc/sysmonitor/file directory.

• Due to the log length limit, it is recommended that the absolute path of a file or directory be less than 223 characters. Otherwise, the printed logs may be incomplete.

• Ensure that the path of the monitored file is correct. If the configured file does not exist or the path is incorrect, the file cannot be monitored.

• Due to the path length limit of the system, the absolute path of the monitored file or directory must be less than 4096 characters.

• Directories and regular files can be monitored. /proc, /proc/*, /dev, /dev/*, /sys, /sys/*, pipe files, or socket files cannot be monitored.

• Only deletion events can be monitored in /var/log and /var/log/*.

• If multiple identical paths exist in the configuration file, the first valid configuration takes effect. In the log file, you can see messages indicating that the identical paths are ignored.

• Soft links cannot be monitored. When a hard link file deletion event is configured, the event is printed only after the file and all its hard links are deleted.

• When a monitored event occurs after the file monitoring is successfully added, the monitoring log records the absolute path of the configured file.

• Currently, directories cannot be monitored recursively. The configured directory is monitored but not its subdirectories.

• The events to be monitored are configured using bitmaps as follows.

  -------------------------------
  | 11~32   | 10   | 9   |  1~8 |
  -------------------------------

Each bit in the event bitmap represents an event. If bit n is set to 1, the event corresponding to bit n is monitored. The hexadecimal number corresponding to the monitoring bitmap is the event monitoring item written to the configuration file.

• After modifying the file monitoring configuration file, run systemctl reload sysmonitor. The new configuration takes effect within 60 seconds.
• Strictly follow the preceding rules to configure events to be monitored. If the configuration is incorrect, the events cannot be monitored. If an event to be monitored in the configuration item is empty, only the deletion event is monitored by default, that is, 0x200.
• After a file or directory is deleted, the deletion event is reported only when all processes that open the file stop.
• If a monitored a is modified by vi or sed, "File XXX may have been changed" is recorded in the monitoring log.
• Currently, file addition and deletion events can be monitored, that is, the ninth and tenth bits take effect. Other bits are reserved and do not take effect. If a reserved bit is configured, the monitoring log displays a message indicating that the event monitoring is incorrectly configured.

Example

Monitor the subdirectory addition and deletion events in /home. The lower 12-bit bitmap is 001100000000. The configuration is as follows:

/home 0x300

Monitor the file deletion events of /etc/ssh/sshd_config. The lower 12-bit bitmap is 001000000000. The configuration is as follows:

/etc/sshd/sshd_config 0x200

Exception Logs

If a configured event occurs to the monitored file, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]: 1 events queued
info|sysmonitor[127]: 1th events handled
info|sysmonitor[127]: Subfile "111" under "/home" was added.

Drive Partition Monitoring

Introduction

The system periodically monitors the drive partitions mounted to the system. When the drive partition usage is greater than or equal to the configured alarm threshold, the system records a drive space alarm. When the drive partition usage falls below the configured alarm recovery threshold, a drive space recovery alarm is recorded.

Configuration File Description

The configuration file is /etc/sysmonitor/disk.

DISK="/var/log"  ALARM="90" RESUME="80"
DISK="/" ALARM="95" RESUME="85"

• After modifying the configuration file for drive space monitoring, run systemctl reload sysmonitor. The new configuration takes effect after a monitoring period.
• If a mount directory is configured repeatedly, the last configuration item takes effect.
• The value of ALARM must be greater than that of RESUME.
• Only the mount point or the drive partition of the mount point can be monitored.
• When the CPU usage and I/O usage are high, the df command execution may time out. As a result, the drive usage cannot be obtained.
• If a drive partition is mounted to multiple mount points, an alarm is reported for each mount point.

Exception Logs

If a drive space alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

warning|sysmonitor[127]: report disk alarm, /var/log used:90% alarm:90%
info|sysmonitor[127]: report disk recovered, /var/log used:4% resume:10%

NIC Status Monitoring

Introduction

During system running, the NIC status or IP address may change due to human factors or exceptions. You can monitor the NIC status and IP address changes to detect exceptions in a timely manner and locate exception causes.

Configuration File Description

The configuration file is /etc/sysmonitor/network.

#dev event
eth1 UP

The following table describes the configuration items.

• After modifying the configuration file for NIC monitoring, run systemctl reload sysmonitor for the new configuration to take effect.
• The UP and DOWN status of virtual NICs cannot be monitored.
• Ensure that each line in the NIC monitoring configuration file contains less than 4096 characters. Otherwise, a configuration error message will be recorded in the monitoring log.
• By default, all events of all NICs are monitored. That is, if no NIC monitoring is configured, the UP, DOWN, NEWADDR, and DELADDR events of all NICs are monitored.
• If a NIC is configured but no event is configured, all events of the NIC are monitored by default.
• The events of route addition can be recorded five times per second. You can change the number of times by setting NET_RATE_LIMIT_BURST in /etc/sysconfig/sysmonitor.

Exception Logs

If a NIC event is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]: lo: ip[::1] prefixlen[128] is added, comm: (ostnamed)[1046], parent comm: syst    emd[1]
info|sysmonitor[127]: lo: device is up, comm: (ostnamed)[1046], parent comm: systemd[1]

If a route event is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[881]: Fib4 replace table=255 192.168.122.255/32, comm: daemon-init[1724], parent com    m: systemd[1]
info|sysmonitor[881]: Fib4 replace table=254 192.168.122.0/24, comm: daemon-init[1724], parent comm:     systemd[1]
info|sysmonitor[881]: Fib4 replace table=255 192.168.122.0/32, comm: daemon-init[1724], parent comm:     systemd[1]
info|sysmonitor[881]: Fib6 replace fe80::5054:ff:fef6:b73e/128, comm: kworker/1:3[209], parent comm:     kthreadd[2]

CPU Monitoring

Introduction

The system monitors the global CPU usage or the CPU usage in a specified domain. When the CPU usage exceeds the configured alarm threshold, the system runs the configured log collection command.

Configuration File Description

The configuration file is /etc/sysmonitor/cpu.

When the global CPU usage of the system is monitored, an example of the configuration file is as follows:

# cpu usage alarm percent
ALARM="90"

# cpu usage alarm resume percent
RESUME="80"

# monitor period (second)
MONITOR_PERIOD="60"

# stat period (second)
STAT_PERIOD="300"

# command executed when cpu usage exceeds alarm percent
REPORT_COMMAND=""

When the CPU usage of a specific domain is monitored, an example of the configuration file is as follows:

# monitor period (second)
MONITOR_PERIOD="60"

# stat period (second)
STAT_PERIOD="300"

DOMAIN="0,1"  ALARM="90" RESUME="80"
DOMAIN="2,3"  ALARM="50" RESUME="40"

# command executed when cpu usage exceeds alarm percent
REPORT_COMMAND=""

• After modifying the configuration file for CPU monitoring, run systemctl reload sysmonitor. The new configuration takes effect after a monitoring period.
• The value of ALARM must be greater than that of RESUME.
• After the CPU domain monitoring is configured, the global average CPU usage of the system is not monitored, and the separately configured ALARM and RESUME values do not take effect.
• If the configuration of a monitoring domain is invalid, CPU monitoring is not performed at all.
• All CPUs configured in DOMAIN must be online. Otherwise, the domain cannot be monitored.
• The command of REPORT_COMMAND cannot contain insecure characters such as &, ;, and >, and the total length cannot exceed 159 characters. Otherwise, the command cannot be executed.
• Ensure the security and validity of REPORT_COMMAND. sysmonitor is responsible only for running the command as the root user.
• REPORT_COMMAND must not block. When the execution time of the command exceeds 60s, the sysmonitor forcibly stops the execution.
• Even if the CPU usage of multiple domains exceeds the threshold in a monitoring period, REPORT_COMMAND is executed only once.

Exception Logs

If a global CPU usage alarm is detected or cleared and the log collection command is configured, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]: CPU usage alarm: 91.3%
info|sysmonitor[127]: cpu monitor: execute REPORT_COMMAND[sysmoniotrcpu] sucessfully
info|sysmonitor[127]: CPU usage resume 70.1%

If a domain average CPU usage alarm is detected or cleared and the log collection command is configured, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]: CPU 1,2,3 usage alarm: 91.3%
info|sysmonitor[127]: cpu monitor: execute REPORT_COMMAND[sysmoniotrcpu] sucessfully
info|sysmonitor[127]: CPU 1,2,3 usage resume 70.1%

Memory Monitoring

Introduction

Monitors the system memory usage and records logs when the memory usage exceeds or falls below the threshold.

Configuration File Description

The configuration file is /etc/sysmonitor/memory.

# memory usage alarm percent
ALARM="90"

# memory usage alarm resume percent
RESUME="80"

# monitor period(second)
PERIOD="60"

Configuration Item Description

• After modifying the configuration file for memory monitoring, run systemctl reload sysmonitor. The new configuration takes effect after a monitoring period.
• The value of ALARM must be greater than that of RESUME.
• The average memory usage in three monitoring periods is used to determine whether an alarm is reported or cleared.

Exception Logs

If a memory alarm is detected, sysmonitor obtains the /proc/meminfo information and prints the information in the /var/log/sysmonitor.log file. The information is as follows:

info|sysmonitor[127]: memory usage alarm: 90%
info|sysmonitor[127]:---------------show /proc/meminfo: ---------------
info|sysmonitor[127]:MemTotal: 3496388 kB
info|sysmonitor[127]:MemFree: 2738100 kB
info|sysmonitor[127]:MemAvailable: 2901888 kB
info|sysmonitor[127]:Buffers: 165064 kB
info|sysmonitor[127]:Cached: 282360 kB
info|sysmonitor[127]:SwapCached: 4492 kB
......
info|sysmonitor[127]:---------------show_memory_info end. ---------------

If the following information is printed, sysmonitor runs echo m > /proc/sysrq-trigger to export memory allocation information. You can view the information in /var/log/messages.

info|sysmonitor[127]: sysrq show memory ifno in message.

When the alarm is recovered, the following information is displayed:

info|sysmonitor[127]: memory usage resume: 4.6%

Process and Thread Monitoring

Introduction

Monitors the number of processes and threads. When the total number of processes or threads exceeds or falls below the threshold, a log is recorded or an alarm is reported.

Configuration File Description

The configuration file is /etc/sysmonitor/pscnt.

# number of processes(include threads) when alarm occur
ALARM="1600"

# number of processes(include threads) when alarm resume
RESUME="1500"

# monitor period(second)
PERIOD="60"

# process count usage alarm percent
ALARM_RATIO="90"

# process count usage resume percent
RESUME_RATIO="80"

# print top process info with largest num of threads when threads alarm
# (range: 0-1024, default: 10, monitor for thread off:0)
SHOW_TOP_PROC_NUM="10"

• After modifying the configuration file for process count monitoring, run systemctl reload sysmonitor. The new configuration takes effect after a monitoring period.
• The value of ALARM must be greater than that of RESUME.
• The process count alarm threshold is the larger between ALARM and ALARM_RATIO in /proc/sys/kernel/pid_max. The alarm recovery threshold is the larger of RESUME and RESUME_RATIO in /proc/sys/kernel/pid_max.
• The thread count alarm threshold is the larger between ALARM and ALARM_RATIO in /proc/sys/kernel/threads-max. The alarm recovery threshold is the larger of RESUME and RESUME_RATIO in /proc/sys/kernel/threads-max.
• The value of SHOW_TOP_PROC_NUM ranges from 0 to 1024. 0 indicates that thread monitoring is disabled. A larger value, for example, 1024, indicates that thread alarms will be generated in the environment. If the alarm threshold is high, the performance is affected. You are advised to set this parameter to the default value 10 or a smaller value. If the impact is huge, you are advised to set this parameter to 0 to disable thread monitoring.
• The value of PSCNT_MONITOR in /etc/sysconfig/sysmonitor and the value of SHOW_TOP_PROC_NUM in /etc/sysmonitor/pscnt determine whether thread monitoring is enabled.
  • If PSCNT_MONITOR is on and SHOW_TOP_PROC_NUM is set to a valid value, thread monitoring is enabled.
  • If PSCNT_MONITOR is on and SHOW_TOP_PROC_NUM is 0, thread monitoring is disabled.
  • If PSCNT_MONITOR is off, thread monitoring is disabled.
• When a process count alarm is generated, the system FD usage information and memory information (/proc/meminfo) are printed.
• When a thread count alarm is generated, the total number of threads, top process information, number of processes in the current environment, number of system FDs, and memory information (/proc/meminfo) are printed.
• If system resources are insufficient before a monitoring period ends, for example, the thread count exceeds the maximum number allowed, the monitoring cannot run properly due to resource limitation. As a result, the alarm cannot be generated.

Exception Logs

If a process count alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]:---------------process count alarm start: ---------------
info|sysmonitor[127]: process count alarm:1657
info|sysmonitor[127]: process count alarm, show sys fd count: 2592
info|sysmonitor[127]: process count alarm, show mem info
info|sysmonitor[127]:---------------show /proc/meminfo: ---------------
info|sysmonitor[127]:MemTotal: 3496388 kB
info|sysmonitor[127]:MemFree: 2738100 kB
info|sysmonitor[127]:MemAvailable: 2901888 kB
info|sysmonitor[127]:Buffers: 165064 kB
info|sysmonitor[127]:Cached: 282360 kB
info|sysmonitor[127]:SwapCached: 4492 kB
......
info|sysmonitor[127]:---------------show_memory_info end. ---------------
info|sysmonitor[127]:---------------process count alarm end: ---------------

If a process count recovery alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]: process count resume: 1200

If a thread count alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]:---------------threads count alarm start: ---------------
info|sysmonitor[127]:threads count alarm: 273
info|sysmonitor[127]:open threads most 10 processes is [top1:pid=1756900,openthreadsnum=13,cmd=/usr/bin/sysmonitor --daemon]
info|sysmonitor[127]:open threads most 10 processes is [top2:pid=3130,openthreadsnum=13,cmd=/usr/lib/gassproxy -D]
.....
info|sysmonitor[127]:---------------threads count alarm end. ---------------

System FD Count Monitoring

Introduction

Monitors the number of system FDs. When the total number of system FDs exceeds or is less than the threshold, a log is recorded.

Configuration File Description

The configuration file is /etc/sysmonitor/sys_fd_conf.

# system fd usage alarm percent
SYS_FD_ALARM="80"
# system fd usage alarm resume percent
SYS_FD_RESUME="70"
# monitor period (second)
SYS_FD_PERIOD="600"

Configuration items:

• After modifying the configuration file for FD count monitoring, run systemctl reload sysmonitor. The new configuration takes effect after a monitoring period.
• The value of SYS_FD_ALARM must be greater than that of SYS_FD_RESUME. If the value is invalid, the default value is used and a log is recorded.

Exception Logs

An FD count alarm is recorded in the monitoring logs when detected. The following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]: sys fd count alarm: 259296

When a system FD usage alarm is generated, the top three processes that use the most FDs are printed.

info|sysmonitor[127]:open fd most three processes is:[top1:pid=23233,openfdnum=5000,cmd=/home/openfile]
info|sysmonitor[127]:open fd most three processes is:[top2:pid=23267,openfdnum=5000,cmd=/home/openfile]
info|sysmonitor[127]:open fd most three processes is:[top3:pid=30144,openfdnum=5000,cmd=/home/openfile]

Drive Inode Monitoring

Introduction

Periodically monitors the inodes of mounted drive partitions. When the drive partition inode usage is greater than or equal to the configured alarm threshold, the system records a drive inode alarm. When the drive inode usage falls below the configured alarm recovery threshold, a drive inode recovery alarm is recorded.

Configuration File Description

The configuration file is /etc/sysmonitor/inode.

DISK="/"
DISK="/var/log"

• After modifying the configuration file for drive inode monitoring, run systemctl reload sysmonitor. The new configuration takes effect after a monitoring period.
• If a mount directory is configured repeatedly, the last configuration item takes effect.
• The value of ALARM must be greater than that of RESUME.
• Only the mount point or the drive partition of the mount point can be monitored.
• When the CPU usage and I/O usage are high, the df command execution may time out. As a result, the drive inode usage cannot be obtained.
• If a drive partition is mounted to multiple mount points, an alarm is reported for each mount point.

Exception Logs

If a drive inode alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[4570]:report disk inode alarm, /var/log used:90% alarm:90%
info|sysmonitor[4570]:report disk inode recovered, /var/log used:79% alarm:80%

Local Drive I/O Latency Monitoring

Introduction

Reads the local drive I/O latency data every 5 seconds and collects statistics on 60 groups of data every 5 minutes. If more than 30 groups of data are greater than the configured maximum I/O latency, the system records a log indicating excessive drive I/O latency.

Configuration File Description

The configuration file is /etc/sysmonitor/iodelay.

DELAY_VALUE="500"

Exception Logs

If a drive I/O latency alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]:local disk sda IO delay is too large, I/O delay threshold is 70.
info|sysmonitor[127]:disk is sda, io delay data: 71 72 75 87 99 29 78 ......

If a drive I/O latency recovery alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]:local disk sda IO delay is normal, I/O delay threshold is 70.
info|sysmonitor[127]:disk is sda, io delay data: 11 22 35 8 9 29 38 ......

Zombie Process Monitoring

Introduction

Monitors the number of zombie processes in the system. If the number is greater than the alarm threshold, an alarm log is recorded. When the number drops lower than the recovery threshold, a recovery alarm is reported.

Configuration File Description

The configuration file is /etc/sysmonitor/zombie.

# Ceiling zombie process counts of alarm
ALARM="500"

# Floor zombie process counts of resume
RESUME="400"

# Periodic (second)
PERIOD="600"

Exception Logs

If a zombie process count alarm is detected, the following information is displayed in the /var/log/sysmonitor.log file:

info|sysmonitor[127]: zombie process count alarm: 600
info|sysmonitor[127]: zombie process count resume: 100

Custom Monitoring

Introduction

You can customize monitoring items. The monitoring framework reads the content of the configuration file, parses the monitoring attributes, and calls the monitoring actions to be performed. The monitoring module provides only the monitoring framework. It is not aware of what users are monitoring or how to monitor, and does not report alarms.

Configuration File Description

The configuration files are stored in /etc/sysmonitor.d/. Each process or module corresponds to a configuration file.

MONITOR_SWITCH="on"
TYPE="periodic"
EXECSTART="/usr/sbin/iomonitor_daemon"
PERIOD="1800"

• The absolute path of the configuration file or environment variable file cannot contain more than 127 characters. The environment variable file path cannot be a soft link path.
• The length of the EXECSTART command cannot exceed 159 characters. No space is allowed in the key field.
• The execution of the periodic monitoring command cannot time out. Otherwise, the custom monitoring framework will be affected.
• Currently, a maximum of 256 environment variables can be configured.
• The custom monitoring of the daemon type checks whether the reload command is delivered or whether the daemon process exits abnormally every 10 seconds. If the reload command is delivered, the new configuration is loaded 10 seconds later. If a daemon process exits abnormally, the daemon process is restarted 10 seconds later.
• If the content of the ENVIROMENTFILE file changes, for example, an environment variable is added or the environment variable value changes, you need to restart the sysmonitor service for the new environment variable to take effect.
• You are advised to set the permission on the configuration files in the /etc/sysmonitor.d/ directory to 600. If EXECSTART is only an executable file, you are advised to set the permission on the executable file to 550.
• After a daemon process exits abnormally, sysmonitor reloads the configuration file of the daemon process.

Exception Logs

If a monitoring item of the daemon type exits abnormally, the /var/log/sysmonitor.log file records the following information:

info|sysmonitor[127]: custom daemon monitor: child process[11609] name unetwork_alarm exit code[127],[1] times.
