LVM Label Corruption ​

Symptom ​

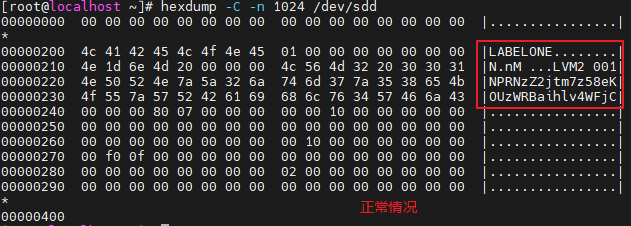

The pvs utility fails to show physical volume details, and blkid cannot recognize the LVM2_member label. Expected output:

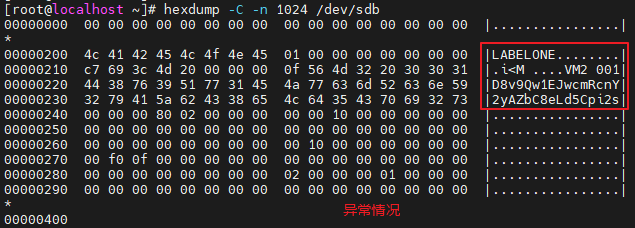

Error state:

Possible Causes ​

Analysis of the metadata region with hexdump confirms label corruption.

Solution ​

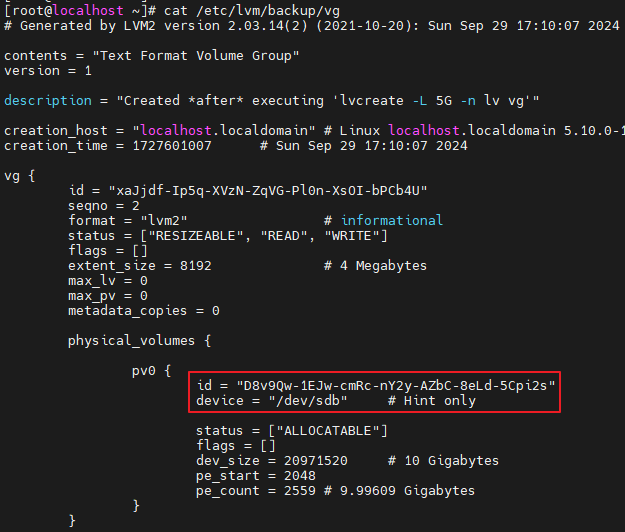

1. Check the backup files in /etc/lvm/backup to find the PV UUID, then restore using pvcreate:



   Command:

   shell

   pvcreate --uuid D8v9Qw-1EJw-cmRc-nY2y-AZbC-8eLd-5Cpi2s --restorefile /etc/lvm/backup/vg /dev/sdb

2. Restore the volume group configuration:

   shell

   vgcfgrestore --file /etc/lvm/backup/vg vg

3. Complete the recovery by activating the volume group:

   shell

   vgchange -ay vg
